HP Designjet 1050c Service Manual

Removal and Installation
8-64
HP DesignJets 1050C and 1055CM Printers Service Manual
Paper Entry Assembly
Refer to Figure 69 to Figure 71.
Removal
WARNING Switch off the printer and remove the power cord.
1. 1.Remove the following:
1. "Left Hand Cover" see page 8-13.
2. "Left Hand Trim" see page 8-18.
3. "Ink Supply System Assembly" see page 8-19.
4. "Clutch Assembly and Miscellaneous Parts" see page 8-21.
2. Remove the T-15 screws (item 2) securing the entry roller (item 1)
to the left hand chassis (refer to Figure 69). Pull out the left side of
the entry roller first and then remove completely.

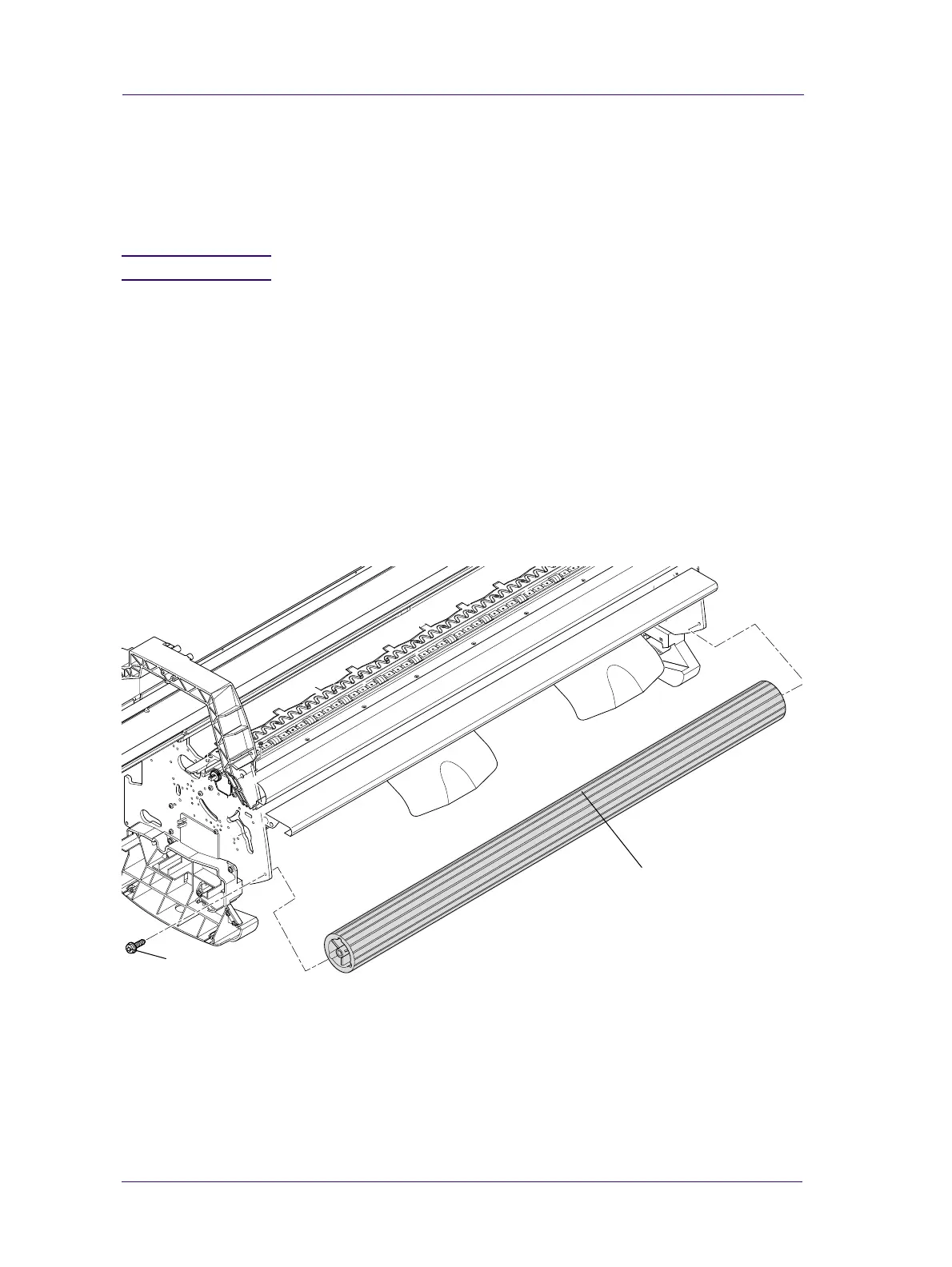

Figure 69: Entry Roller
C607423
2
1

HP Designjet 1050c Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Resolution	1200 x 600 dpi
Number of Ink Cartridges	4 (Cyan, Magenta, Yellow, Black)
Media Types Supported	Coated, glossy, plain, film, vellum, translucent bond
Maximum Media Size	36 in (914 mm) roll
Ink Types	Dye-based
Connectivity	Parallel
Memory	64 MB
Hard Drive	Not available
Media Sizes Supported	A4, A3, A2, A1, A0, B4, B3, B2, B1, B0
Roll Width	24 in, 36 in
Operating Systems Supported	Windows 2000, XP
Power Requirements	100 to 240 VAC (+/- 10%), 50/60 Hz
