HP Designjet 1050c Service Manual

Removal and Installation
8-66
HP DesignJets 1050C and 1055CM Printers Service Manual
Roller Guide
Refer to Figure 72 to Figure 75.
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the following:
1. "Left Hand Cover" see page 8-13.
2. "Right Hand Cover" see page 8-4.
3. "Electronics Module" see page 8-25.
4. "Ink Supply System Assembly" see page 8-19.
5. "Service Station Assembly" see page 8-8.
6. "Paper-axis Motor Assembly" see page 8-12.
NOTE Working from the rear of the printer.
2. Remove the two T-15 screws (item 1) securing the left hand rear
platen mount (item 2) (refer to Figure 72)
3. Remove the two T-15 screws (item 3) securing the right hand rear
platen mount (item 4) (refer to Figure 72).

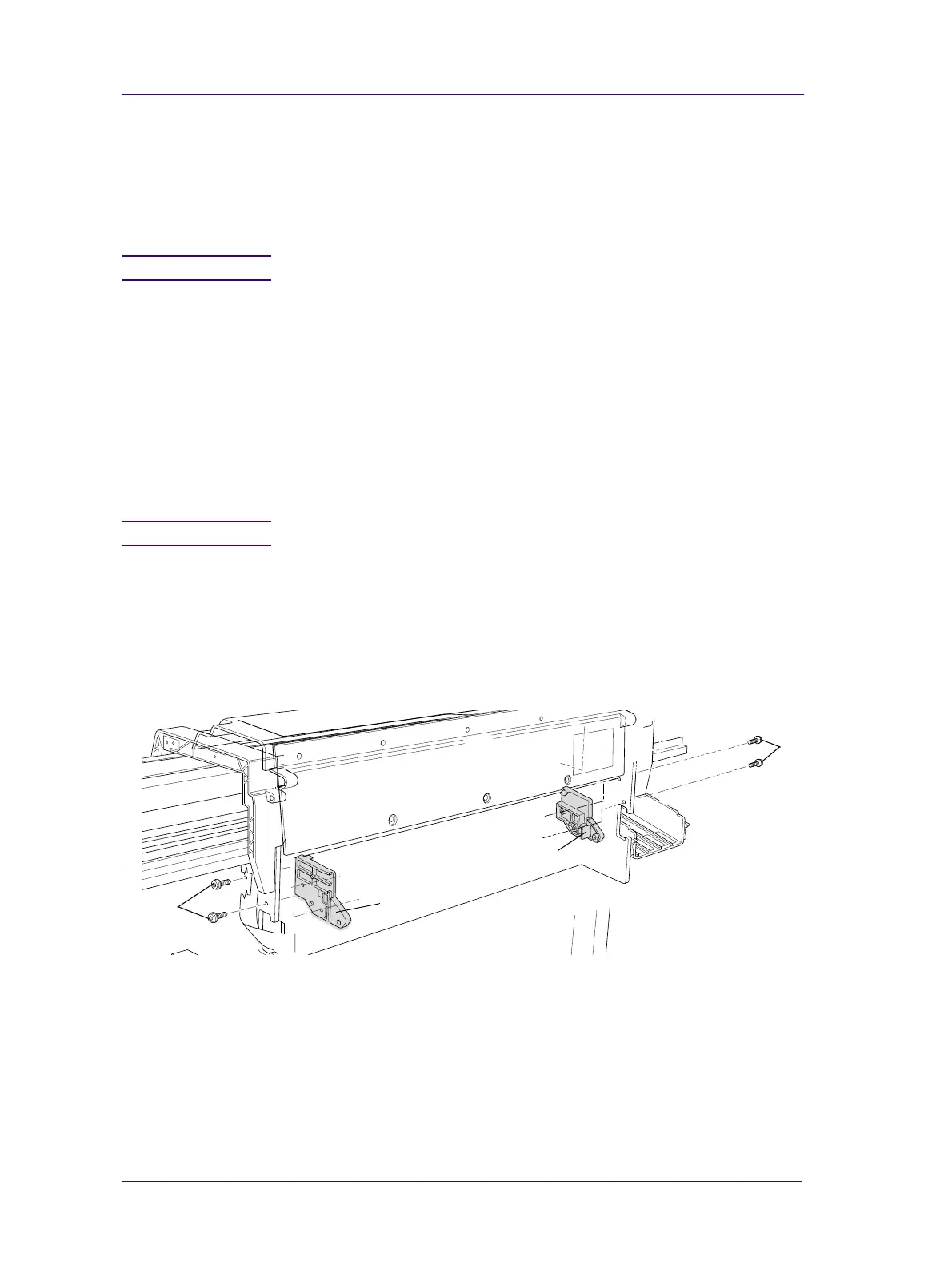

Figure 72: Platen Mounts
1
2
4
3

HP Designjet 1050c Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Resolution	1200 x 600 dpi
Number of Ink Cartridges	4 (Cyan, Magenta, Yellow, Black)
Media Types Supported	Coated, glossy, plain, film, vellum, translucent bond
Maximum Media Size	36 in (914 mm) roll
Ink Types	Dye-based
Connectivity	Parallel
Memory	64 MB
Hard Drive	Not available
Media Sizes Supported	A4, A3, A2, A1, A0, B4, B3, B2, B1, B0
Roll Width	24 in, 36 in
Operating Systems Supported	Windows 2000, XP
Power Requirements	100 to 240 VAC (+/- 10%), 50/60 Hz
