HP Designjet 1050c

Removal and Installation
8-67
HP DesignJets 1050C and 1055CM Printers Service Manual
4. Remove the four T-15 screws (item 1) securing the left hand
electronic module mount (item 2) to the left hand side chassis (refer
to Figure 73).

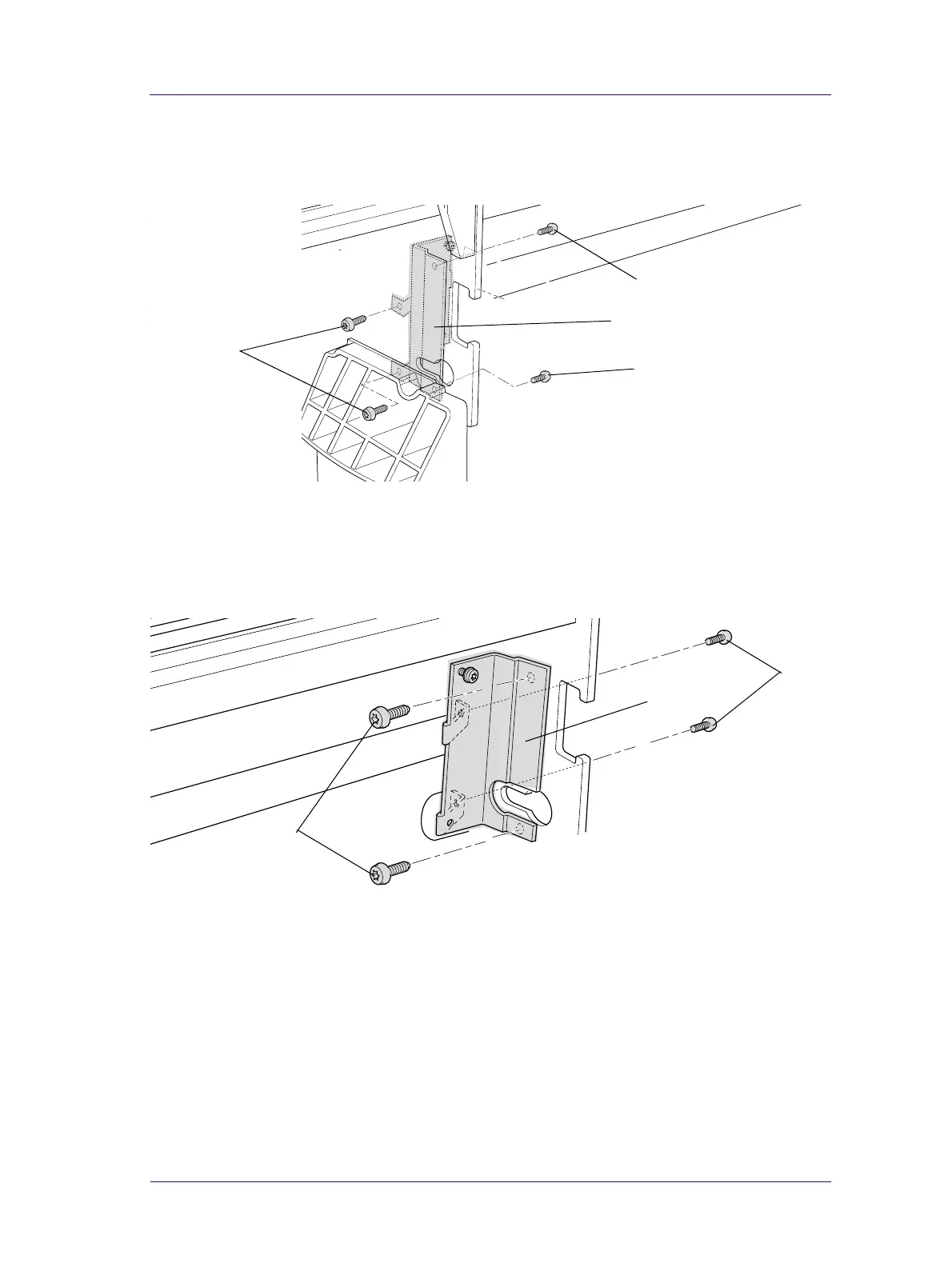

Figure 73: Left Electronic Module Mount
5. Remove the four T-15 screws (item 1) securing the right hand
electronic module mount (item 2) to the right hand side chassis
(refer to Figure 74).
Figure 74: Right Electronic Module Mount
2
1
1
1
1
1
2
