HP Designjet 1050c Service Manual

Removal and Installation
8-21
HP DesignJets 1050C and 1055CM Printers Service Manual
Clutch Assembly and left hand miscellaneous parts
Refer to Figure 19 and Figure 20.
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the following:
1. "Left Hand Cover" see page 8-13.
2. "Ink Supply System Assembly" see page 8-19.
NOTE From steps 2 to 5, refer to Figure 19.
2. Pull apart the two tabs on the Paper Entry gear (item 1) and remove
the gear.
3. Using a long screwdriver remove two T-15 screws (item 5) securing
the clutch bracket (item 6) to the side chassis.
4. Remove the special T-20 screw (item 2).
NOTE In the next step the assembly is spring loaded and when the
retaining screw is removed it may help to hold the assembly with
one hand to avoid loosing parts.
5. Remove the gears (item 3) and the spring (item 4) in the clutch
assembly. Refer to the note above.
.

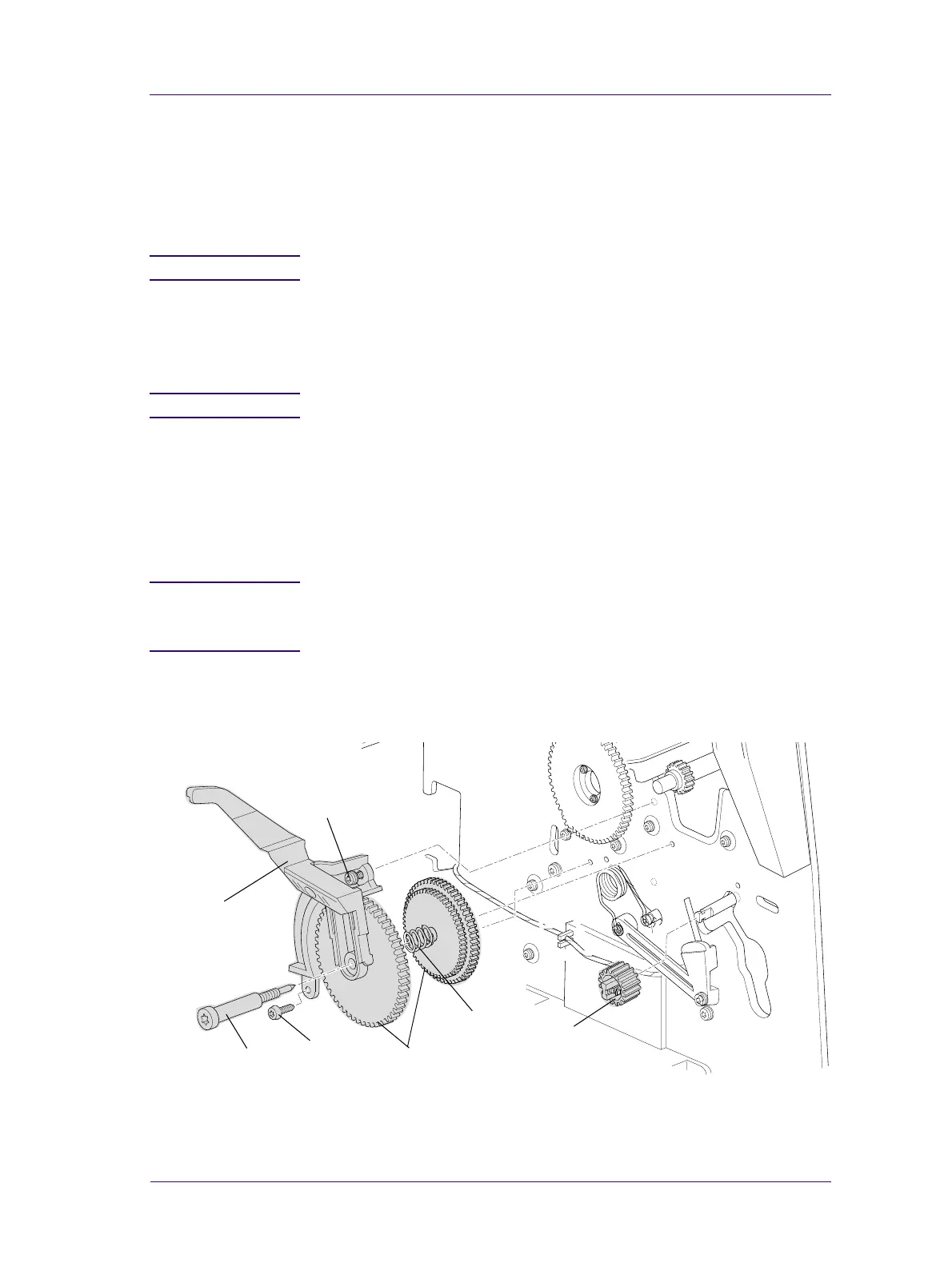

Figure 19: Clutch Assembly
5
1
2
5
6
3
4
C607420a
