HP Designjet 1050c Service Manual

Removal and Installation
8-22
HP DesignJets 1050C and 1055CM Printers Service Manual
NOTE For the following steps, refer to Figure 20.
6. Remove the two T-10 screws (item 1) from the left roller gear (item
2) attached to the left side of the roller.
7. Remove the two T-20 screws (item 3) from the roller support (item
4) and remove the support.
8. Release the tension from the torsion spring (item 5) by removing the
arm of the spring off the spring hook (item 6).
9. Remove the two T-15 screws (item 7) from the pinch sensor bracket
(item 8) and remove the bracket with the sensor attached. Release
the sensor cable from retaining clips to remove completely.
10. Remove the spring hook (T-15) (item 6).

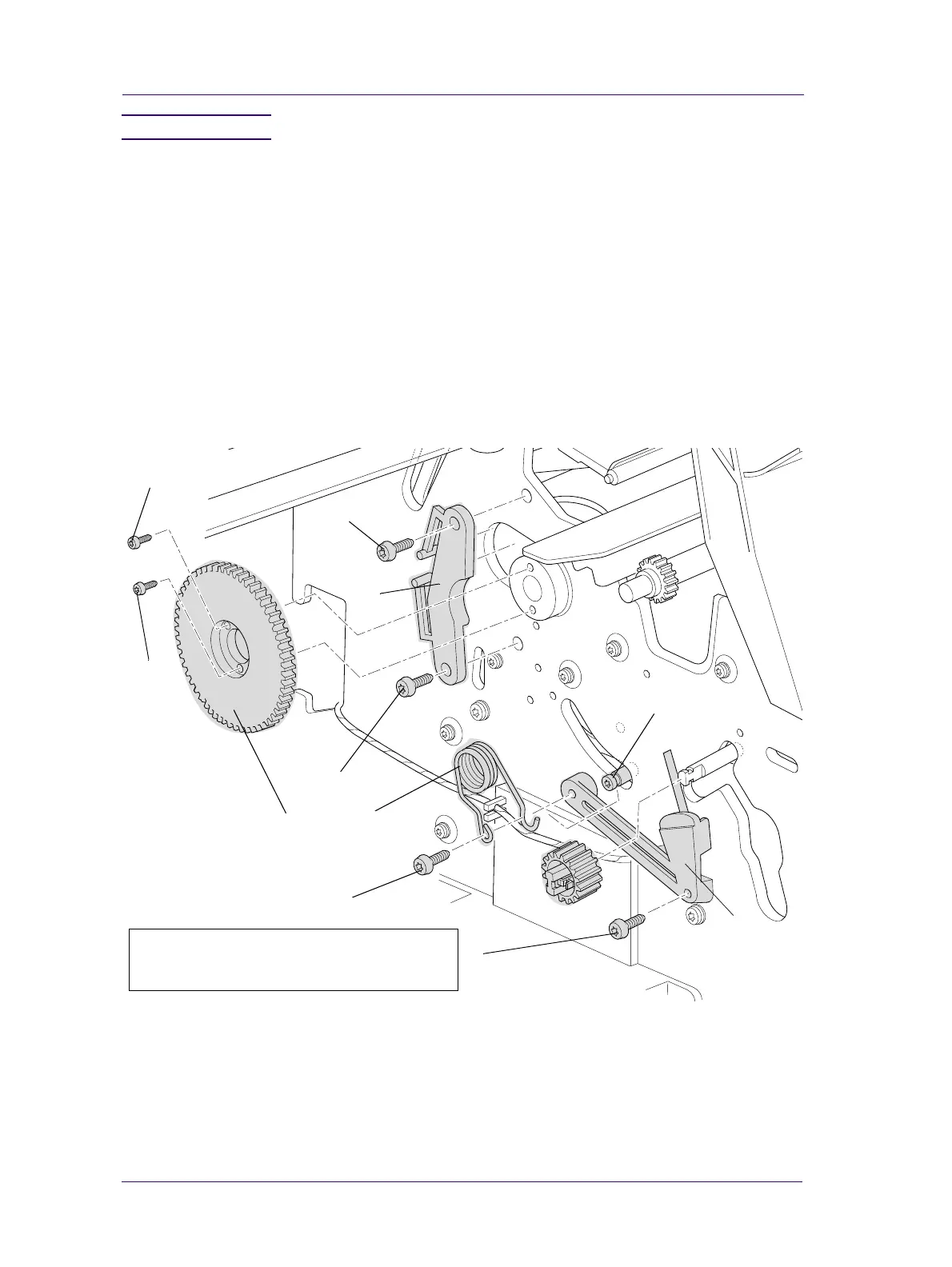

Figure 20: Miscellaneous Parts
3*
1*
2*
4*
5
6
7
7
8
C607420b
1*
3*
7
removing the Paper Entry Assembly or
* These items do not need to be removed when
the Center Guide

HP Designjet 1050c Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Resolution	1200 x 600 dpi
Number of Ink Cartridges	4 (Cyan, Magenta, Yellow, Black)
Media Types Supported	Coated, glossy, plain, film, vellum, translucent bond
Maximum Media Size	36 in (914 mm) roll
Ink Types	Dye-based
Connectivity	Parallel
Memory	64 MB
Hard Drive	Not available
Media Sizes Supported	A4, A3, A2, A1, A0, B4, B3, B2, B1, B0
Roll Width	24 in, 36 in
Operating Systems Supported	Windows 2000, XP
Power Requirements	100 to 240 VAC (+/- 10%), 50/60 Hz
