HP Designjet 1050c Service Manual

Removal and Installation
8-39
HP DesignJets 1050C and 1055CM Printers Service Manual
Trailing Cable
Refer to Figure 36 and Figure 37.
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the following:
1. "Right Hand Cover" see page 8-4.
2. "Left Hand Cover" see page 8-13.
3. "Left Rear Cover" see page 8-24.
NOTE For steps 2 to 5, refer to Figure 36.
2. Manually slide the carriage (item 1) to the left side of the printer.
3. Unclip and remove the trailing cable restraining clip (item 2).
4. Carefully disconnect the trailing cable (item 3) from connectors in
the Carriage PCA (item 4).
5. Remove the trailing cable from the trailing cable holder (item 5).

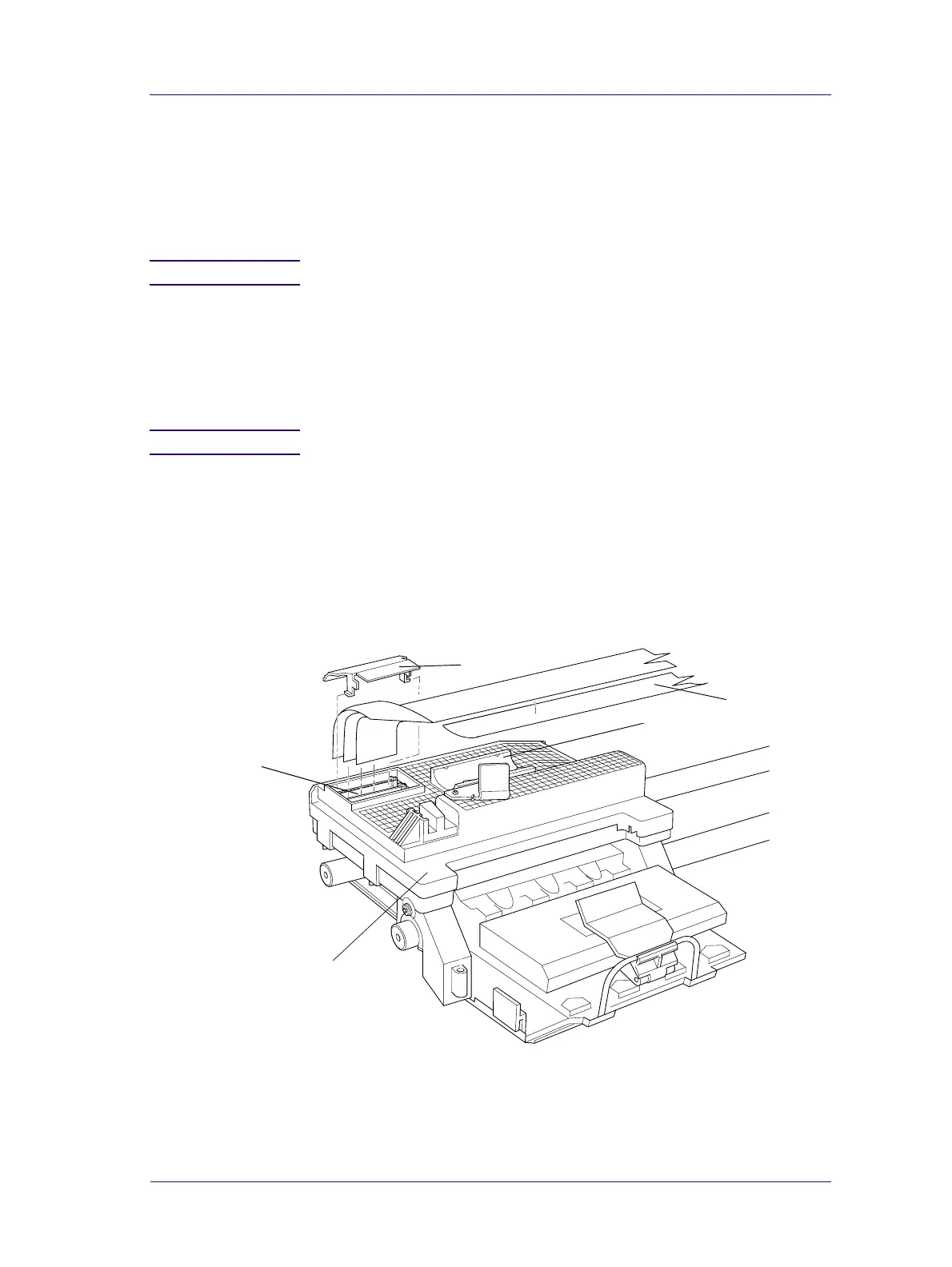

Figure 36: Trailing Cable
1
2
3
4
5
C607412
