HP Designjet 1050c

Removal and Installation
8-38
HP DesignJets 1050C and 1055CM Printers Service Manual

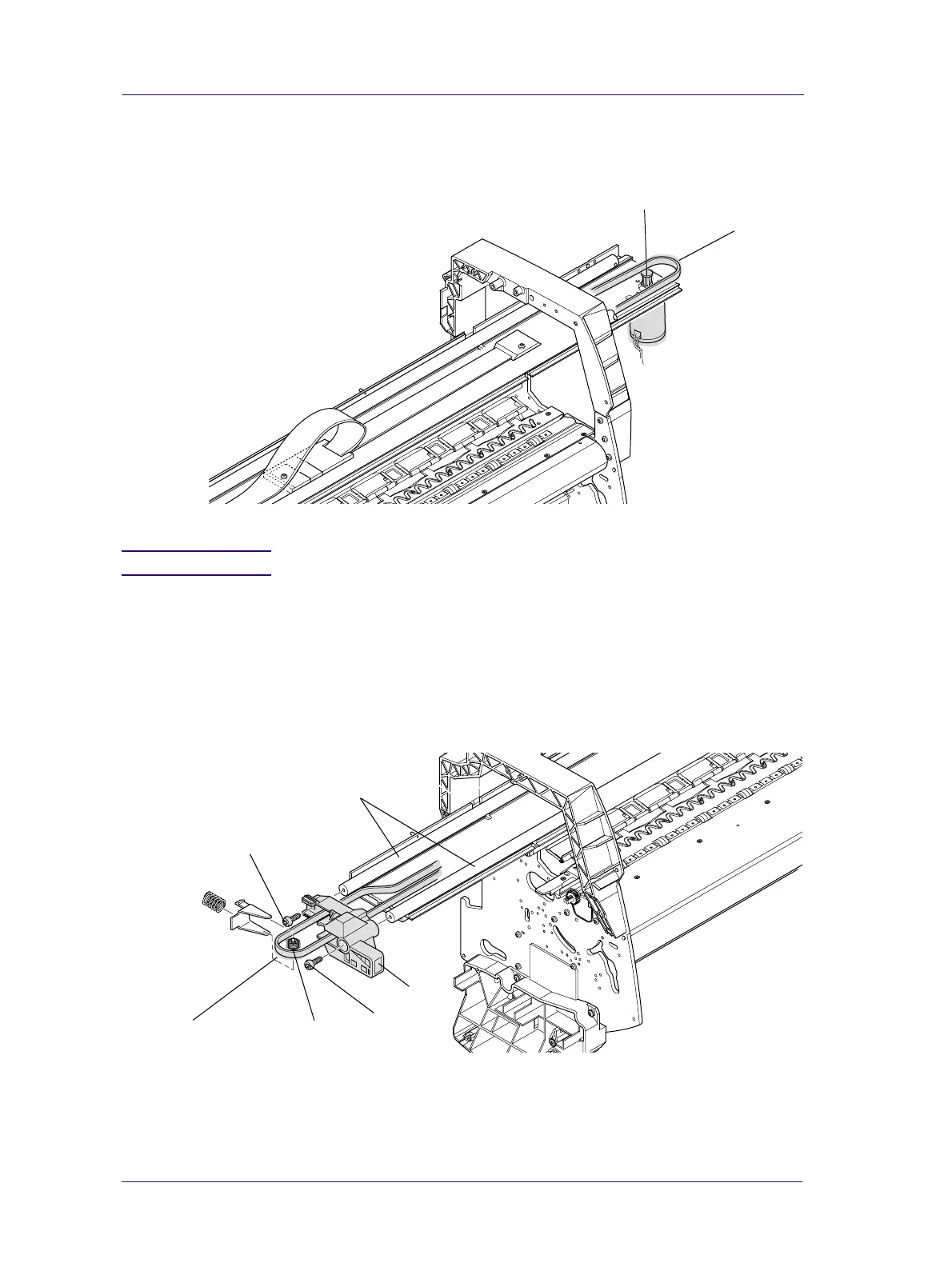

3. Remove the belt (item 1) from the belt motor pulley (item 2) on the
right hand side of the Printer (refer to Figure 34)
Figure 34: Tensioner Assembly
NOTE For steps 4 to 6, refer to Figure 35.
4. Remove the tensioner pulley (item 1) from the belt (item 2) which is
located in the tensioner assembly (item 3).
5. Remove the two T-15 screws (item 4) securing the tensioner
assembly to the slider rods (item 5).
6. Remove the tensioner assembly (item 3).
Figure 35: Tensioner Assembly
1
2
1
2
3
4
5
4
