HP Designjet 1050c Service Manual

Removal and Installation
8-65
HP DesignJets 1050C and 1055CM Printers Service Manual

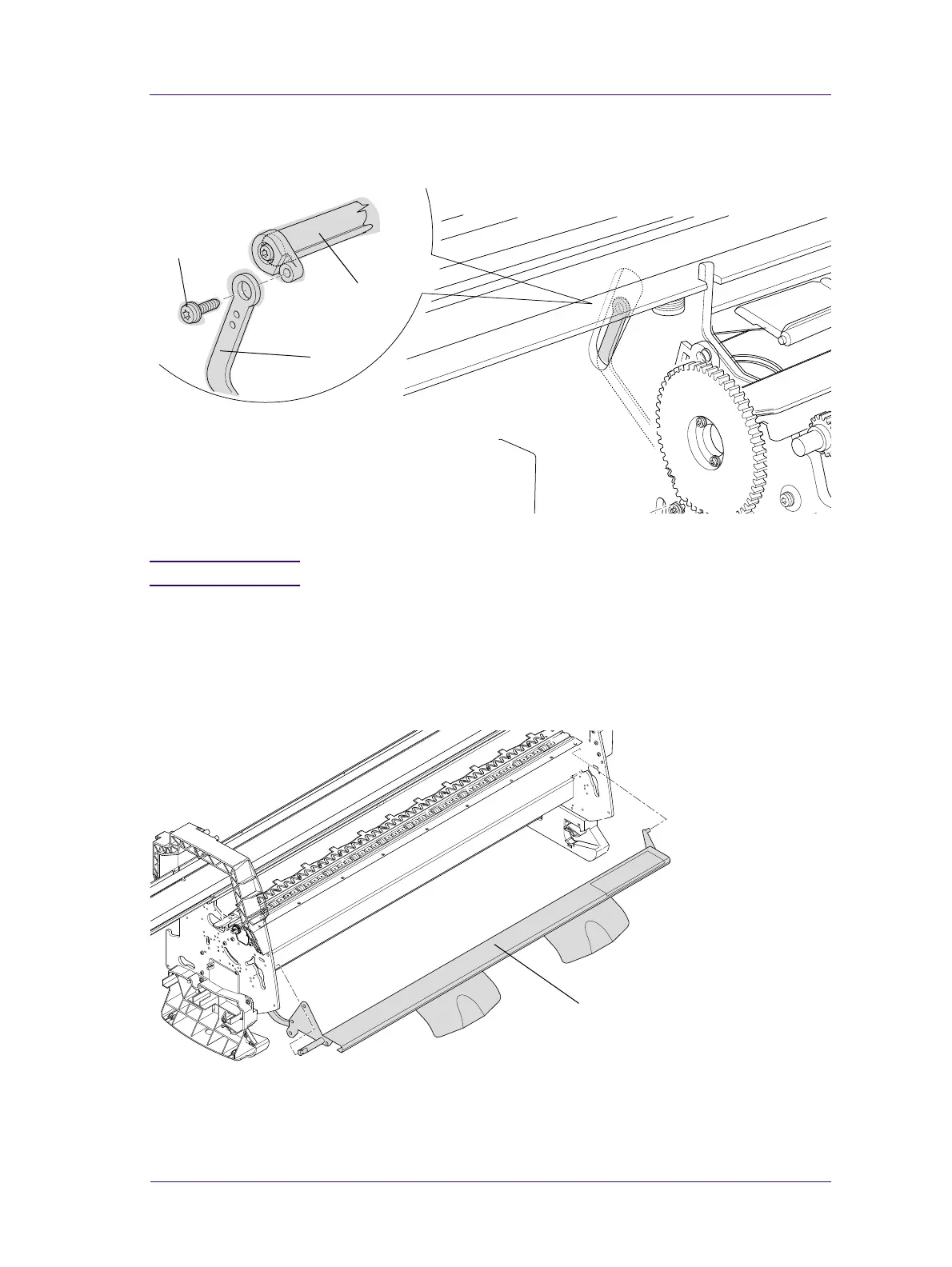

3. Remove the T-10 screw (item 1) from the linkage rod (item 2) and
the pinch-wheel cam (item 3) (refer to Figure 70).
Figure 70: Linkage Rod
NOTE For steps 4 and 5, refer to Figure 71.
4. Release the right side of the paper entry assembly (item 1) from a
retaining hole in the right hand side chassis.
5. Remove the right side of the paper entry assembly (item 1) first and
then the left side.
Figure 71: Paper Entry Assembly
C607420c
1
2
3
C607424
1

HP Designjet 1050c Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Resolution	1200 x 600 dpi
Number of Ink Cartridges	4 (Cyan, Magenta, Yellow, Black)
Media Types Supported	Coated, glossy, plain, film, vellum, translucent bond
Maximum Media Size	36 in (914 mm) roll
Ink Types	Dye-based
Connectivity	Parallel
Memory	64 MB
Hard Drive	Not available
Media Sizes Supported	A4, A3, A2, A1, A0, B4, B3, B2, B1, B0
Roll Width	24 in, 36 in
Operating Systems Supported	Windows 2000, XP
Power Requirements	100 to 240 VAC (+/- 10%), 50/60 Hz
