HP Designjet 1050c Service Manual

Removal and Installation
8-43
HP DesignJets 1050C and 1055CM Printers Service Manual
NOTE For steps 3 and 4, refer to Figure 39
3. Loosen the retaining screw T-9 at the back of the printhead tube
connector.
4. Remove the printhead tube connector (refer to Figure 39).

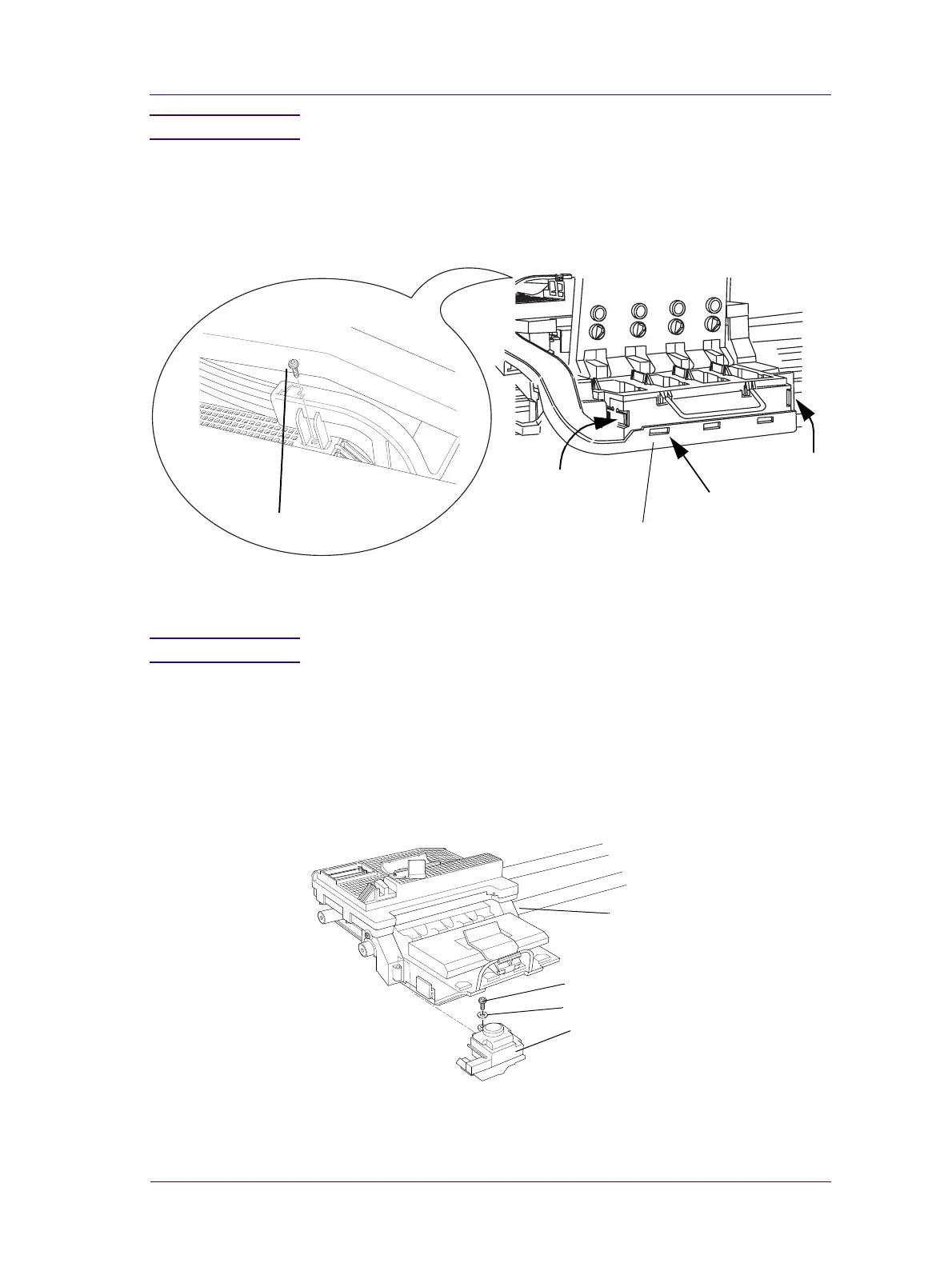

Figure 39: Cutter Assembly
5. Move the Printhead tube connector to a safe position.
NOTE For the following steps, refer to Figure 40.
6. Remove one screw (item 1) and washer (item 2) that attaches the
Cutter Assembly (item 3) to the Carriage Assembly (item 4).
7. Slide the Cutter Assembly (item 3) towards you and remove from
the Printer.
Figure 40: Cutter Assembly
a. Push in here
b. Pull here
c. Loosen this screw
View from the rear
Printhead tube connector
a. Push in here
1
3
4
2
C607417a
