HP Designjet 1050c Service Manual

Removal and Installation
8-72
HP DesignJets 1050C and 1055CM Printers Service Manual
4. Remove the two T-15 screws from the right hand side plate securing
the right side of the center guide (refer to Figure 79).

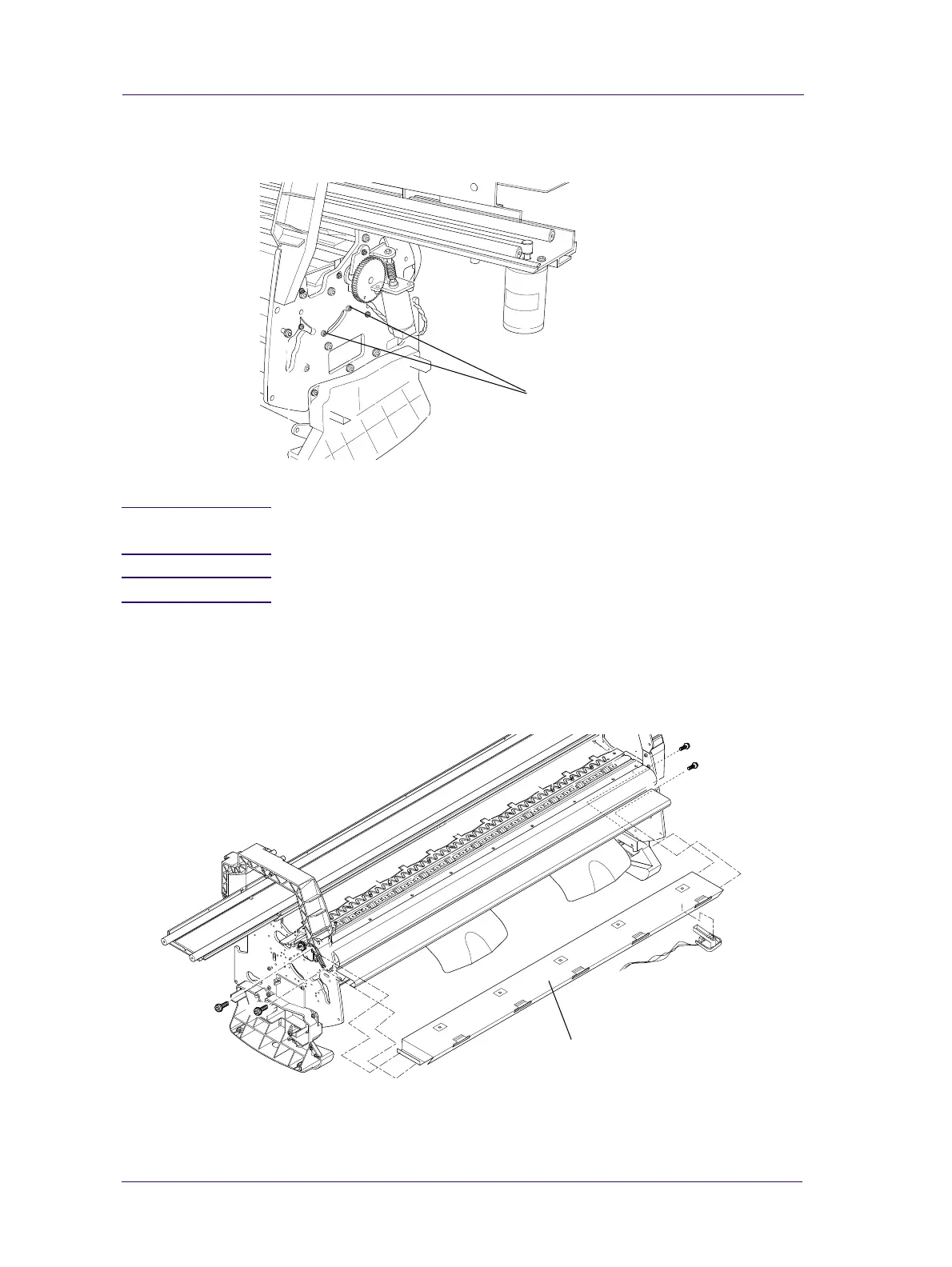

Figure 79: Right Hand Center Guide Screws
NOTE For re-installation purposes, note the position of the pins
supporting the center guide in place.
NOTE Working from the front of the printer
5. Remove the center guide (item 1) (refer to Figure 80):
a Lift up the front of the center guide
b Pull the complete assembly towards you and remove.
Figure 80: Center Guide
C607432
1
1

HP Designjet 1050c Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Resolution	1200 x 600 dpi
Number of Ink Cartridges	4 (Cyan, Magenta, Yellow, Black)
Media Types Supported	Coated, glossy, plain, film, vellum, translucent bond
Maximum Media Size	36 in (914 mm) roll
Ink Types	Dye-based
Connectivity	Parallel
Memory	64 MB
Hard Drive	Not available
Media Sizes Supported	A4, A3, A2, A1, A0, B4, B3, B2, B1, B0
Roll Width	24 in, 36 in
Operating Systems Supported	Windows 2000, XP
Power Requirements	100 to 240 VAC (+/- 10%), 50/60 Hz
