2. Release the tube holder (item 1) from the rear of the left hand cover
by pushing it up and out (refer to Figure 9).

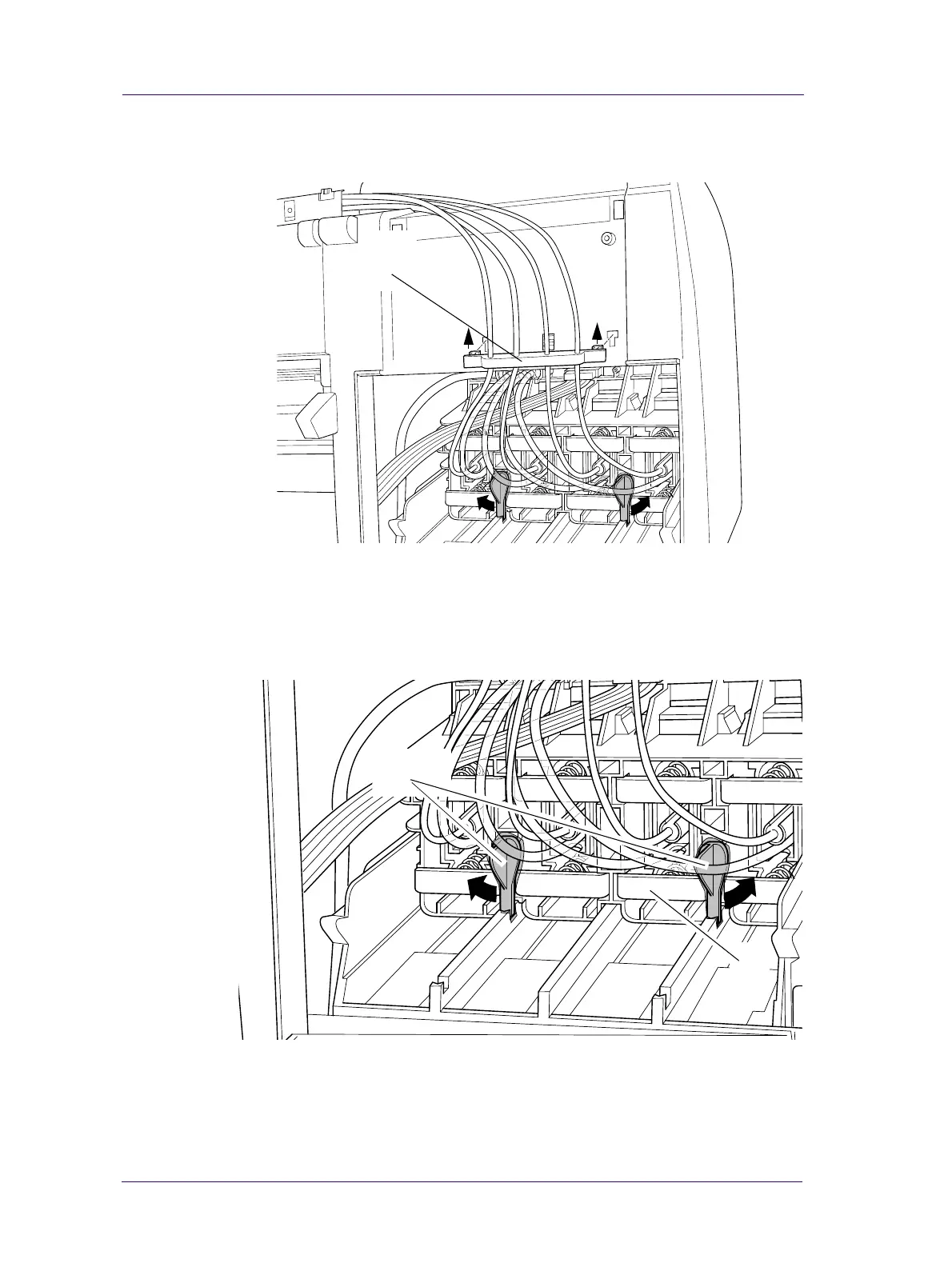

Figure 9: Tube Grip
3. Twist the two latches at the rear of the ink cartridge tube connector
outwards (refer to Figure 10). This will release the complete
assembly.
Figure 10: Latches
