HP DesignJets 1050C and 1055CM Printers Service Manual
Figure 23: Electronics Module
NOTE For the following steps, refer to Figure 24.
8. Remove two T-20 screws (item 1) which can be found at both ends
of the electronics module at the bottom.
9. Loosen (do not remove) the two remaining T-20 screws (item 2) and
carefully remove the whole electronics module (item 3) by sliding it
up and pulling towards you.

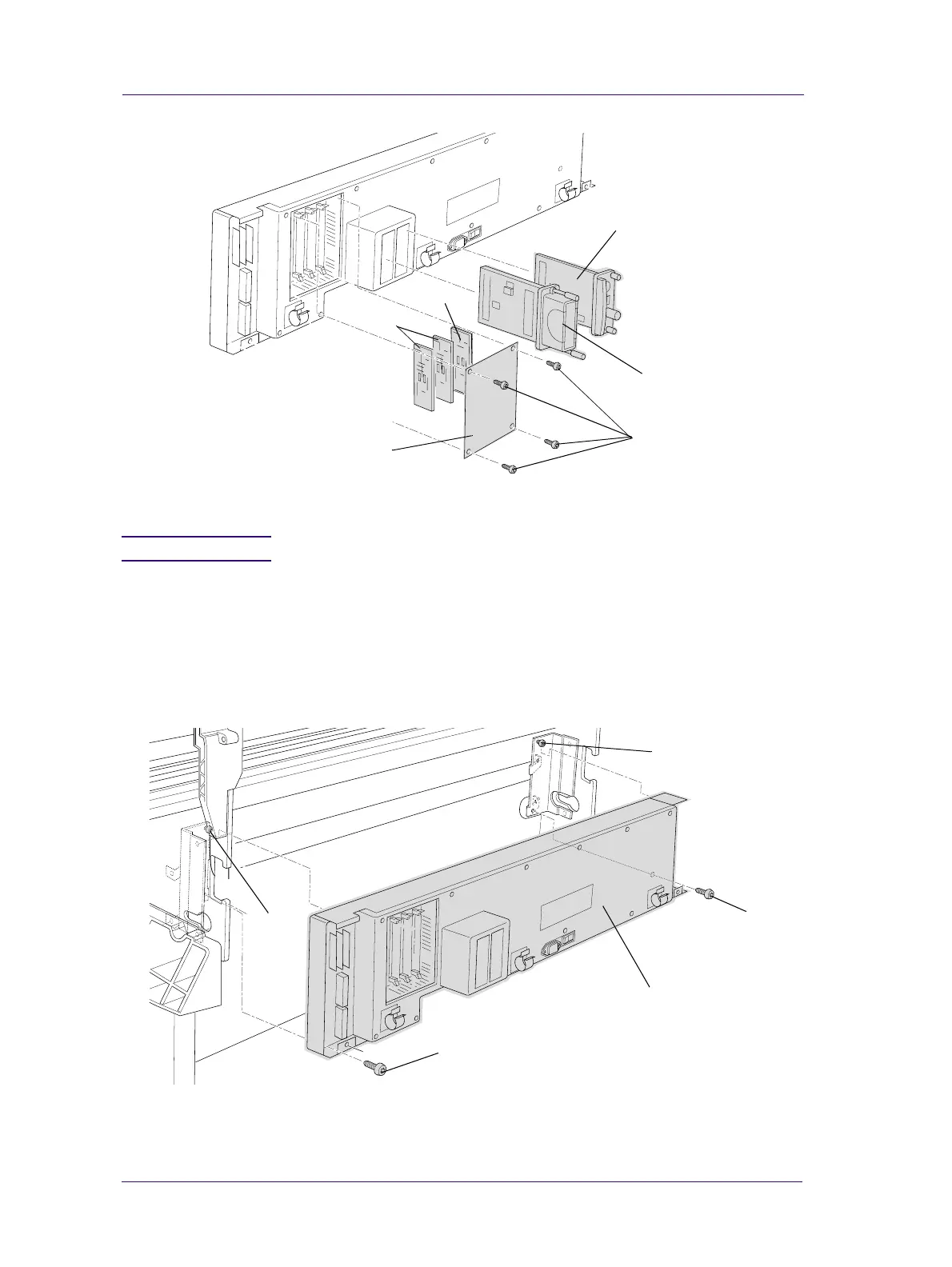

Figure 24: Electronics Module
