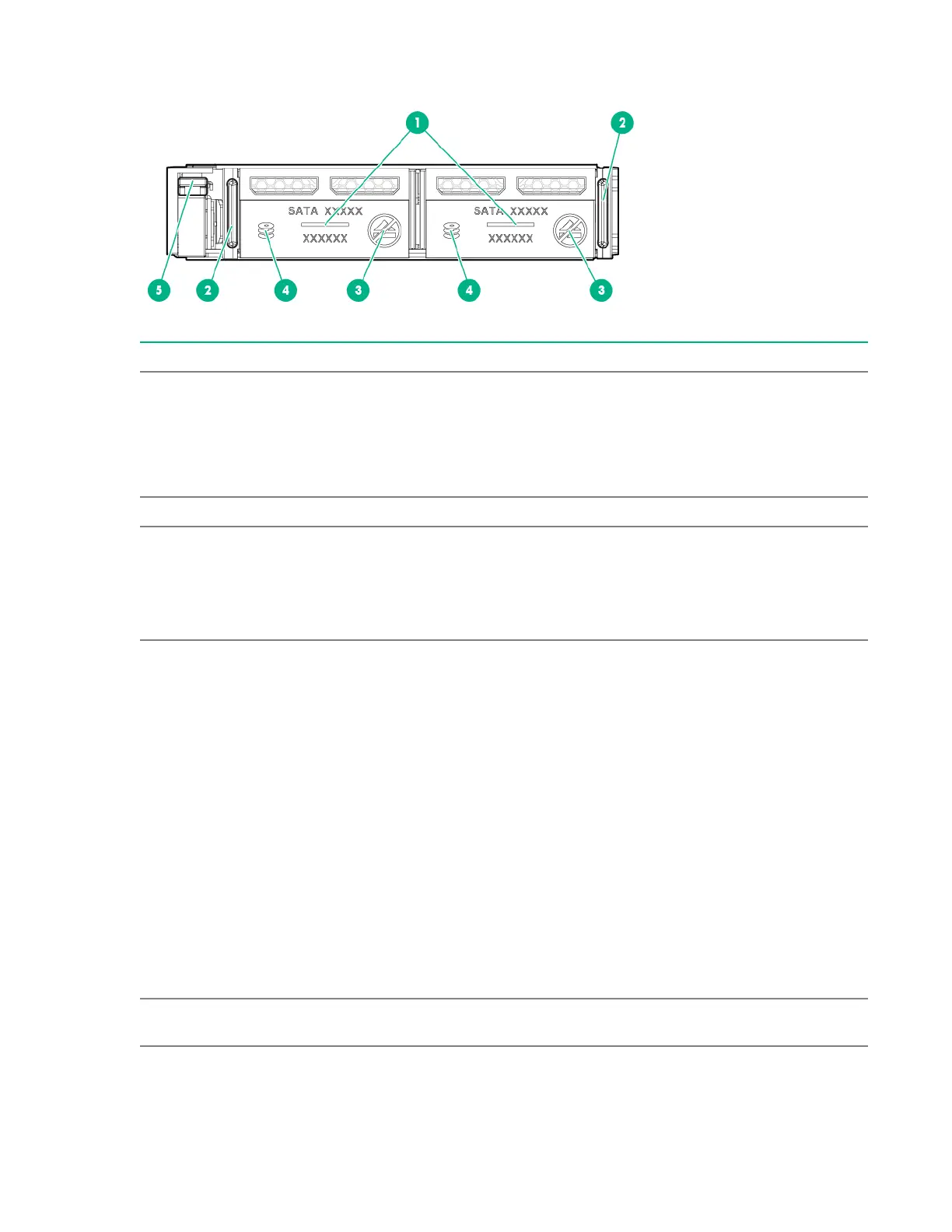

SFF flash adapter components and LED definitions
Item Component Description
1 Locate • Off—Normal
• Solid blue—The drive is being identified by a host application.
• Flashing blue—The drive firmware is being updated or
requires an update.
2 uFF drive ejection latch Removes the uFF drive when released.
3 Do not remove LED • Off—OK to remove the drive. Removing the drive does not
cause a logical drive to fail.
• Solid white—Do not remove the drive. Removing the drive
causes one or more of the logical drives to fail.
4 Drive status LED • Off—The drive is not configured by a RAID controller or a
spare drive.
• Solid green—The drive is a member of one or more logical
drives.
• Flashing green (4 Hz)—The drive is operating normally and
has activity.
• Flashing green (1 Hz)—The drive is rebuilding, erasing, or
performing a RAID migration, stripe size migration, capacity
expansion, logical drive extension, or spare activation.
• Flashing amber/green (1 Hz)—The drive is a member of one
or more logical drives that predicts the drive will fail.
• Solid amber—The drive has failed.
• Flashing amber (1 Hz)—The drive is not configured and
predicts the drive will fail.
5 Adapter ejection release latch
and handle
Removes the SFF flash adapter when released.
80 Component and LED identification

HPE Synergy Series Specifications

General

Processor	Intel Xeon Scalable Processors
Storage	SAS/SATA HDD/SSD, NVMe SSD
Networking	Ethernet, Fibre Channel, InfiniBand
Management	HPE OneView
Compute Modules Supported	HPE Synergy 480 Gen10, HPE Synergy 660 Gen10
Operating System Support	VMware vSphere, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Fabric Modules Supported	HPE Synergy 40Gb F8 Switch Module
Power Supplies	HPE Synergy 12000 Frame Power Supplies (Redundant)
