HPE Synergy Series User Manual

Item LED Status Definition
Flashing blue Firmware is being
updated
2 Health Off Not powered up
Green Healthy
Flashing amber Error, there is a problem
with the module
Storage option LEDs, components, and guidelines

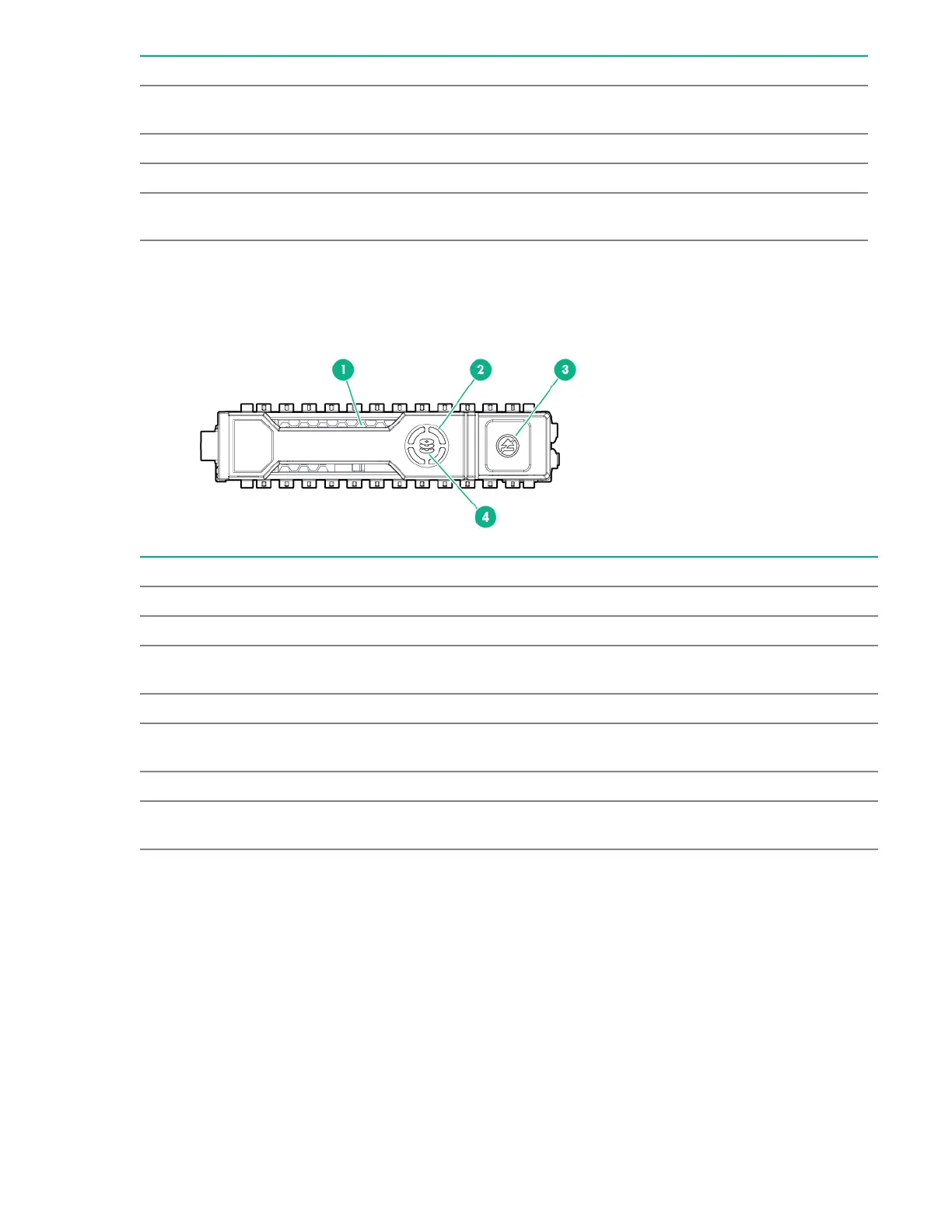

Hot-plug drive LED definitions
Item LED Status Definition
1 Locate Solid blue The drive is being identified by a host application.
Flashing blue The drive carrier firmware is being updated or requires an update.
2 Activity
ring
Rotating green Drive activity
Off No drive activity
3 Do not
remove
Solid white Do not remove the drive. Removing the drive causes one or more of
the logical drives to fail.
Off Removing the drive does not cause a logical drive to fail.
4 Drive
status
Solid green The drive is a member of one or more logical drives.
Table Continued
Component and LED identification 77

HPE Synergy Series Specifications

General

Processor	Intel Xeon Scalable Processors
Storage	SAS/SATA HDD/SSD, NVMe SSD
Networking	Ethernet, Fibre Channel, InfiniBand
Management	HPE OneView
Compute Modules Supported	HPE Synergy 480 Gen10, HPE Synergy 660 Gen10
Operating System Support	VMware vSphere, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Fabric Modules Supported	HPE Synergy 40Gb F8 Switch Module
Power Supplies	HPE Synergy 12000 Frame Power Supplies (Redundant)
