Item Description Function
5 UID button
Toggles the UID LED on or off.
Solid blue = Activated
Off = Deactivated
Flashing blue = Firmware upgrade is in progress on the frame link
module.
Do not remove either frame link module while the UID LED is flashing.
6 USB
Allows connection to the frame using a supported USB device. Devices
include a keyboard or mouse for connecting to the HPE Synergy
Console. To connect multiple devices, a USB hub (not included) is
required.
7 LINK port activity LED
Reports LINK port activity:
Flashing green = Activity on the LINK port
Off = No activity on the LINK port
8 LINK port
A 10GBASE-T RJ45 connector that provides two functions:
Provides high availability management network connectivity
between:
LINK ports on two frame link modules in the same frame for a
single frame configuration
Frame link modules in different frames as part of a management
network ring in a multiframe configuration
Provides connectivity as part of a management network ring which
connects multiple frames for automatic discovery by HPE OneView.
9 LINK port connectivity
LED
Reports LINK port connectivity:
Solid green = LINK port is connected.
Off = LINK port is not connected.
10 Monitor port Allows connection to the frame using a monitor device or an active
monitor port adapter.

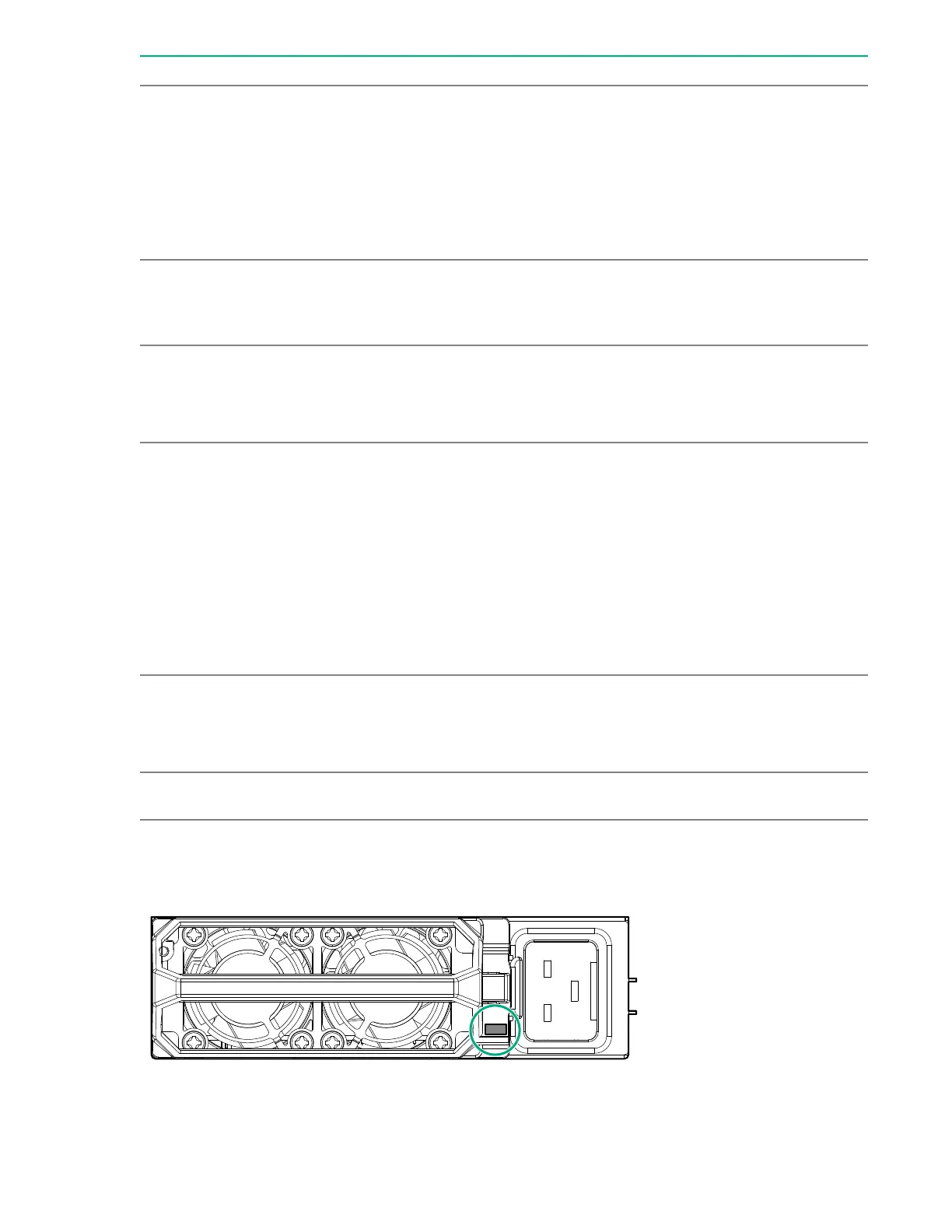

Power supply LED
Component and LED identification 83
