HPE Synergy Series User Manual

Item LED Status Definition
2 UID Solid blue One or more drives are
being located
Flashing blue Firmware flash in
progress
Off No drives are being
located
3 Health status Green Normal operation
Flashing amber Degraded condition
Flashing red Critical condition
4 Drive status (in priority
order)
Solid amber One or more drives
failed
Flashing amber One or more drives are
predicted to fail
Flashing green One or more drives are
rebuilding or
transforming
Solid green One or more drives are
members of a logical
drive
Off No drives are configured
by a RAID controller
5 Drawer power Green Storage module is in
use, do not remove
Off Storage module is not in
use, safe to remove
1
The drive drawer must be closed within five minutes after it is opened.

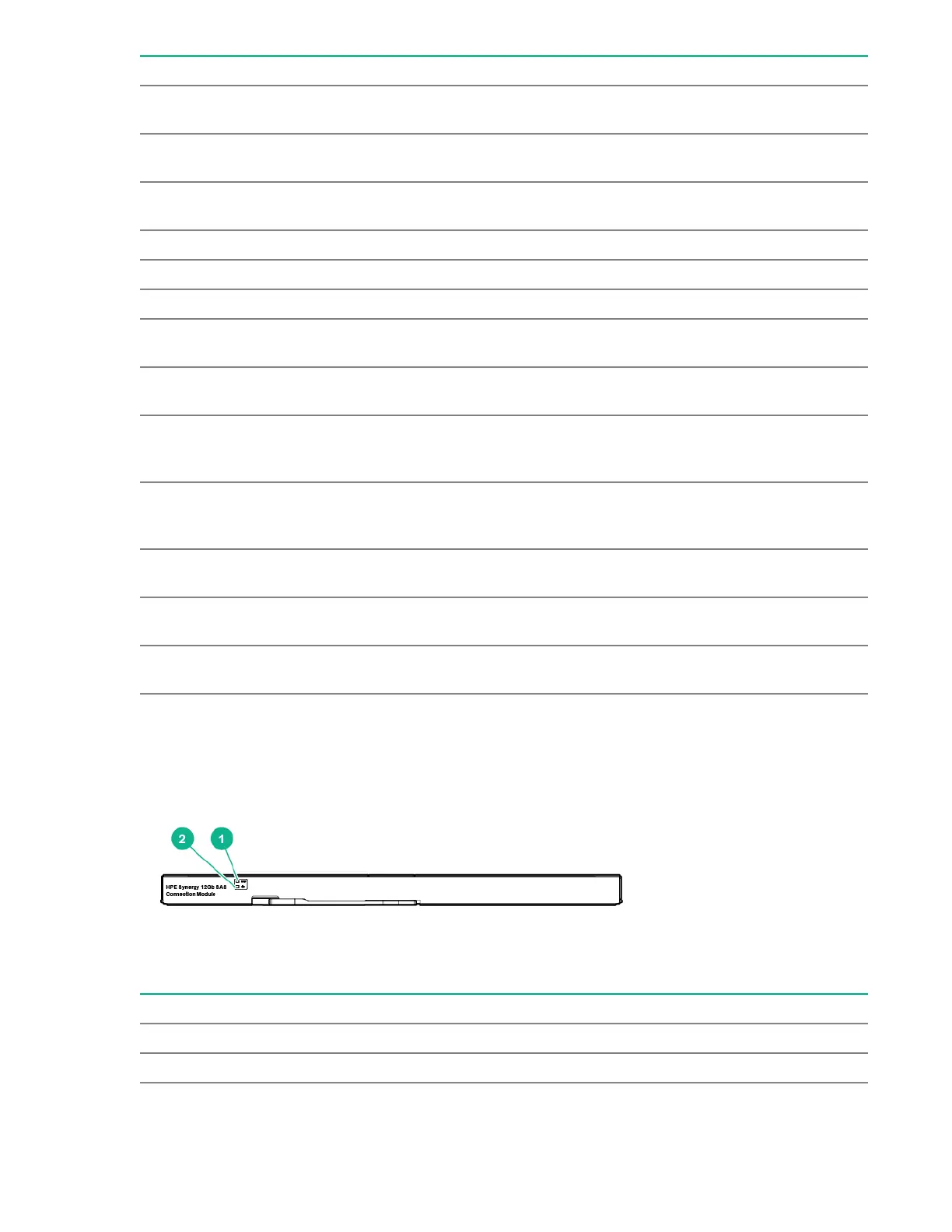

HPE Synergy 12Gb SAS Connection Module front panel LEDs
Item LED Status Definition
1 UID Off Normal
Solid blue Being identified
Table Continued
76 Component and LED identification

HPE Synergy Series Specifications

General

Processor	Intel Xeon Scalable Processors
Storage	SAS/SATA HDD/SSD, NVMe SSD
Networking	Ethernet, Fibre Channel, InfiniBand
Management	HPE OneView
Compute Modules Supported	HPE Synergy 480 Gen10, HPE Synergy 660 Gen10
Operating System Support	VMware vSphere, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Fabric Modules Supported	HPE Synergy 40Gb F8 Switch Module
Power Supplies	HPE Synergy 12000 Frame Power Supplies (Redundant)
