• Either frame link module on the rear of the frame.

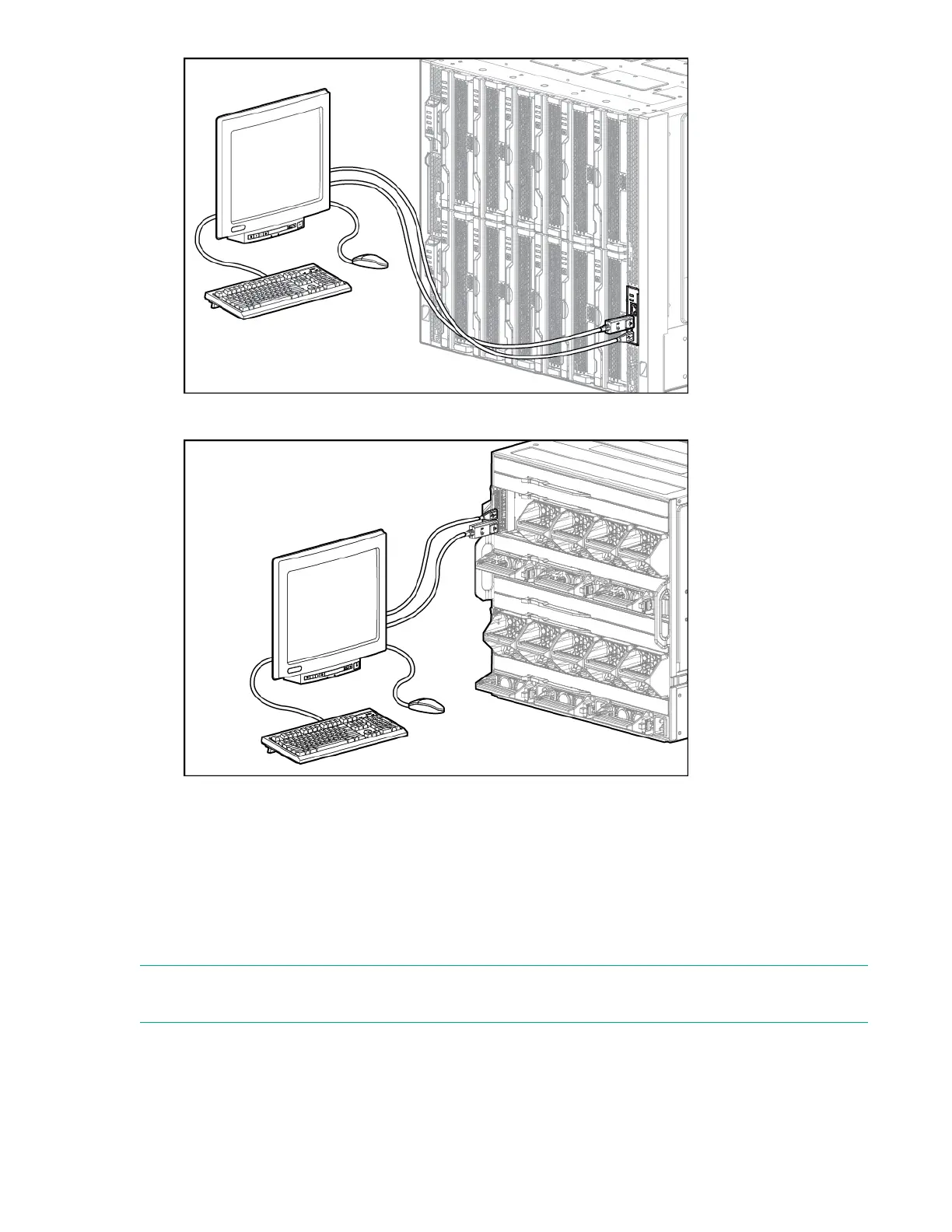

2. Connect a monitor to the frame with the monitor cable.

3. Connect a USB keyboard and mouse to the USB ports on the monitor, and connect the monitor USB

to the frame with the USB cable.

Alternatively, connect the USB keyboard and mouse to a USB hub connected to the frame.

Connecting to the HPE Synergy Console using a laptop computer

NOTE: Do not plug the front panel laptop port into a switch. The front panel laptop port is designed to

provide a single laptop access to HPE Synergy Console.

Prerequisites

At least one frame link module is installed in one of the frame link module bays.

22 Common troubleshooting procedures
