HPE Synergy Series User Manual

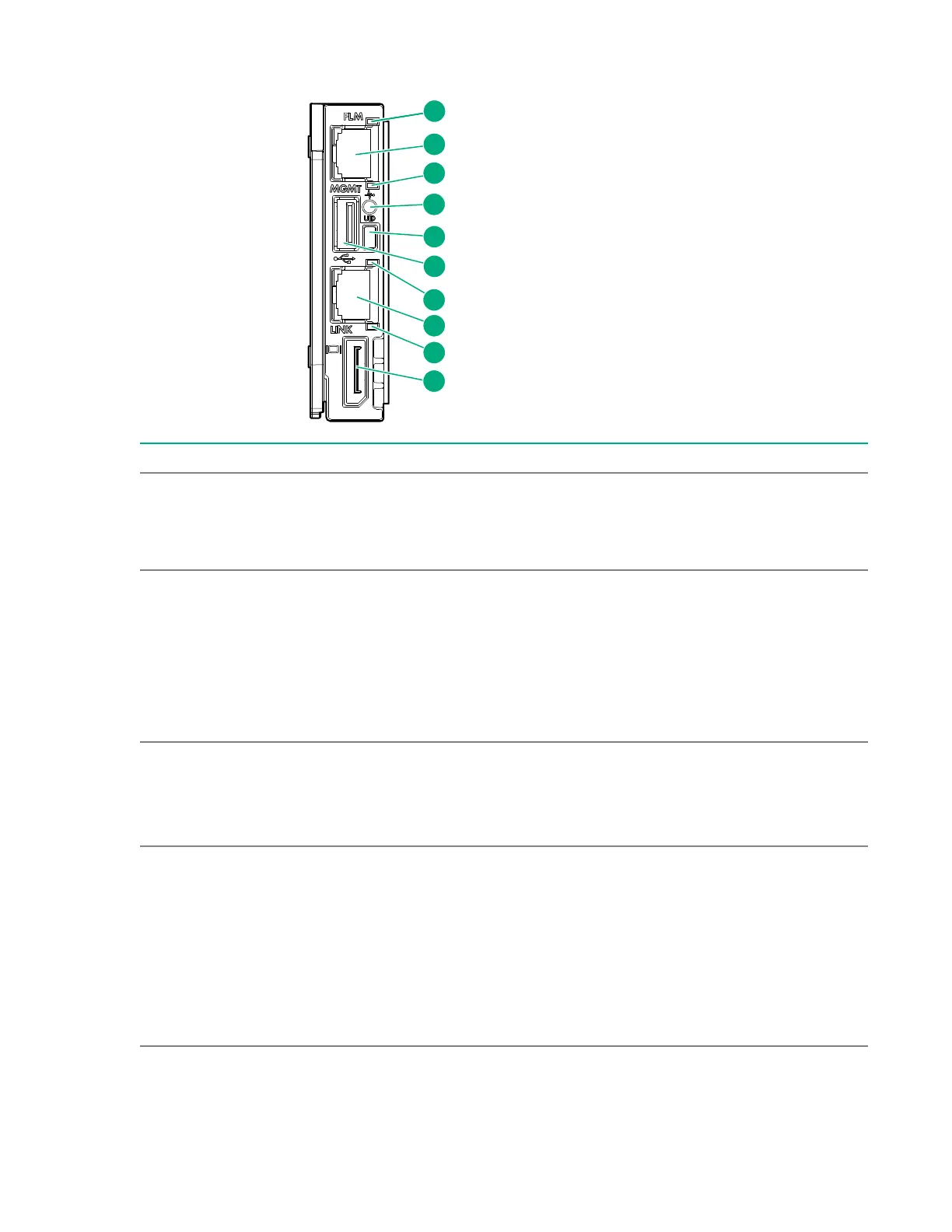

Frame link module components and LEDs
1
2
3
4
5
6
7
8
9
10
Item Description Function
1 MGMT port activity
LED
Reports MGMT port activity:
• Flashing green = Activity on the MGMT port
• Off = No activity on the MGMT port
2 MGMT port
A 10GBASE-T RJ45 connector that provides the following functions:
• Provides a management uplink to the management network.
• Provides a data connection to the data network when an Image
Streamer management appliance is installed in the frame.
• Automatically negotiates speed to 10GbE or 1GbE based on the
connection.
3 MGMT port
connectivity LED
Reports MGMT port connectivity:
• Solid green = MGMT port is connected.
• Off = MGMT port is not connected.
4 Health LED
Provides the health status of the frame link module.
• Solid green = Normal operation
• Flashing amber = Warning
• Flashing red = Critical error
If the Health LED indicates a warning or a critical error, connect to
HPE OneView or to the HPE Synergy Console for more information
and troubleshooting assistance.
Table Continued
82 Component and LED identification

HPE Synergy Series Specifications

General

Processor	Intel Xeon Scalable Processors
Storage	SAS/SATA HDD/SSD, NVMe SSD
Networking	Ethernet, Fibre Channel, InfiniBand
Management	HPE OneView
Compute Modules Supported	HPE Synergy 480 Gen10, HPE Synergy 660 Gen10
Operating System Support	VMware vSphere, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Fabric Modules Supported	HPE Synergy 40Gb F8 Switch Module
Power Supplies	HPE Synergy 12000 Frame Power Supplies (Redundant)
