HPE Synergy Series User Manual

Item Description Function
1 UID button Toggles the frame UID on or off.
2 Frame Health LED
Indicates the highest severity health status of all components
within the frame.
• Solid green—Normal operation
• Flashing amber—Warning
• Flashing red—Critical error
To resolve critical errors, connect to HPE OneView or to the
HPE Synergy Console.
3 Laptop port
Provides single laptop access to the frame link module using an
RJ-45 Ethernet 100BASE-TX connection.
4 Monitor port Provides connectivity for a monitor or an active monitor port
adapter to access the HPE Synergy Console.
5 Reset button
Provides two functions:
• Resets the Active frame link module - momentary press.
• Factory resets both frame link modules - press and hold
until UID LED blinks blue.
NOTE: The reset button does not reset any other component
in the frame.
6 USB Provides a connection for supported USB devices such as a
keyboard or mouse for HPE Synergy Console use. To connect
multiple devices, a USB hub (not included) is required.

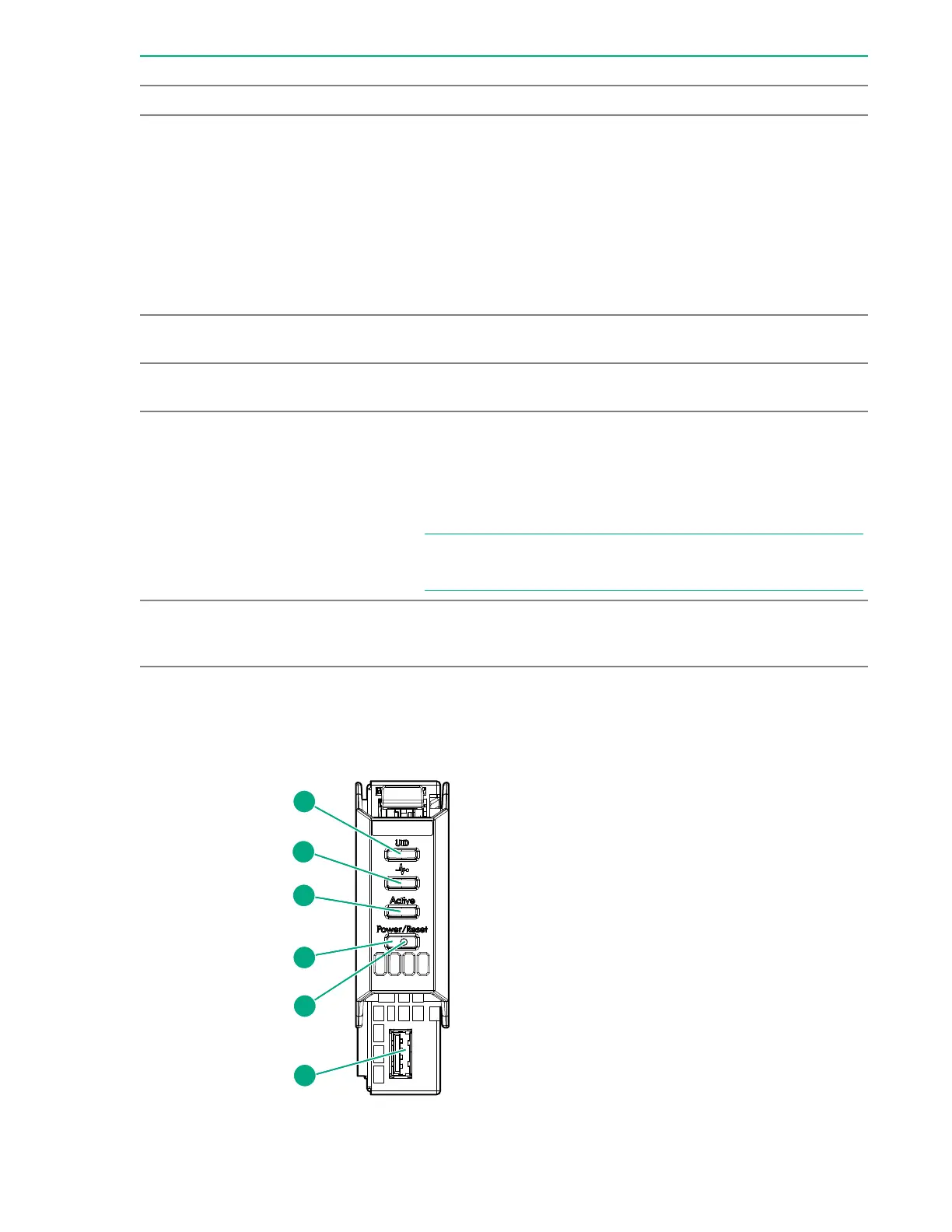

Appliance module LEDs and components
Appliance module LEDs and components are the same for both an HPE Synergy Composer and an HPE
Synergy Image Streamer.
1
2
3
4
5
6
1
2
3
4
5
6
Component and LED identification 71

HPE Synergy Series Specifications

General

Processor	Intel Xeon Scalable Processors
Storage	SAS/SATA HDD/SSD, NVMe SSD
Networking	Ethernet, Fibre Channel, InfiniBand
Management	HPE OneView
Compute Modules Supported	HPE Synergy 480 Gen10, HPE Synergy 660 Gen10
Operating System Support	VMware vSphere, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Fabric Modules Supported	HPE Synergy 40Gb F8 Switch Module
Power Supplies	HPE Synergy 12000 Frame Power Supplies (Redundant)
