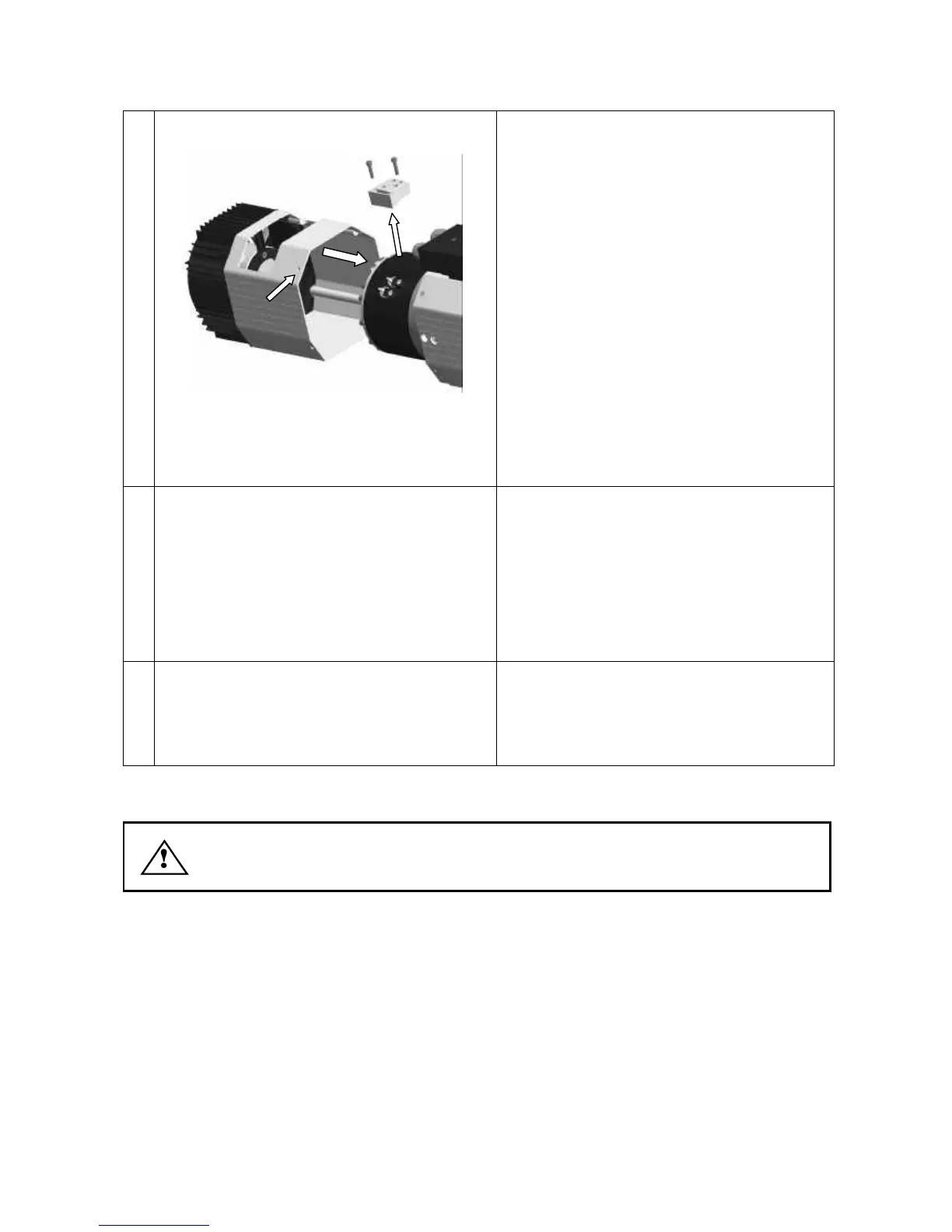

10
• Block G must be removed to re-fit the
cooling fan cover.
• Remove the two fixing screws from block
G.
• Remove block G taking care not to lose or
damage the seals.
• Fit the cooling fan cover and secure with
screws F.
• Fit block G again, taking care to seat the
seals correctly, and tighten the two fixing
screws.
• Reconnect hoses A and D to quick-fit
unions B and C respectively (see the
figure for step 4).
• Connect the cooling fan’s electrical
connector.
11
Follow the instructions in section 12.2.4 to:
• remove the sensors from the old cylinder;
• fit them on the new cylinder;
• calibrate the sensors;
• Close the sensor compartment.
12
• Use an M6 Allen key to remove the
EXTERNAL compressed air unions (pos.
8, Figure 6.3) from the old cylinder and fit
them to the new cylinder.
CALIBRATE THE SENSORS AFTER THE CYLINDER ASSEMBLY HAS BEEN REPLACED.
