2. Close the latch on the optical module to secure it. See (2) in Figure 3-17.
3. Insert the optical cable into the optical module. See (3) in Figure 3-17.
Step 5 When you use an SFP+ cable:
1. Remove the old SFP+ cable.
Gently push the power connector inwards and pull the latch out to remove
the SFP+ cable. See Figure 3-18.
Do not directly pull the latch out.

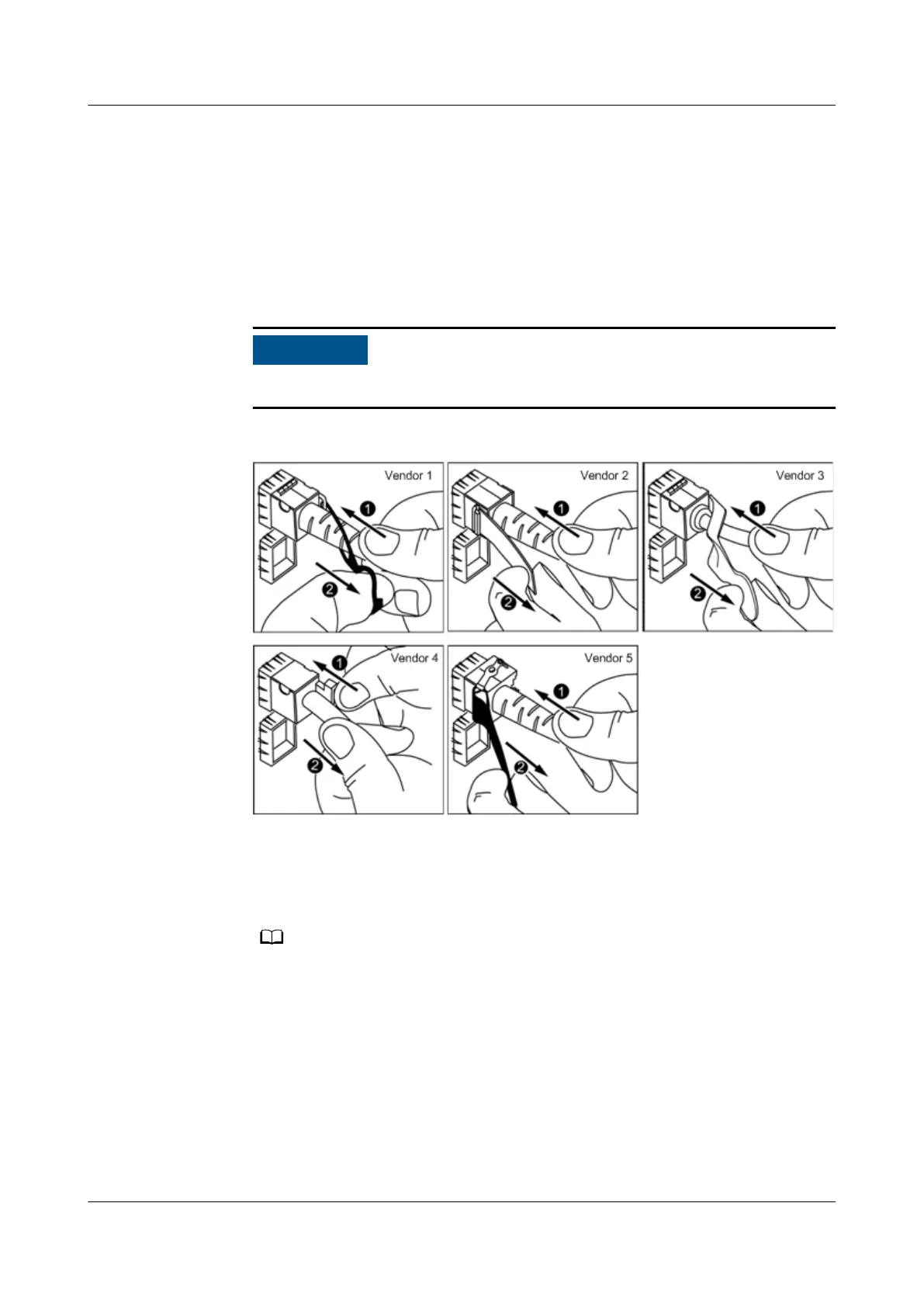

Figure 3-18 Removing an SFP+ cable
2. Connect the new SFP+ cable.
Remove the dust-proof cap on the port, and insert the cable connector into
the port. See Figure 3-19.
When you hear a "click" and the cable cannot be pulled out, the connector is secured.
RH2288H V3 Server
User Guide 3 Installing and Removing the RH2288H V3
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 99
