Hypertherm XPR300 - Connect the Power, CAN, and 5-Gas Assembly (VWI or Optimix)

Installation
3
116 809480 Instruction Manual XPR300
Connect the power, CAN, and 5-gas assembly (VWI or OptiMix)

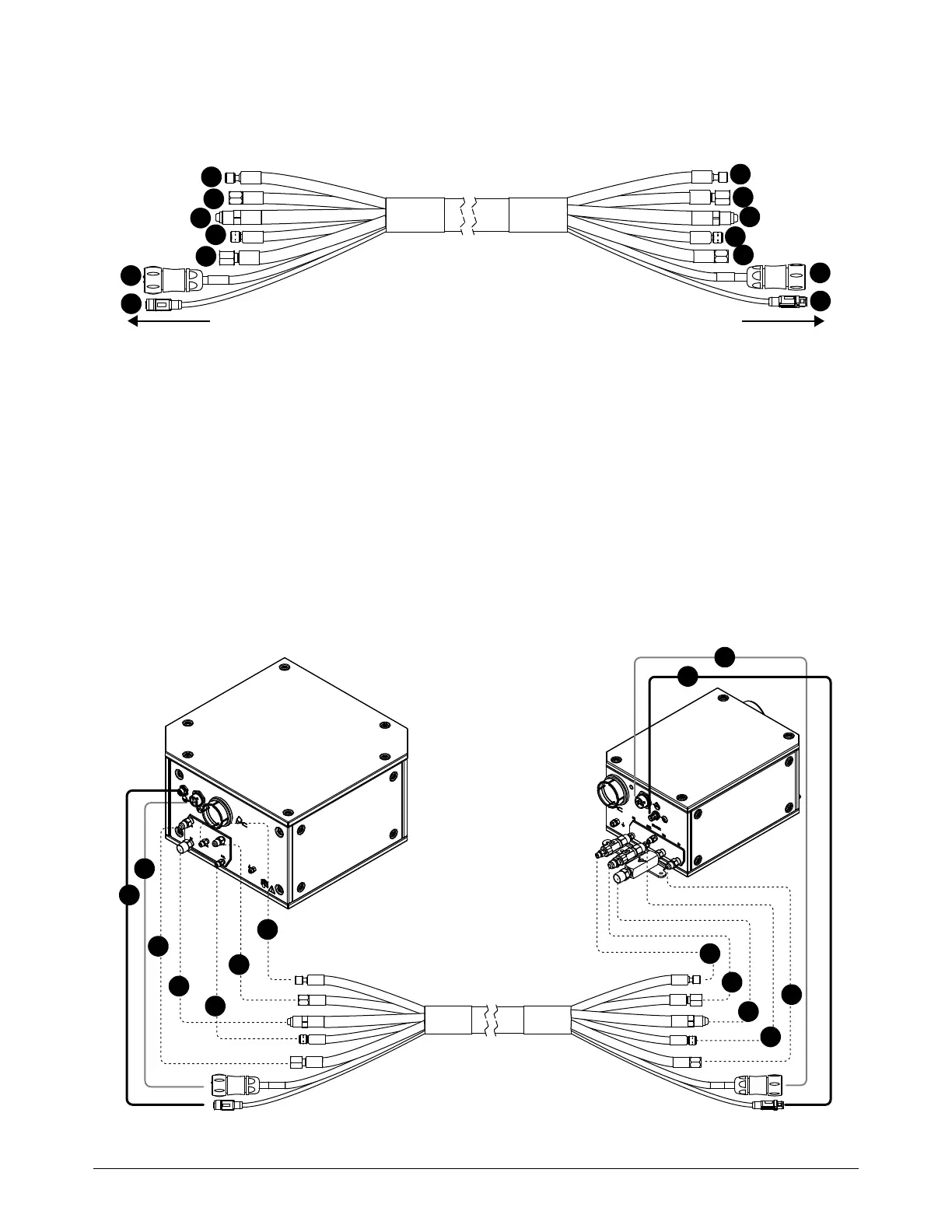

Figure 29 – Power cable, CAN cable, and 5-gas hose assembly

The 18 meter (59.1 feet) assembly is compatible only with the 2 meter
(6.6 feet) or 2.5 meter (8.2 feet) torch lead. For lengths, refer to Power,
CAN, and 5-gas assembly (VWI or OptiMix) on page 396 of the Parts
List.
Figure 30
1
2
3
4
5
6
7
1
2
3
4
5
6
7
To gas connect console
(male cable connectors)
To torch connect console
(female cable connectors)
1 Power cable
2 CAN cable
3 Oxygen hose (blue)
4 Air hose (black)
5 Argon hose (black)
6 Nitrogen hose (black)
7 H
2
-mix or F5 hose (red)
VWI or OptiMix gas connect
console
TorchConnect console
1
2
3
4
6
7
5
1
2
3
4
5
6
7
