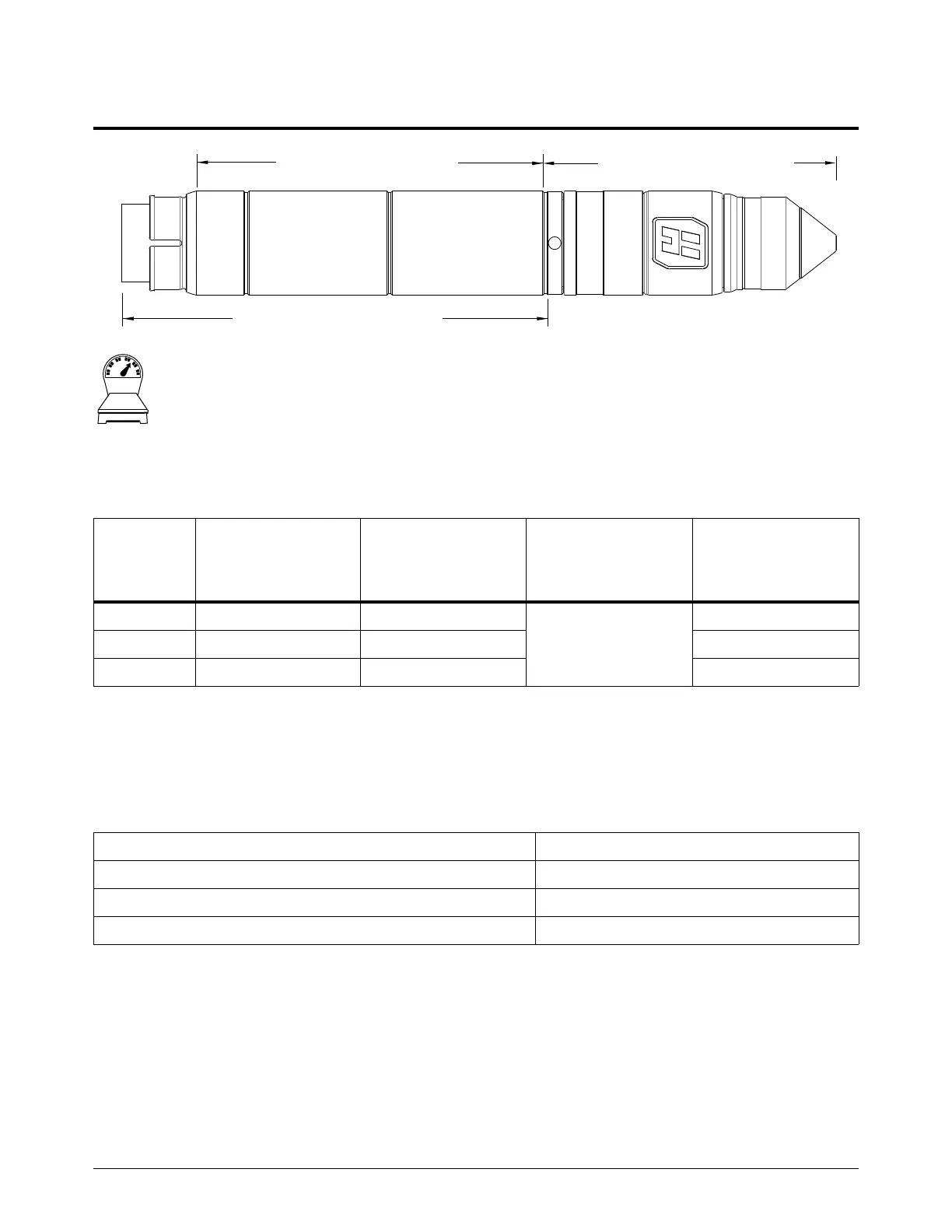

Specifications
34 809480 Instruction Manual XPR300
Torch (part number varies)
Table 4 – Length and weight by sleeve type
The part number and some specifications for your torch can change
because of torch sleeve dimensions and other features. Refer to Torch
assembly on page 386 of the Parts List.
Table 5 – General torch specifications
Sleeve type Clamp-surface length Overall sleeve length
Combined weight
(torch head,
receptacle,
consumables)
Combined weight
with sleeve
Short 111.7 mm (4.4 in.) 155 mm (6.1 in.) 1.4 kg (3 lb) 1.5 kg (3.3 lb)
Standard 189.6 mm (4.5 in.) 233 mm (9.2 in.) 1.6 kg (3.6 lb)
Extended 268.1 mm (10.6 in.) 311 mm (12.3 in.) 1.7 kg (3.9 lb)
Varies
Clamp-surface length
Overall sleeve length
160.8 mm (6.33 in.)
Rated arc striking voltage 15.3 kV
Maximum gas pressure at inlet 7.9 bar, 792 kPa (115 psi)
Minimum gas pressure at inlet 7.2 bar, 723 kPa (105 psi)
Maximum torch-side and torch-front force 22.5 kg (50 lb)
