Hypertherm XPR300 User Manual

Installation
3
100 809480 Instruction Manual XPR300
Connect the coolant hose set

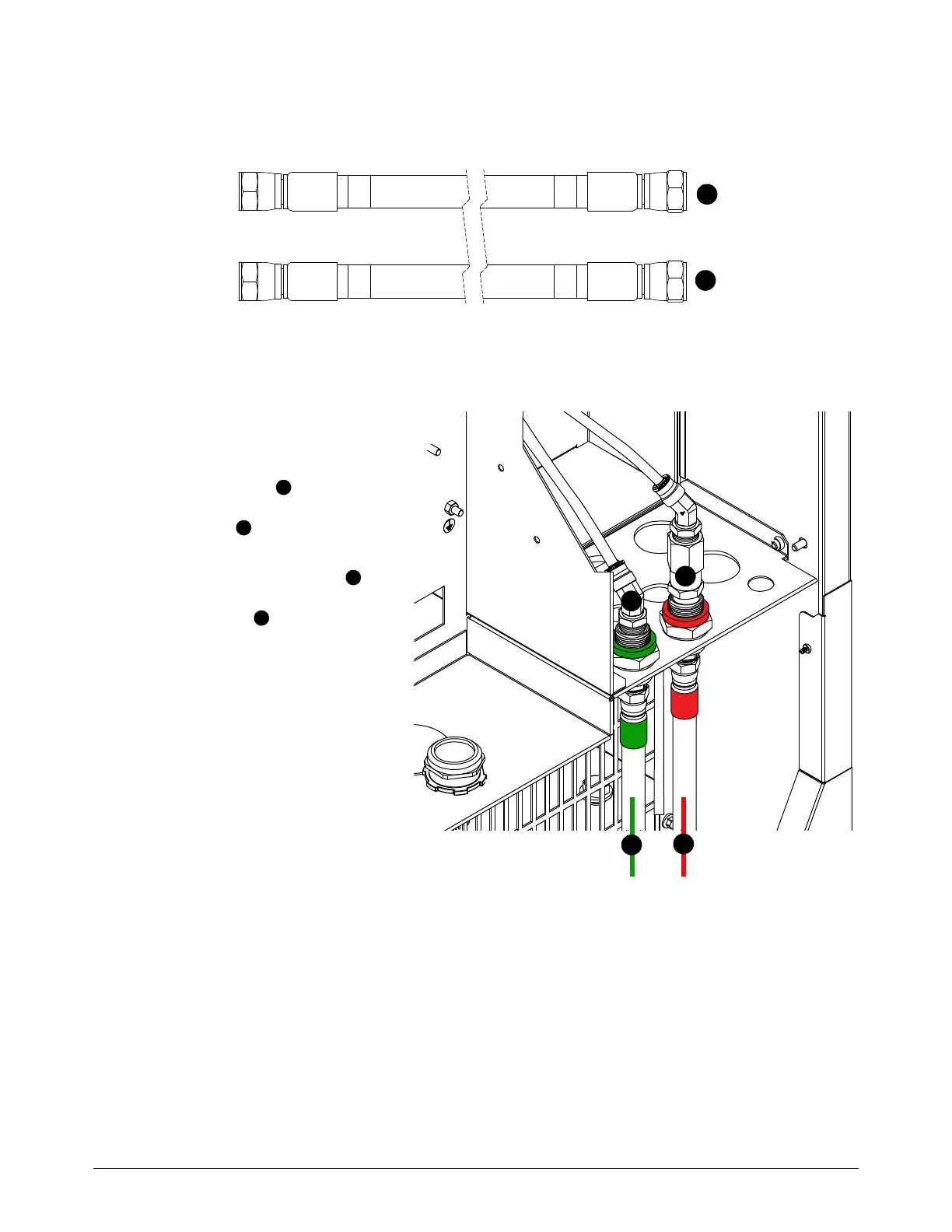

Figure 13 – Coolant hose set

For lengths, refer to Coolant hose set on page 394 of the Parts List.
1. Connect the coolant hose set
to the plasma power supply:
a. Connect the coolant return
hose (red) to the
coolant return fitting
(red) .
b. Connect the coolant
supply hose (green) to
the coolant supply fitting
(green) .

If your cutting system
previously used the
XPR short torch, make
sure to interchange the
coolant hoses prior to
standard-torch
operation. Refer to the
XPR Short Torch
Instruction Manual
(810640) for
information about how
to do this.
1
2
1 Coolant return hose (red band) 2 Coolant supply hose (green band)
Red
1
Green
2
3
4
1
2
3
4

Hypertherm XPR300 Specifications

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
