Installation
3
138 809480 Instruction Manual XPR300
Example configurations for consumables

Worn or damaged consumables can have a negative effect on cut quality. Examine the installed consumables at least
once daily, before system operation. For information about how to do this, refer to Examine the consumable parts on
page 243 in the Maintenance section of this manual.

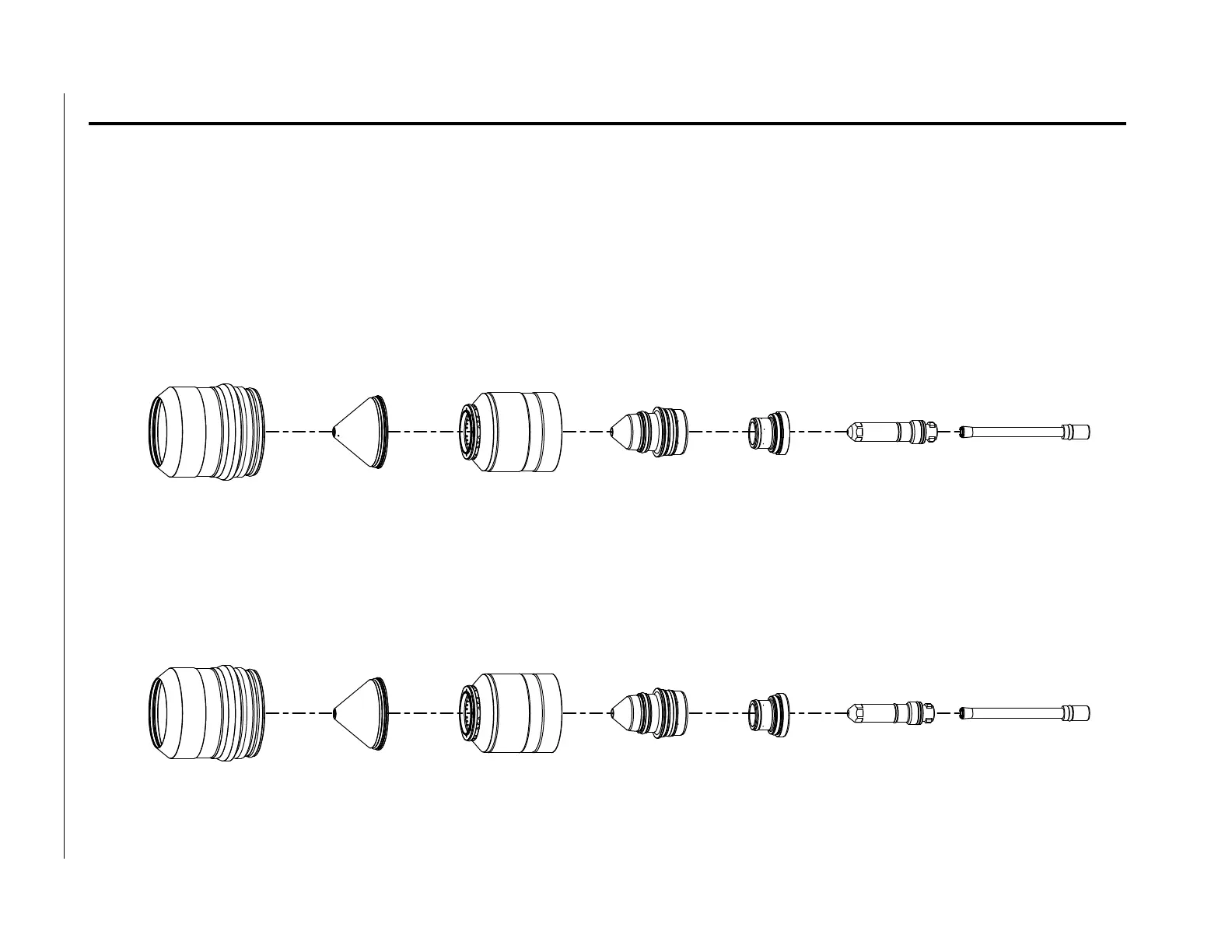

Ferrous (mild steel) example configurations
Mild steel – 30 A – O
2
/O
2
* Consumables for mirror cutting only.
Mild steel – 50 A – O
2
/Air
* Consumables for mirror cutting only.
Water tube
420368
ElectrodeSwirl ringNozzle
420222420407
420620*
420225
Nozzle retaining
cap
420365
Shield
420228
420619*
420200
Shield retaining
cap
Water tube
420368
ElectrodeSwirl ringNozzle
420231420233
420768*
420234
Nozzle retaining
cap
420365
Shield
420237
420767*
420200
Shield retaining
cap
