Connect for Communication
4
160 809480 Instruction Manual XPR300
How to install the VDC3 board (141511)

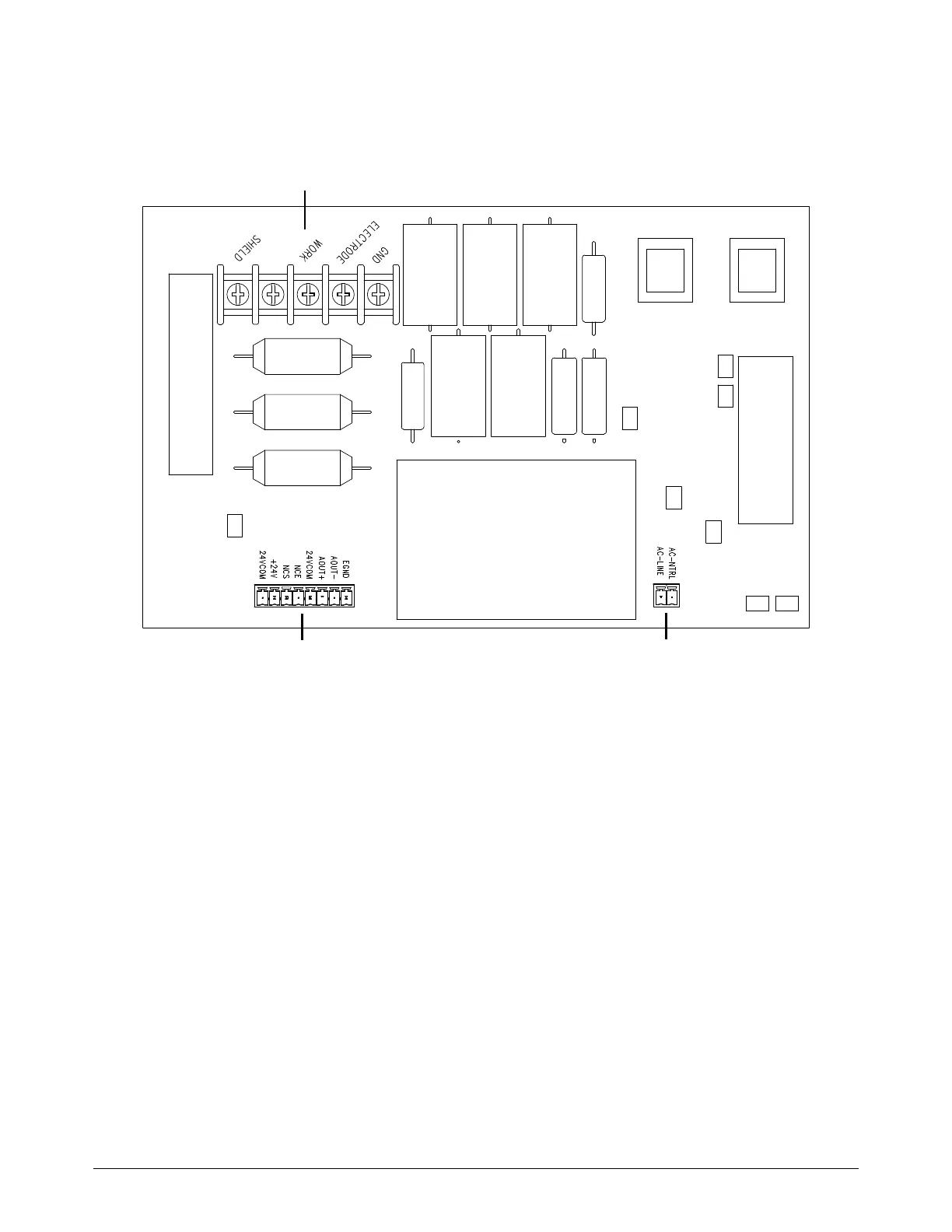

Figure 45 –VDC3 board
J2
12345678
J3
J1
12
J1 120 VAC wires connector
J2 VDC3 board cable connector
J3 Arc voltage wires connector
