Installation
3
XPR300 Instruction Manual 809480 97

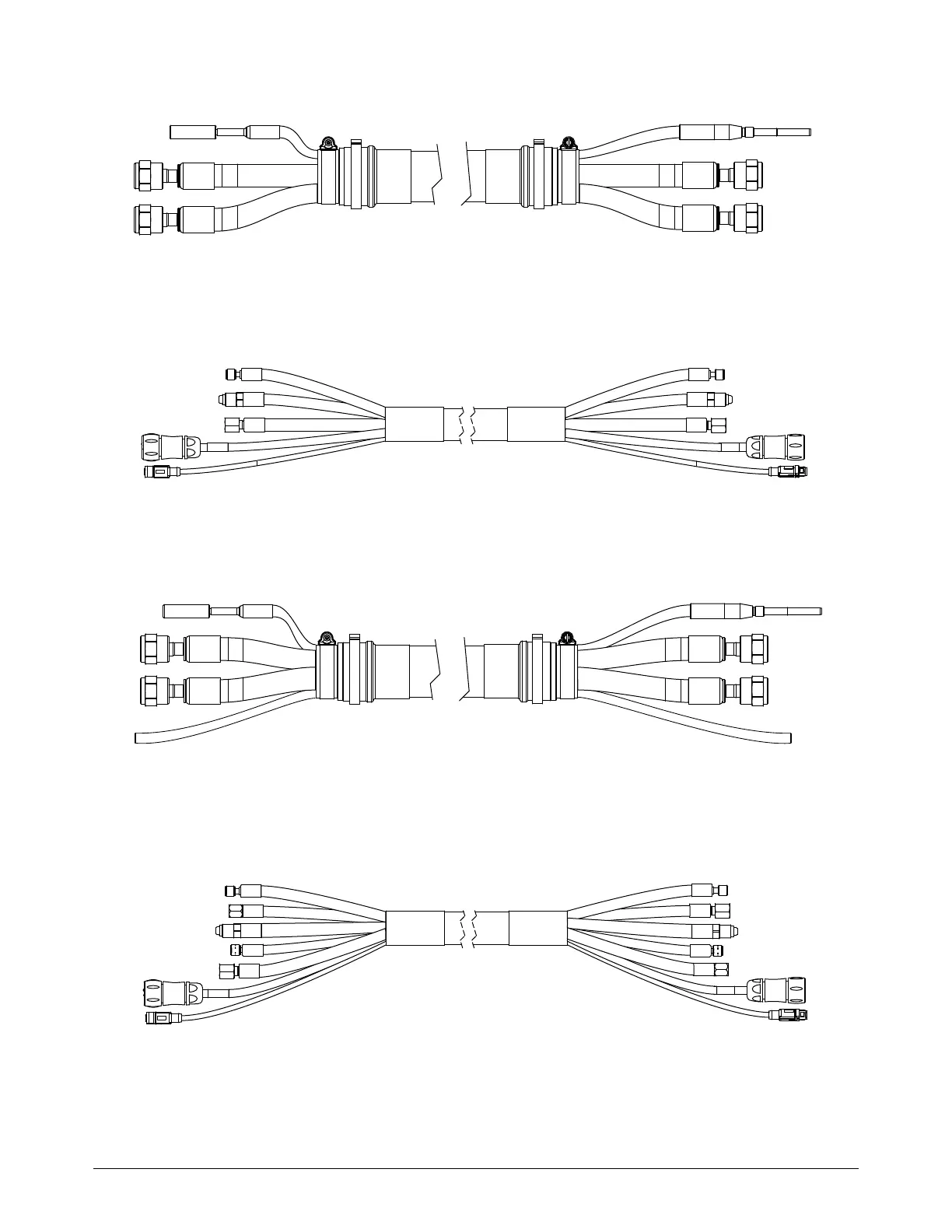

Pilot arc and coolant hose set assembly

The coolant hose set includes 1 supply hose with green bands and
1 return hose with red bands.
Power, CAN, 3-gas assembly (only for Core)

The 18 meter (59.1 feet) assembly is compatible only with the 2 meter
(6.6 feet) or 2.5 meter (8.2 feet) torch lead.
Pilot arc, coolant hose set, and shield water assembly (only for VWI and OptiMix)

The coolant hose set includes 1 supply hose with green bands and
1 return hose with red bands.
Power, CAN, and 5-gas assembly (only for VWI and OptiMix)

The 18 meter (59.1 feet) assembly is compatible only with the 2 meter
(6.6 feet) or 2.5 meter (8.2 feet) torch lead.
