Connect the power, CAN, and 3-gas assembly (Core)

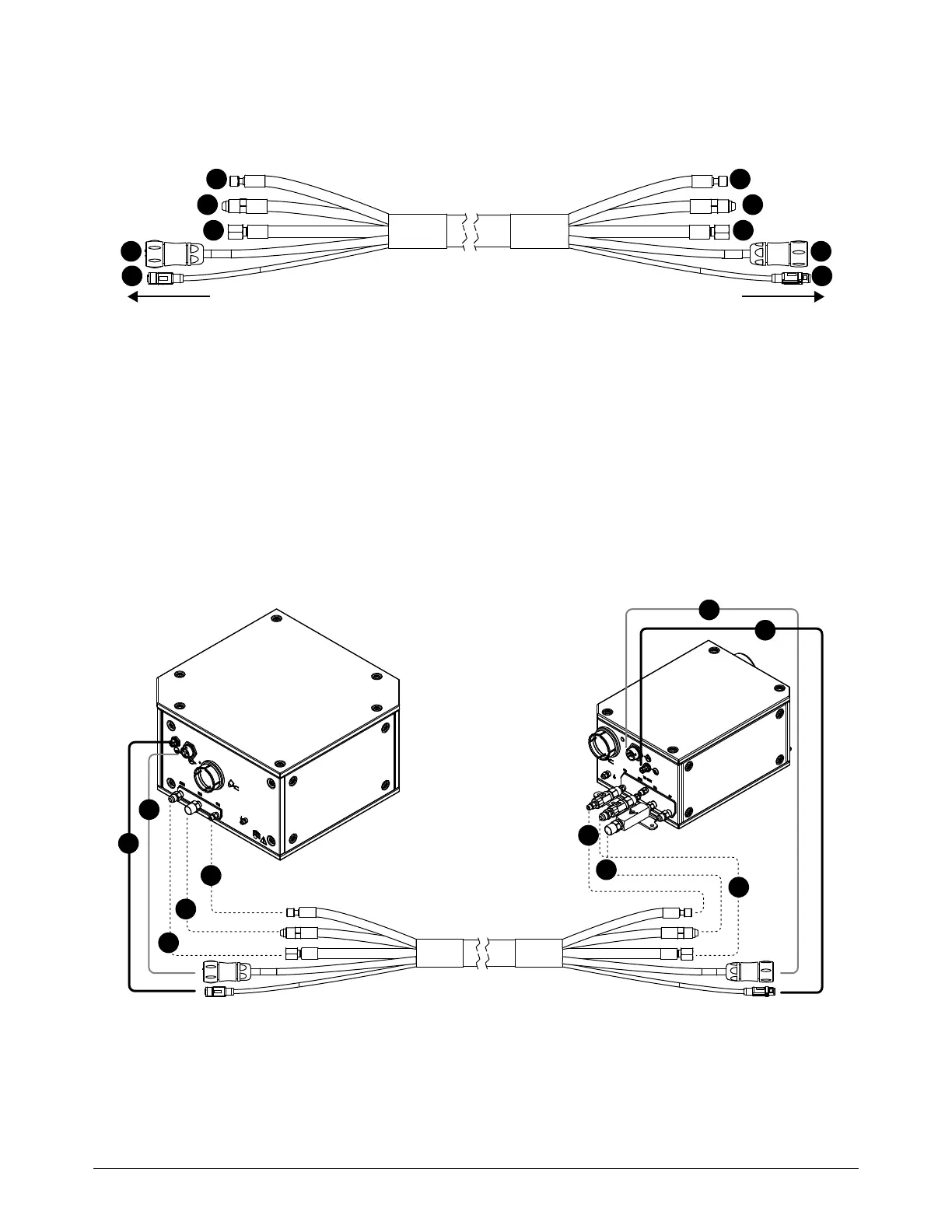

Figure 26 – Power cable, CAN cable, and 3-gas hose assembly

The 18 meter (59.1 feet) assembly is compatible only with the 2 meter
(6.6 feet) or 2.5 meter (8.2 feet) torch lead. For lengths, refer to Power,
CAN, and 3-gas assembly (Core) on page 395 of the Parts List.
Figure 27
To gas connect console
(male cable connectors)
To torch connect console
(female cable connectors)
1
2
3
4
5
1
2
3
4
5
1 Power cable
2 CAN cable
3 Oxygen hose (blue)
4 Nitrogen hose (black)
5 Air hose (black)
Core gas connect
console
TorchConnect console
1
2
3
4
5
1
2
3
5
4

Hypertherm XPR300 Specifications

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
