b. Tighten the hose clamp that holds the collar in position.
C
onnect the EasyConnect™ torch lead assembly to the TorchConnect console

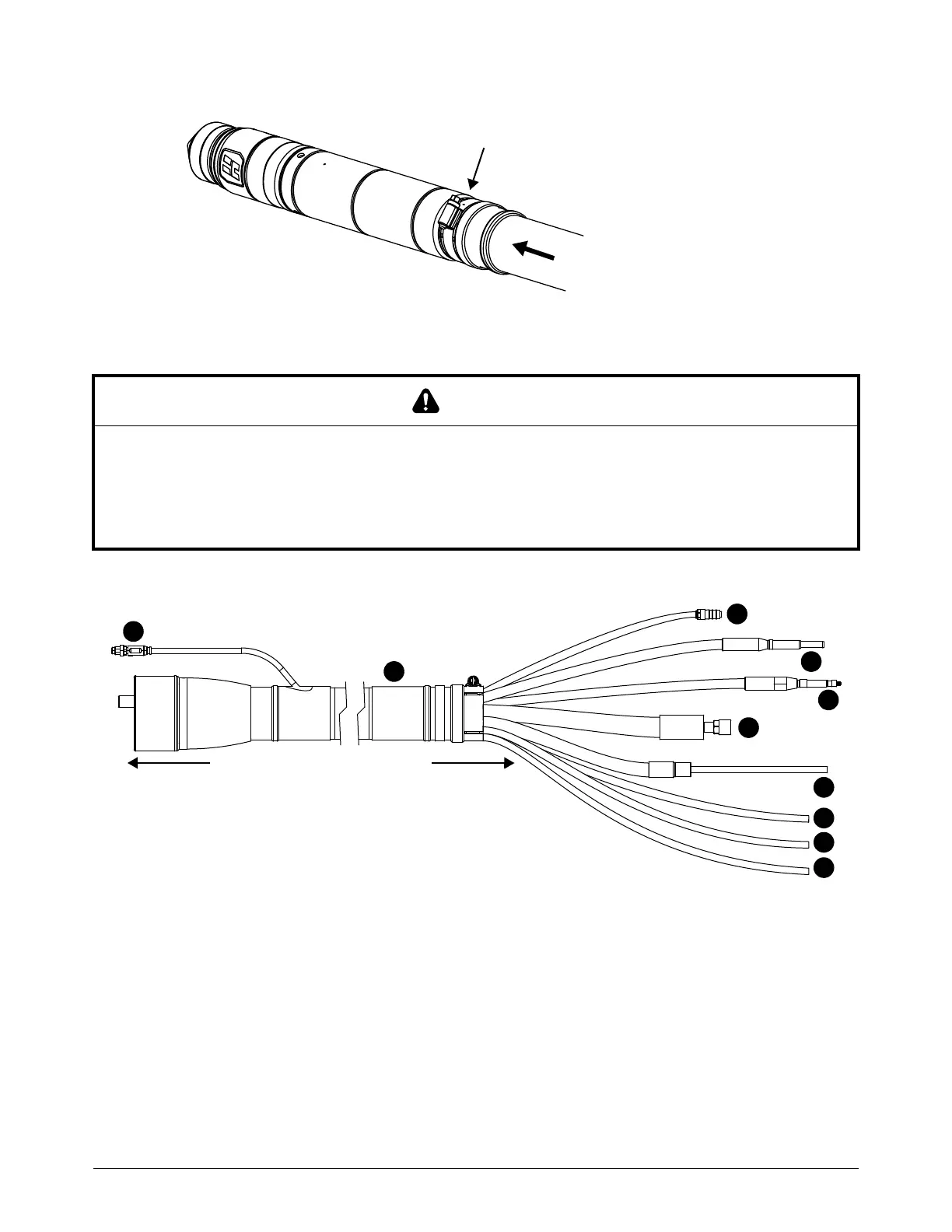

Figure 33 – Torch lead assembly
The 6 meter (20 feet) lead is compatible only with gas assemblies that are
7.5 meters (24.6 feet) or less. For lengths, refer to Torch lead on
page 399 of the Parts List.
Tighten the clamp
Move the collar in the direction of the torch
NOTICE
FOR THE BEST CUT QUALITY AND CONSUMABLE LIFE USE THE CORRECT LEAD LENGTHS
The manufactured lengths of torch and console leads are critical for system performance.
Never change the lengths of leads.Cut quality and the lifespan of consumables will be decreased if you
change the lead lengths.
7
8
9
1
2
3
4
5
6
2
To torch connect console To torch
1 Protective sleeve
2 Plasma valve cable
3 Ohmic lead
4 Pilot arc lead
5 Coolant return hose (red)
6 Coolant supply hose (green)
7 Shield gas hose
8 Plasma gas hose A
9 Plasma gas hose B
