Hypertherm XPR300 User Manual

Parts List
9
XPR300 Instruction Manual 809480 375

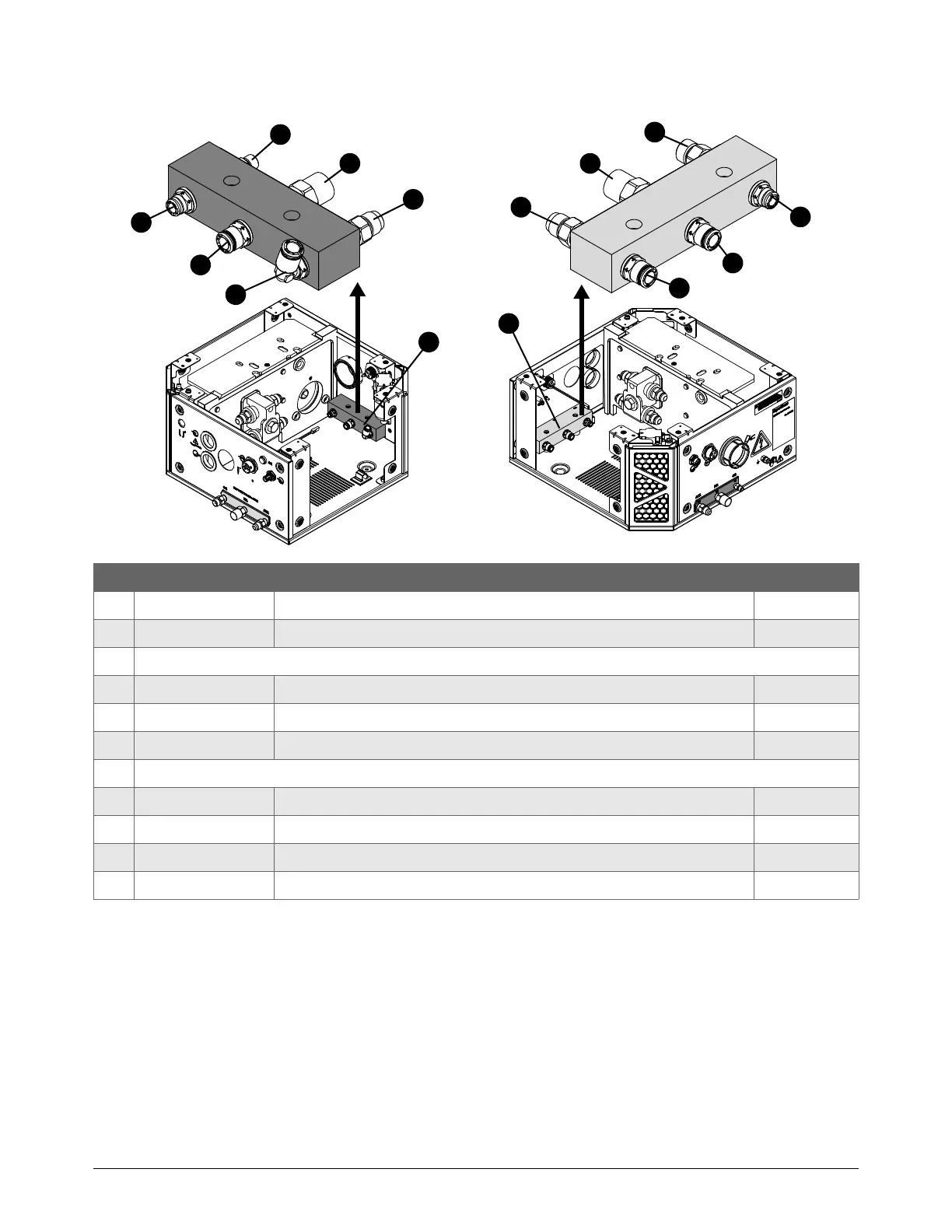

Core gas connect console manifolds and adapters
Part number Description Quantity
1 104806 Manifold: Gas output (no adapters) 1
2 104802 Manifold: Gas input (no adapters) 1
Push-to-connect adapters
3 015876 1/4 inch NPT X 1/4 inch tube 2
4 015811 1/4 inch NPT X 8 mm tube 3
5 015853 Male elbow: 1/4 inch NPT X 5/16 inch tube 1
Threaded adapters with thread sealant applied
6 015012 1/4 inch NPT X #6 male (air output and input) 2
7 015103 1/4 inch NPT X RH ‘B’ inert female (nitrogen output and input) 2
8 015116 1/8 inch NPT X RH ‘A’ male (oxygen output) 1
9 015009 1/4 inch NPT X RH ‘B’ male (oxygen input) 1
8
9
1
3
4
6
7
4
4
3
6
7
2
5

Hypertherm XPR300 Specifications

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
