Parts List
9
384 809480 Instruction Manual XPR300

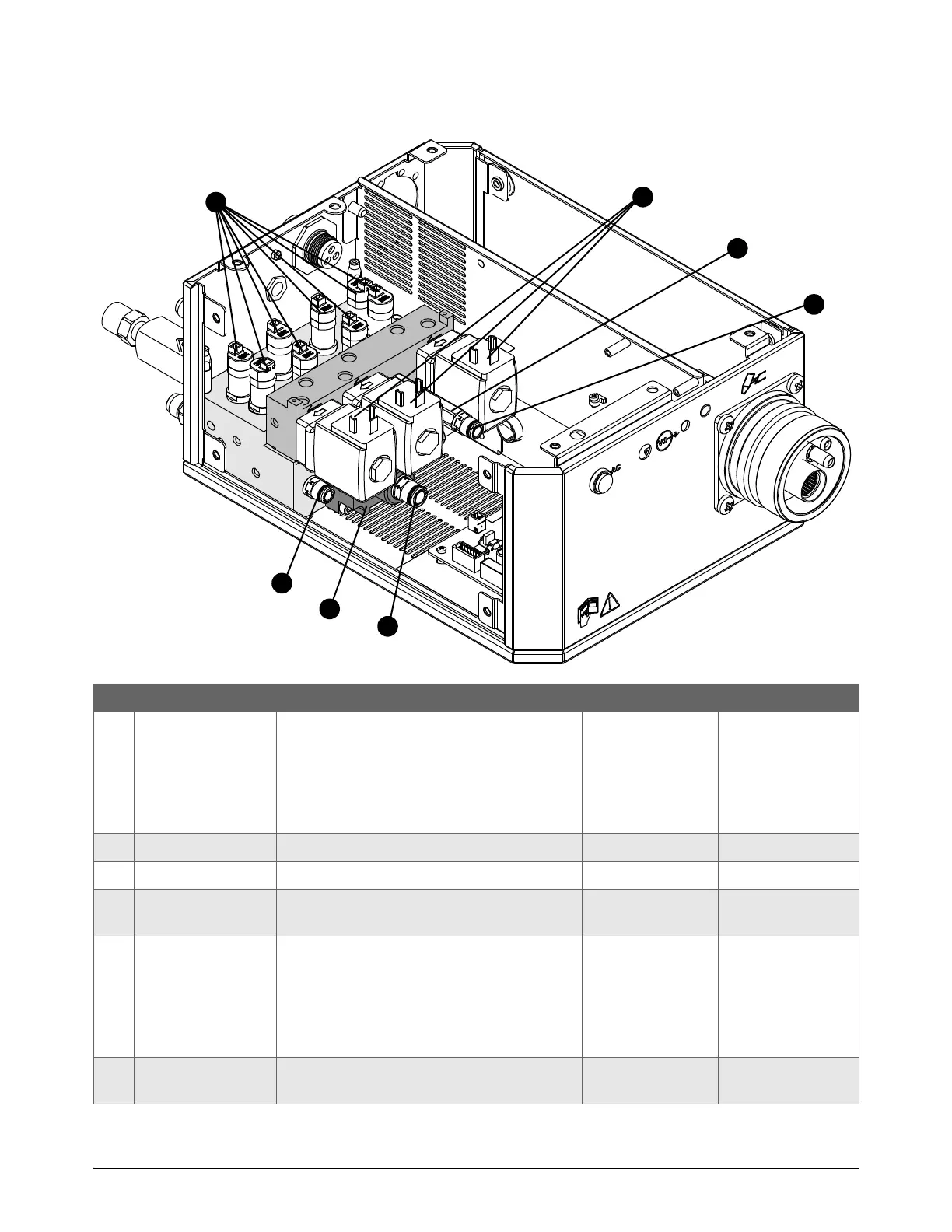

Torch connect console manifold side – view 2
Part number Description Designator Quantity
229895 Manifold assembly:
• Solenoid valves
• Proportional valves
• All manifolds
• All fittings
–1
1 229965 Solenoid valve V4 – V12 9 (8 shown)
229917 Solenoid valve (229965) tool –
2
015905 Adapter: 1/8 inch NPT O-ring seal X
1/4 inch tube
– 2
3
428756 Bottom manifold assembly:
• Bottom manifold
•Adapter
• Critical orifice
• Solenoid valve
–1
4
015811 Adapter: 1/4 inch NPT O-ring seal X 8 mm
tube
– 1
1
2
3
4
5
6
2
