Hypertherm XPR300 User Manual

Parts List
9
400 809480 Instruction Manual XPR300

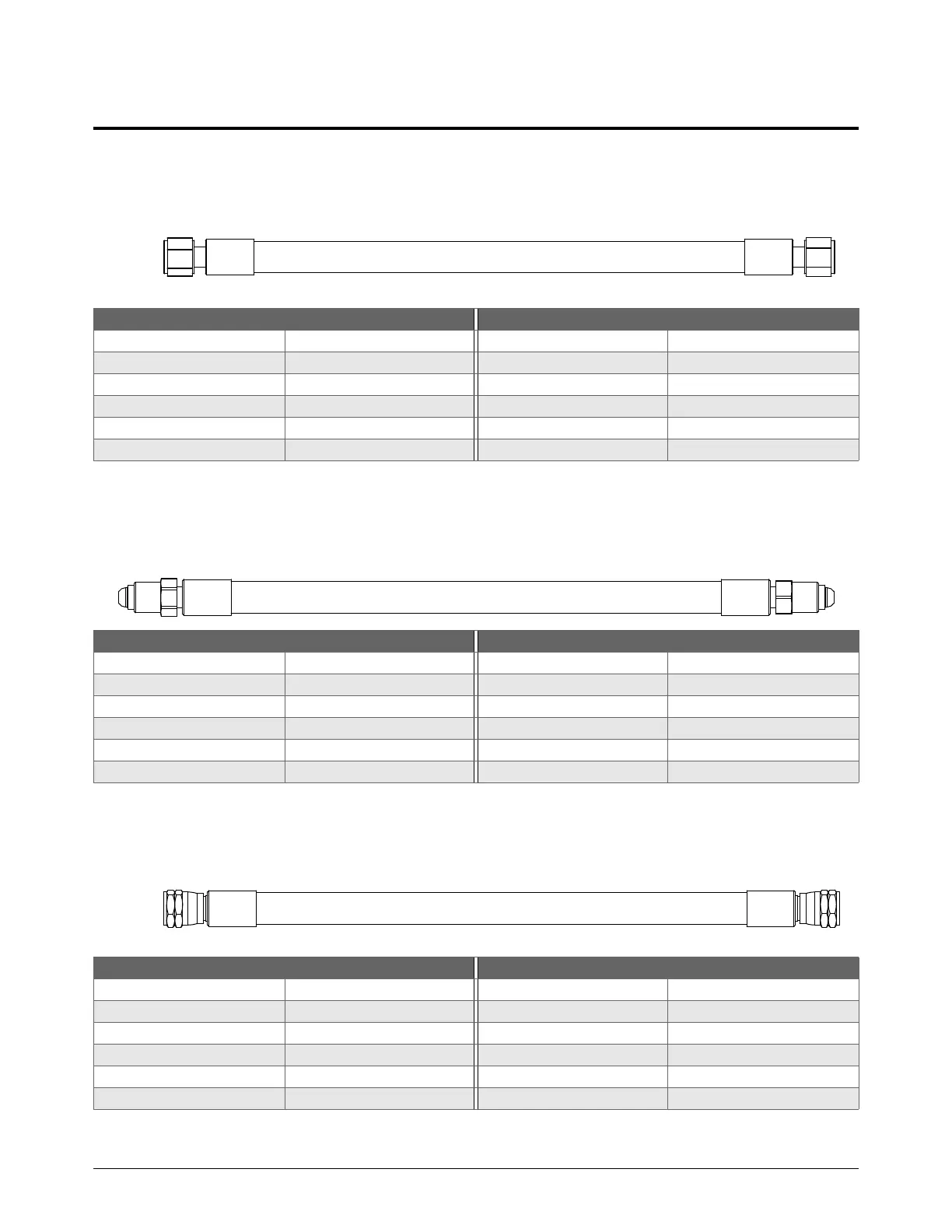

Supply hoses
Oxygen hose (blue)
Fittings: RH type “B” female
Nitrogen or Argon hose (black)
Fittings: RH type “B” male
Air hose (black)
Fittings: JIC-6 female
Part number Length Part number Length
124003 3 m (9.8 feet) 124009 25 m (82 feet)
124004 4.5 m (14.8 feet) 124107 30 m (98.4 feet)
124005 7.5 m (24.6 feet) 124010 35 m (114.8 feet)
124006 10 m (32.8 feet) 124011 45 m (147.6 feet)
124007 15 m (49.2 feet) 124012 60 m (196.9 feet)
124008 20 m (65.6 feet) 124013 75 m (246.1 feet)
Part number Length Part number Length
124014 3 m (9.8 feet) 124020 25 m (82 feet)
124015 4.5 m (14.8 feet) 124108 30 m (98.4 feet)
124016 7.5 m (24.6 feet) 124021 35 m (114.8 feet)
124017 10 m (32.8 feet) 124022 45 m (147.6 feet)
124018 15 m (49.2 feet) 124023 60 m (196.9 feet)
124019 20 m (65.6 feet) 124024 75 m (246.1 feet)
Part number Length Part number Length
124025 3 m (9.8 feet) 124031 25 m (82 feet)
124026 4.5 m (14.8 feet) 124109 30 m (98.4 feet)
124027 7.5 m (24.6 feet) 124032 35 m (114.8 feet)
124028 10 m (32.8 feet) 124033 45 m (147.6 feet)
124029 15 m (49.2 feet) 124034 60 m (196.9 feet)
124030 20 m (65.6 feet) 124035 75 m (246.1 feet)

Hypertherm XPR300 Specifications

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
