435

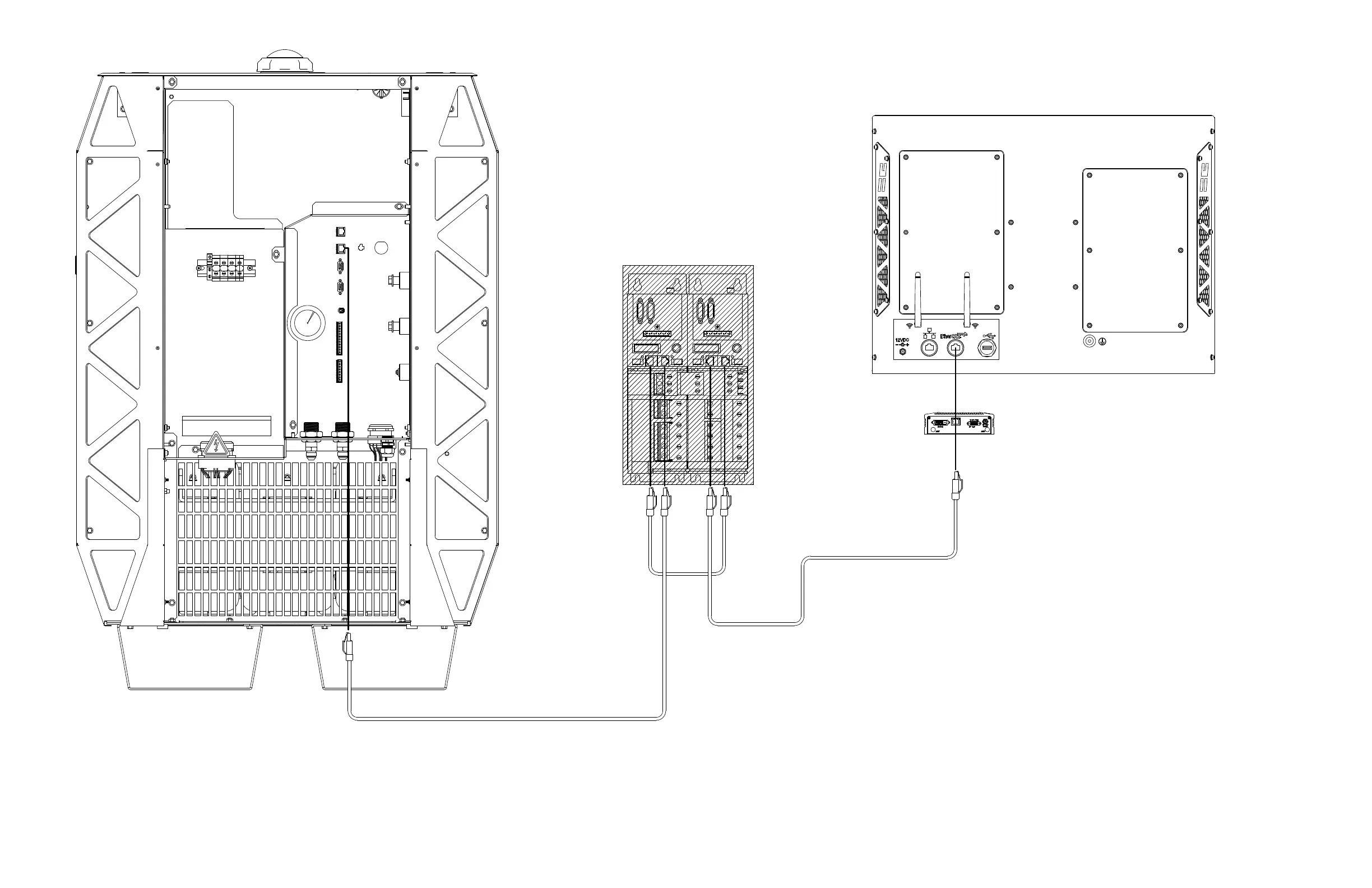

EtherCAT connection to EDGE Connect/TC (Sheet 19 of 22)

EtherCAT cable

Notes:

1. Hypertherm EDGE Connect/TC CNC examples shown

with EtherCAT drives. Please see the CNC documentation

for installation and connection details.

2. Torch height controller not shown. See the THC

documentation for voltage divider installation and

connection details.

EtherCAT cable

013403

Other manuals for Hypertherm XPR300

Questions and Answers:

Need help?

Do you have a question about the Hypertherm XPR300 and is the answer not in the manual?

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
