Installation
3
94 809480 Instruction Manual XPR300

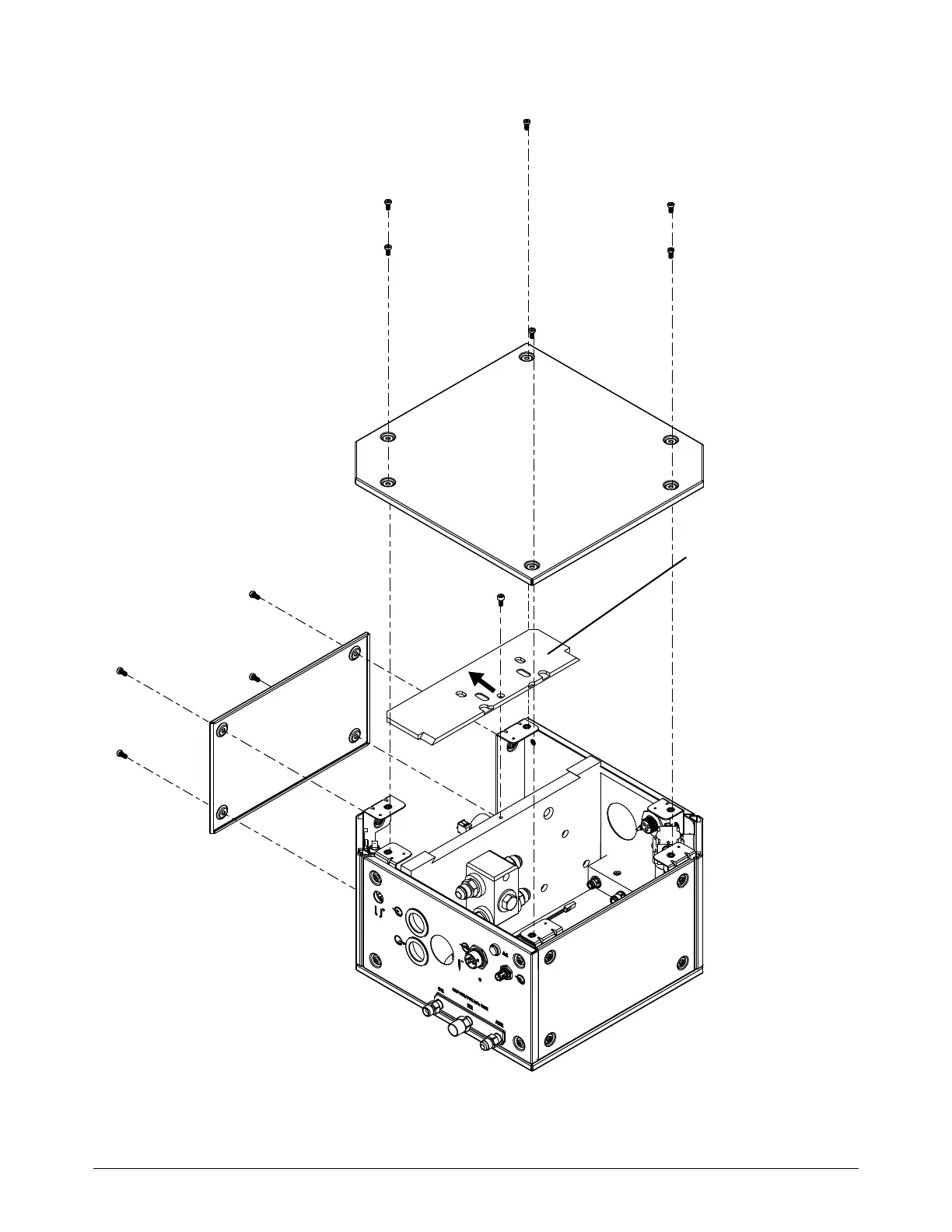

Figure 11 – Remove panels from the gas connect console
Move the panel
horizontally to remove it.
