3.4 Wiring connections (for connectors)

3-26

3. Wiring

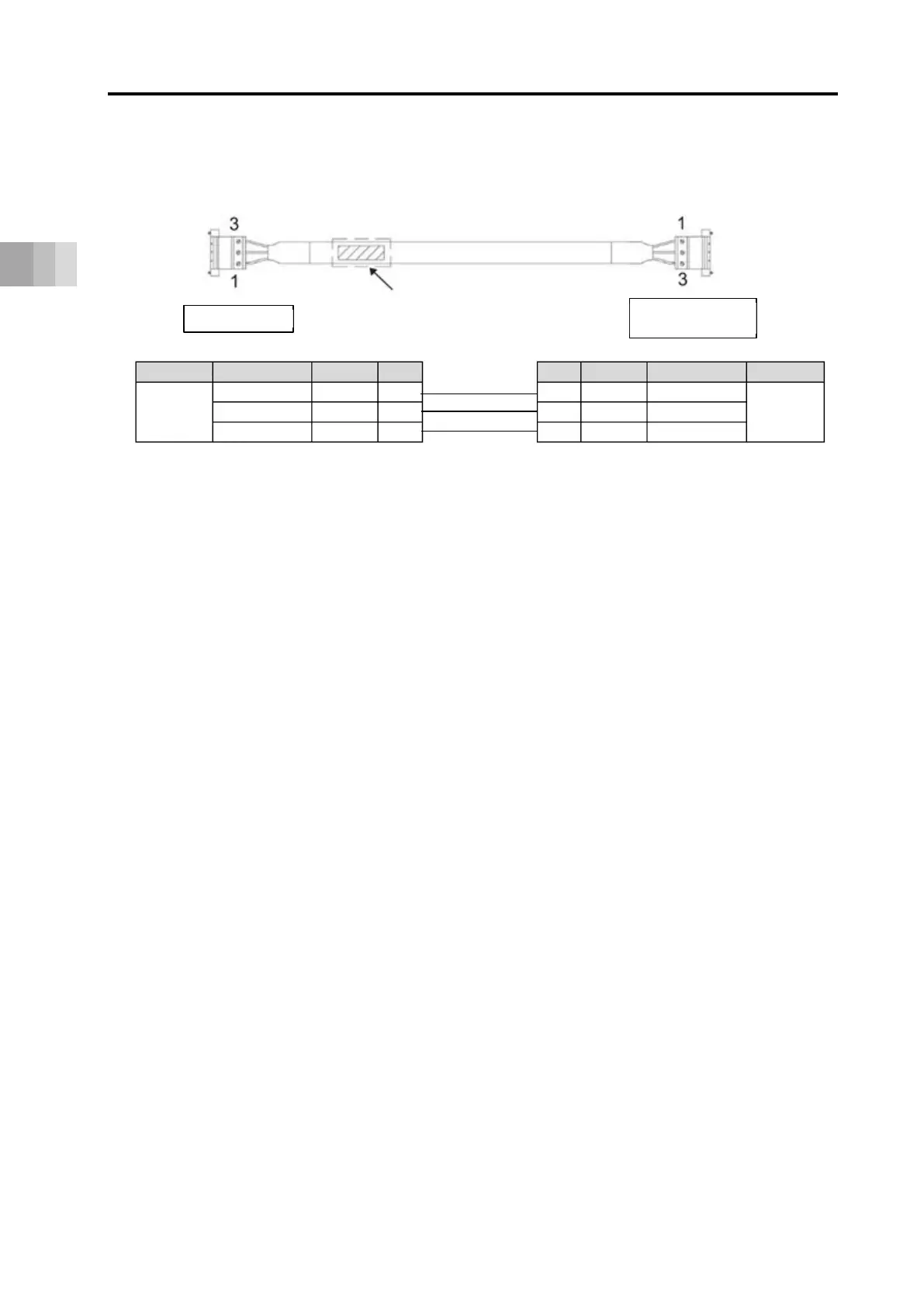

(1) Regenerative resistor unit connection cable (CB-ST-REU□□□) □□□ indicates the cable length

(Example) 010 = 1 m

Controller side

Display of cable model code

Regenerative resistor

unit side

Wiring Color Signal No.

KIV

1.0 mm

(AWG17)

Light blue RB+ 1

Brown RB- 2

Green/Yellow PE 3

No. Signal Color Wiring

1 RB+ Light blue KIV

1.0 mm

(AWG17)

2 RB- Brown

3 PE Green/Yellow
