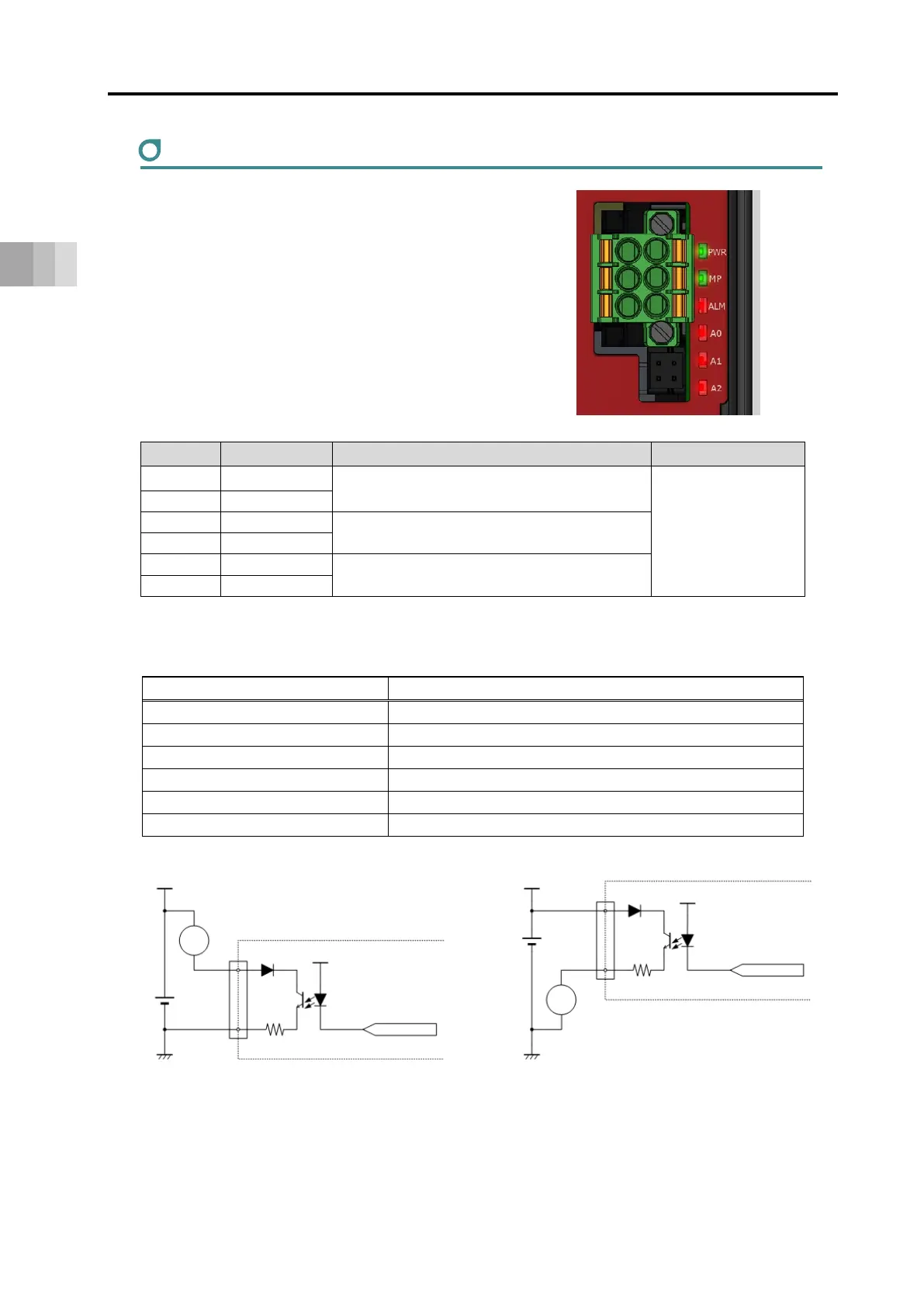

3.2 Electrical specifications
3-10
3. Wiring
Status output connector for motor drive DC power supply PSA-200
It should output the status of the power supply unit.
The output should be linked to PWR, MP and ALM
LED lamps.
Keep it unconnected when not used.
The output should be the photocoupler open collector output.
As it does not have common terminals, it is applicable for both NPN/PNP by wiring layout.
Symbol Specification
Number of output points 3 points
Rated load voltage 24 V DC ±10%
Max. load current 50 mA per circuit
Leakage current Max. 0.1 mA per point
Residual voltage 2 V or less
Isolation type Photocoupler isolation
* When current higher than the maximum load current flows, the circuit should break and the
output should become open.
24 V
External
power
Load
Internal power
10 Ω
Signal output
NPN connection
24 V
External
power
Load
Internal power
10 Ω
Signal output
PNP connection
Pin No. Signal name Content Remark
1 * ALM-
Alarm contact output
Photocoupler
isolation open
collector output
2 *
A
LM+
3 MP-
Motor power supply contact output
4 MP+
5 PWR-
Control power supply contact output
6 PWR+
6 5
4 3
2 1
