4.4 I/O signals
4-14
4. Operation
[*ALM] signal: Alarm output
● Turns ON when the ELECYLINDER is in normal status.
Turns OFF when an alarm occurs.
● Always monitor the *ALM signal using the master device.
If it turns OFF, immediately take appropriate safety countermeasures with the equipment
as a whole.
→ For details, refer to "7.4 Troubleshooting by alarm groups".

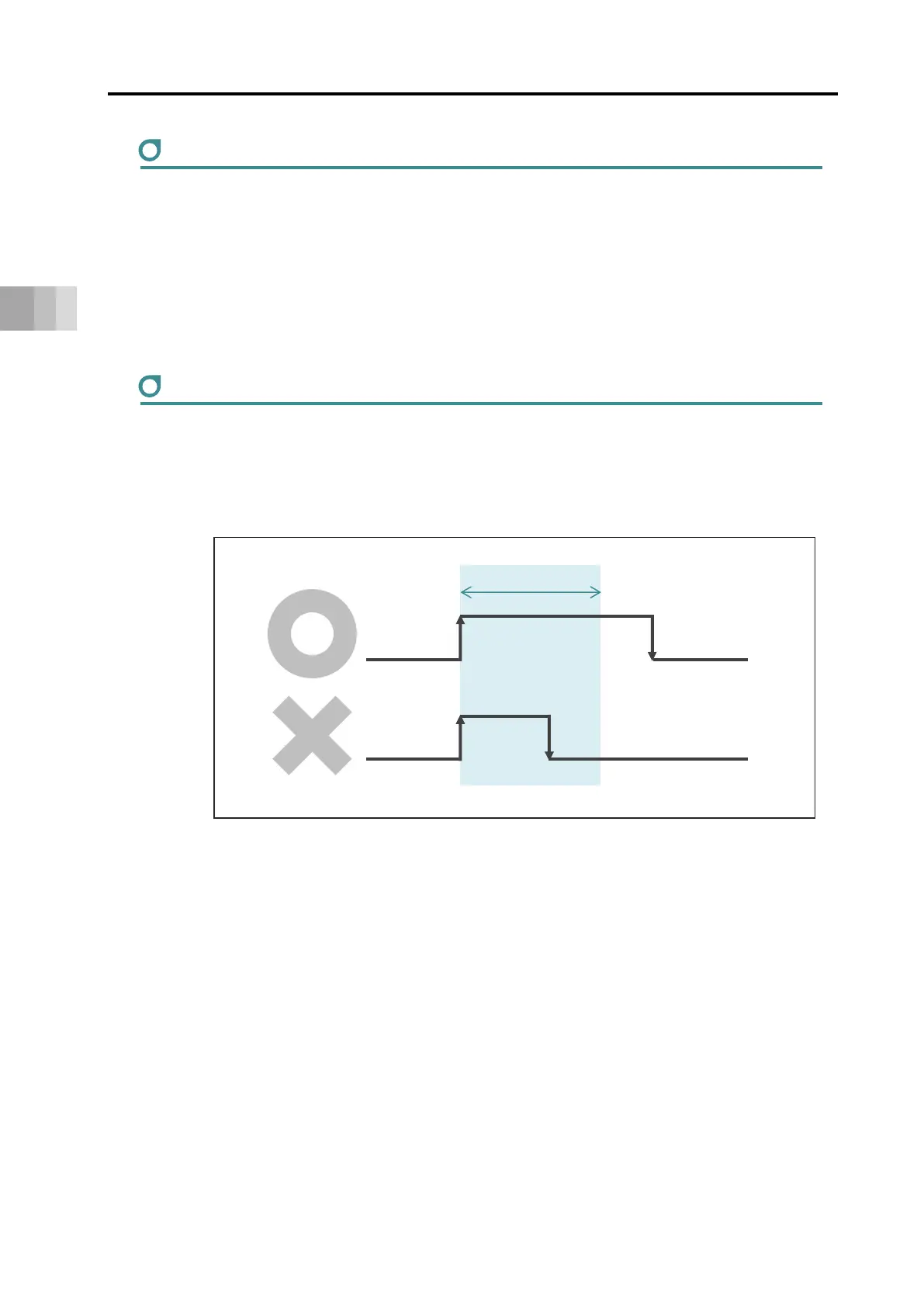

Signal input time constant
In order to prevent mis-operation due to chattering or noise, [ST0], [ST1] and [RES] signals are
set with a 6ms input time constant.
For signals less than 6ms the device will not consistently recognize the signal, so input signals
continuously for 6ms or longer.
6 ms
Input signal
(6 ms or more)
Input signal
(Less than 6 ms)
