3.5 Wiring connections (for cables)
3-34
3. Wiring
24 V DC power supply wiring
Connect the power wiring to the power I/O cable.
Connect the 24 V DC power supply to the terminal block after terminal-processing
the 24 V and 0 V wires of the power I/O cable.
Connect the 24 V wire (insulation color: red) to the +24 V terminal of the 24 V DC
power supply.
Connect the 0 V wire (insulation color: black) to the 0 V terminal of the 24 V DC
power supply.
Wiring
color
Signal
abbreviation
Function
overview
Required specifications
Red 24 V
Power supply
input
Control power voltage: 24 V DC ±10%
Control power capacity: 0.32 A
Brake power supply: 0.875 A
(when in overexcitation)
(Option)
When teaching pendant used:0.15 A
Black 0 V Ground
1
2

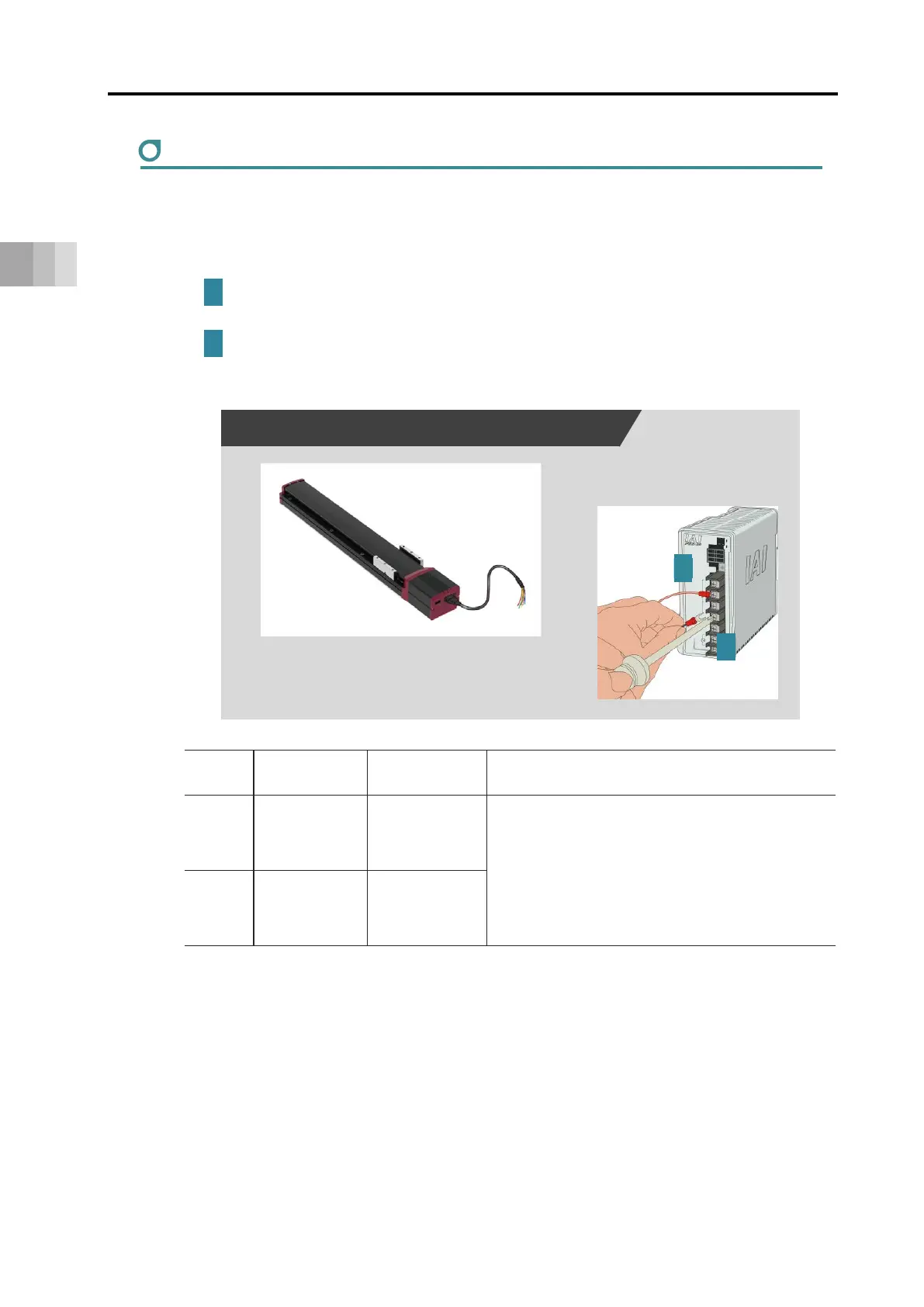

24 V DC power supply connection diagram
ELECYLINDER / Power I/O cable
24 V DC power supply
1
2
