3.3 Connection arrangement diagram
3-14
3. Wiring

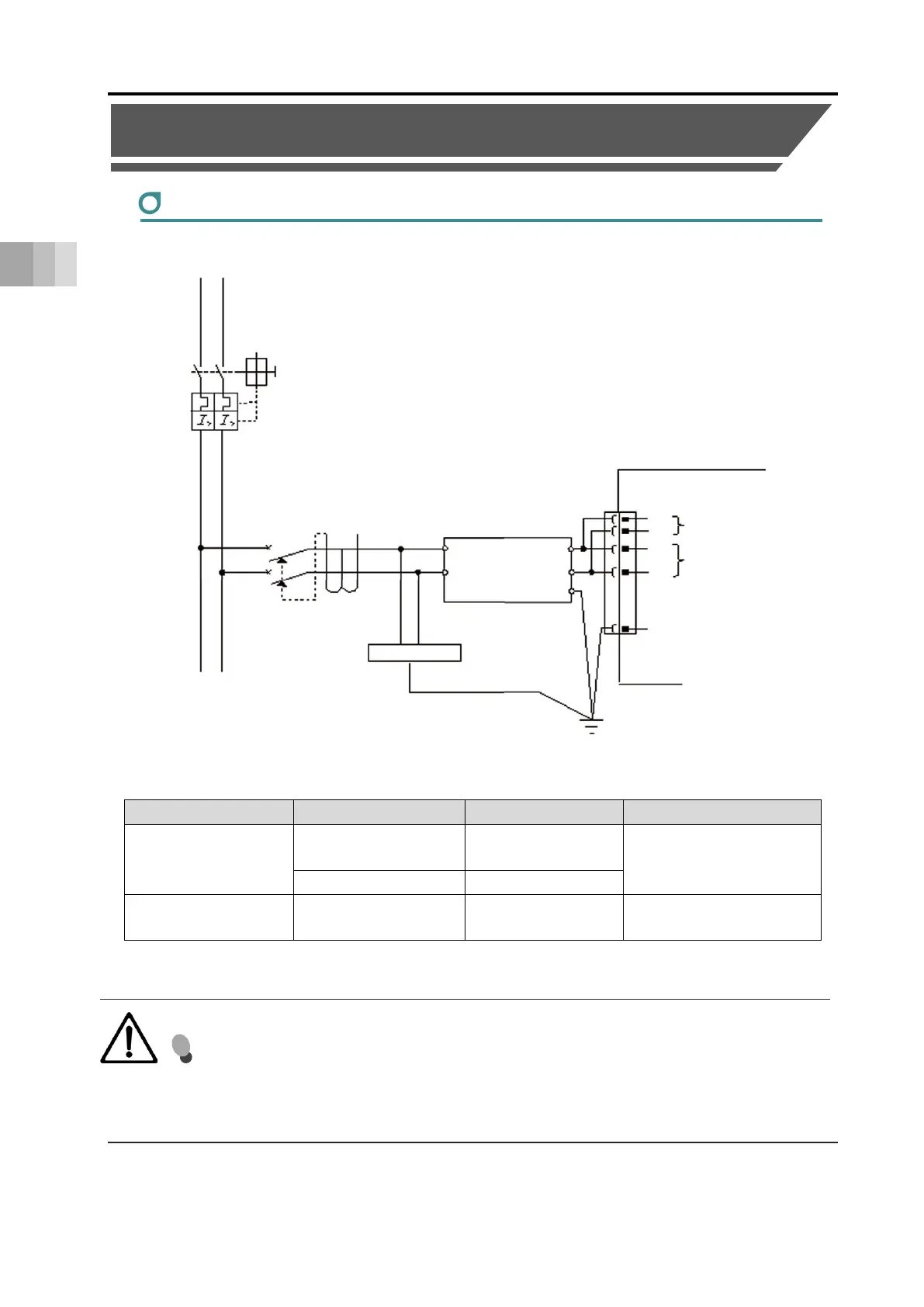

3.3 Connection arrangement diagram
Motor drive DC power supply PSA-200
[1] Main power circuit
(Note) The power voltage of the controller (100 V AC or 200 V AC) cannot be changed.
Note: It is the model code when one unit of noise filter is connected to one unit of PSA-200.
Caution
For the noise filter, it is recommended to have one unit connected to one unit of
PSA-200.
Attach the surge protector if necessary considering the power supply condition.
It is recommended to attach it even though it is not mandatory.
Parts name Model code Supplier Position to attach
Noise filter
NF2010A-UP (Note)
SOSHIN ELECTRIC
CO., LTD
Attach in range of 300 mm
or less from controller
NAC-10-472 COSEL
Surge protector R·A·V-781BWZ-2A
Okaya ELECTRIC
CO., LTD
Attach at the input
terminal of noise filter
L1 L2
L1
L1C
L2C
PE
L2
Circuit breaker
Noise filter
Surge protector
Earth leakage breaker
Power supply connector
Motor drive DC power supply
Motor power suppl
Control power supply
Grounding resistance
at 100 Ω or less
(Grounding Class D)
To Next Page
