3.4 Wiring connections (for connectors)
3-23
3. Wiring

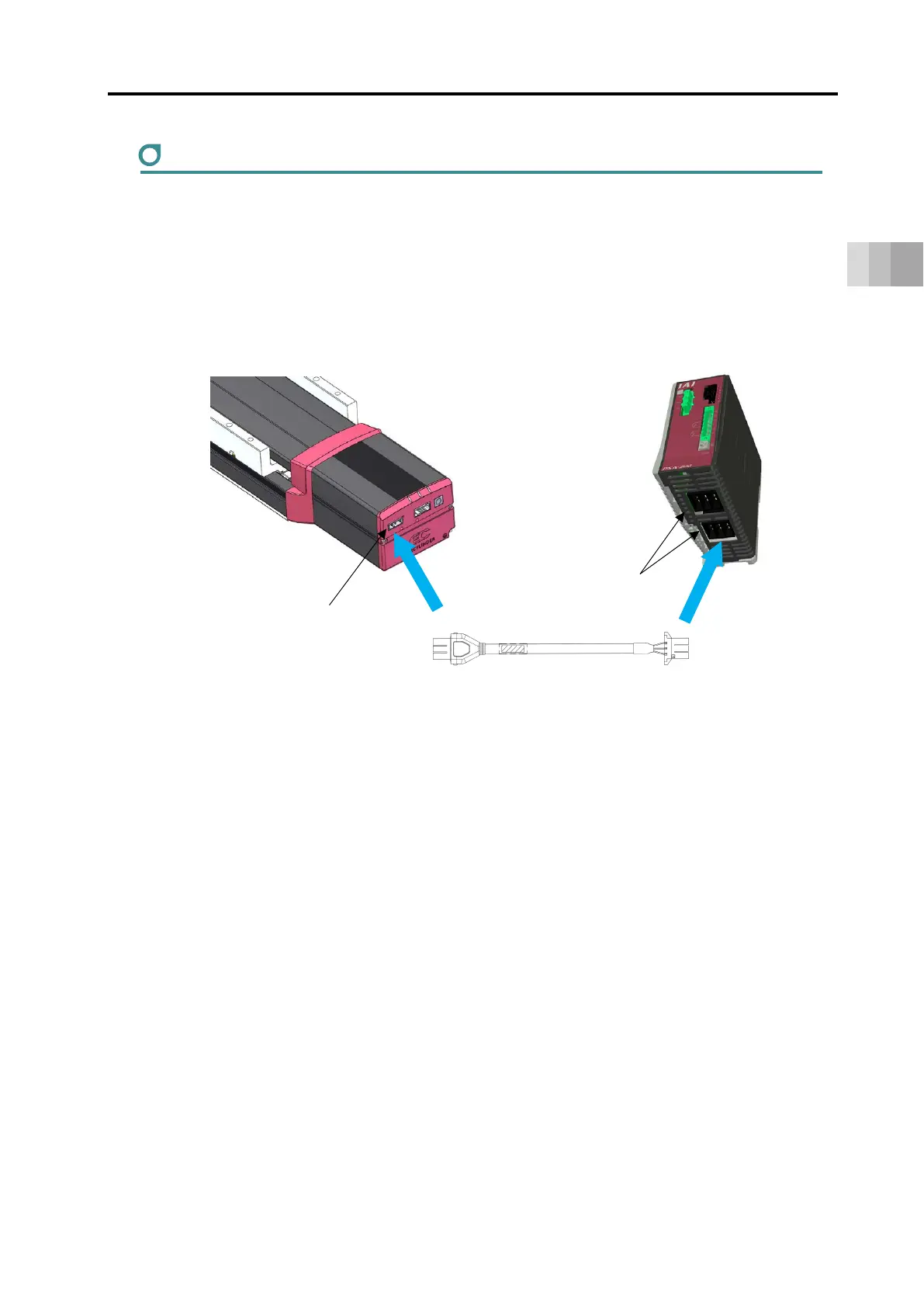

Connectivity between actuator units and motor drive DC power supply
Set up a connectivity between actuator units and motor drive DC power supply using the
motor power supply cable CB-EC-PW□□□-RB.
As the motor drive DC power supply is capable for connection of six axes, there are six
connectors prepared.
Actuator main unit Motor drive DC power supply
Power supply
connector
Power supply connector
Motor power supply cable
Model: CB-EC-PW□□□-RB
Max. length: 10 m
