2.4 How to Install motor drive DC power supply PSA-200
2-10
2. Installation
2.4 How to Install motor drive DC power supply PSA-200
How to install, Orientation of installation
The way to install the unit should be by affixing with screws or on DIN rails.
→ Refer to “Chapter 9 External Dimensions” for dimensions.

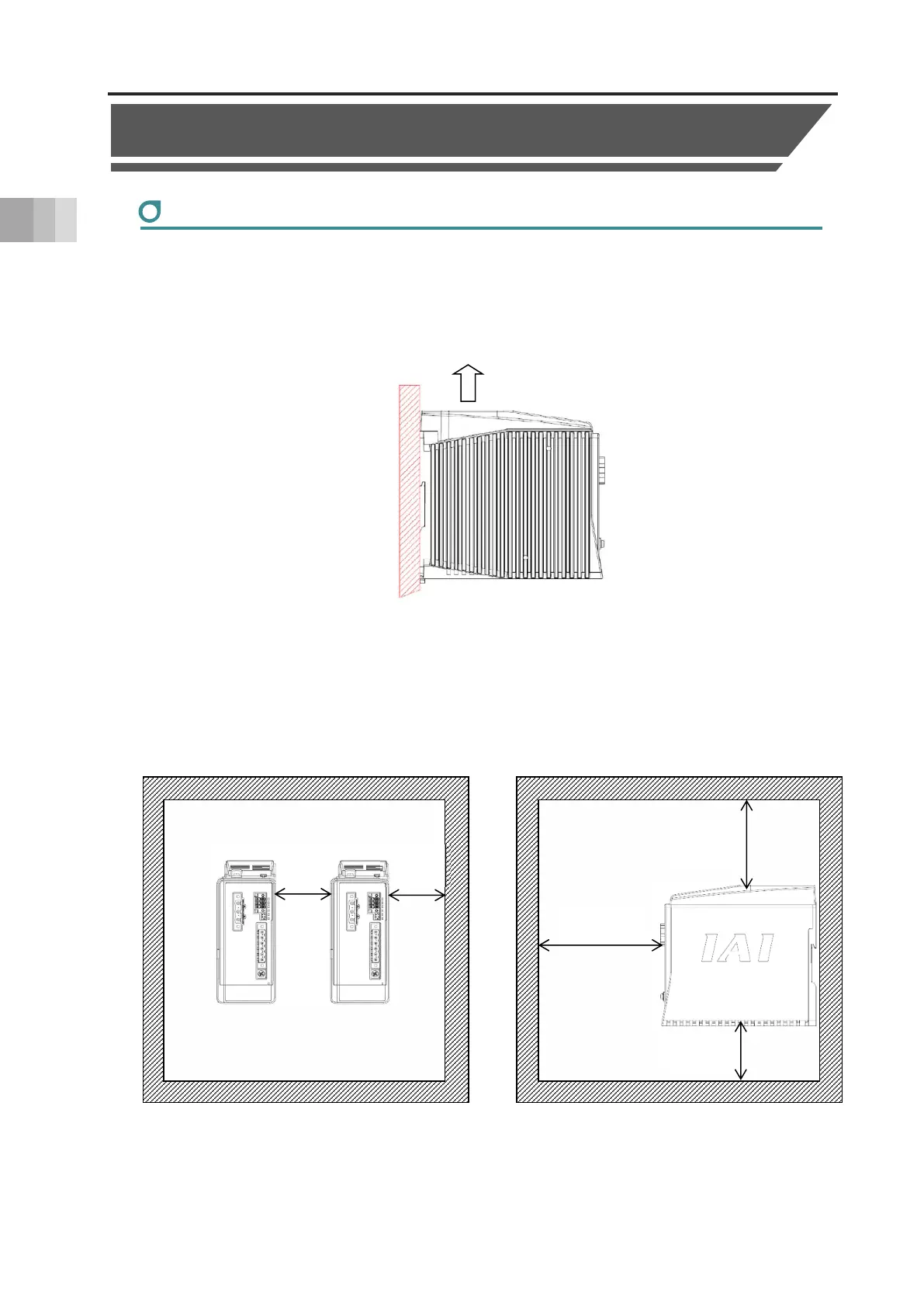

Install the unit vertically as shown in the figure below for orientation.
Air flow for forced air cooling
Orientation of installation inside control panel
Follow the figure below for the minimum distance to a wall and the minimum distance to
peripheral devices. Design and build the control panel considering the ambient temperature for
use of this power supply unit falling into the temperature range from 0 degC to 55 degC at the
installation place.
Restriction of ambient environment (PSA-200)
40 mm
or more
100 mm
or more
50 mm
or more
10 mm
or more
10 mm
or more
