3.2 Electrical specifications
3-13
3. Wiring

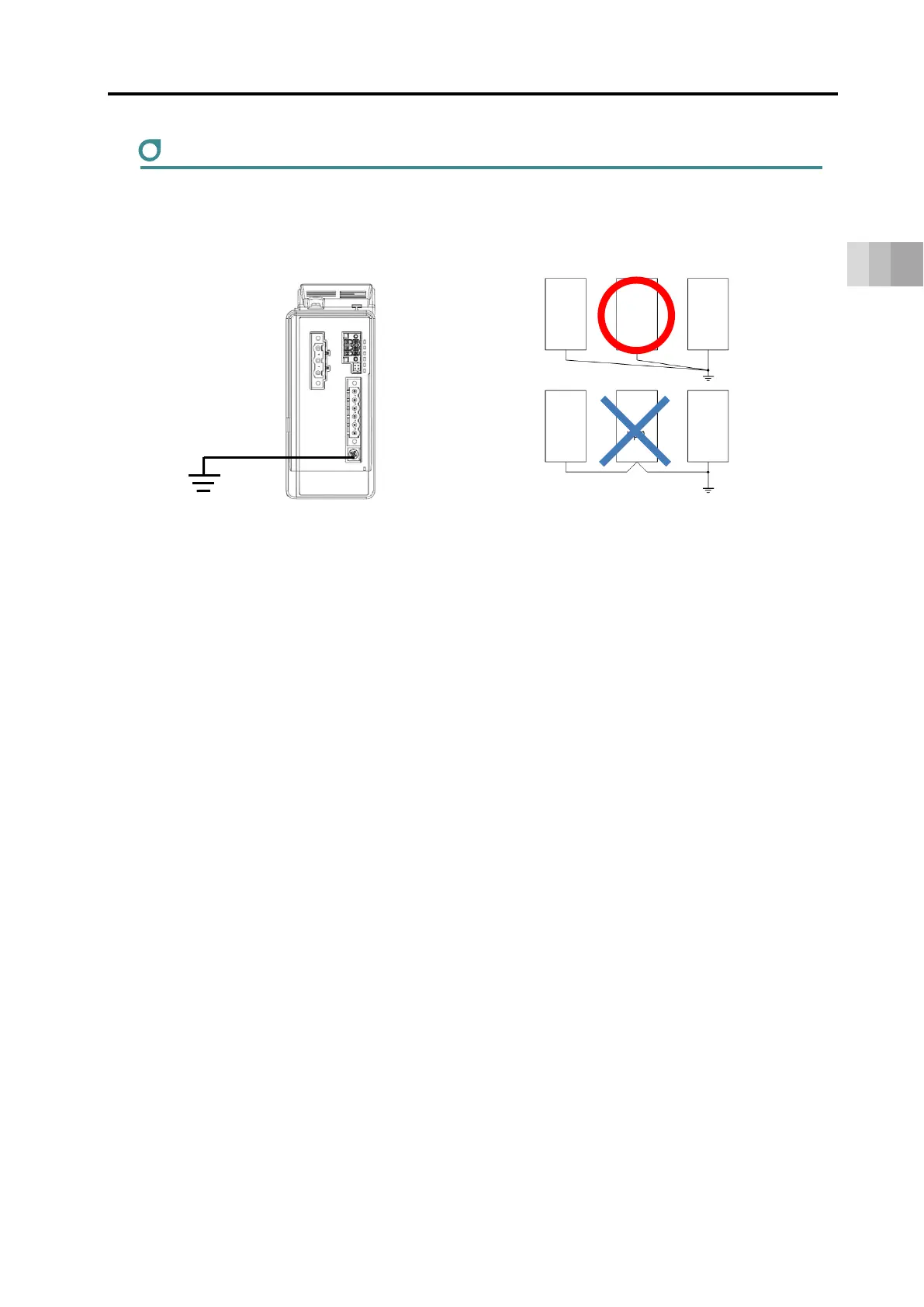

Grounding terminal motor drive DC power supply PSA-200
Make sure to perform grounding as shown in the figure below in order to prevent electric
shock and electrostatic charge, to improve noise durability performance and to control
unexpected radiation.
Class D for grounding class
(Grounding No. 3 in old standard:
Grounding resistance at 100 Ω or less)
Make sure to ground individually for each
power supply and do not share it with other
devices or link with them.
PSA-200
PSA-200
Other
equipment
Other
equipment
Other
equipment
Other
equipment
