3.5 Wiring connections (for cables)
3-33
3. Wiring
● The wiring on the opposite side of the connector has not been processed.
● The cable length is available from 1 m to 10 m.
Specify the length in increments of 1 m.
● The following shows a sample model number.
Cable length 1 m → CB-EC-PWBIO010-RB
Cable length 3 m → CB-EC-PWBIO030-RB
Cable length 10 m → CB-EC-PWBIO100-RB
Power I/O cable connection
Connect the power I/O cable.
Insert the connector until it clicks into place.
Caution
The connector must be inserted in a given direction.
A section of the connector protrudes. Orient this section downwards and insert until it
clicks into place.
Take appropriate care to prevent unused wiring in the loose wire end on the cable from
shorting out other wires by protecting them with insulation tape.

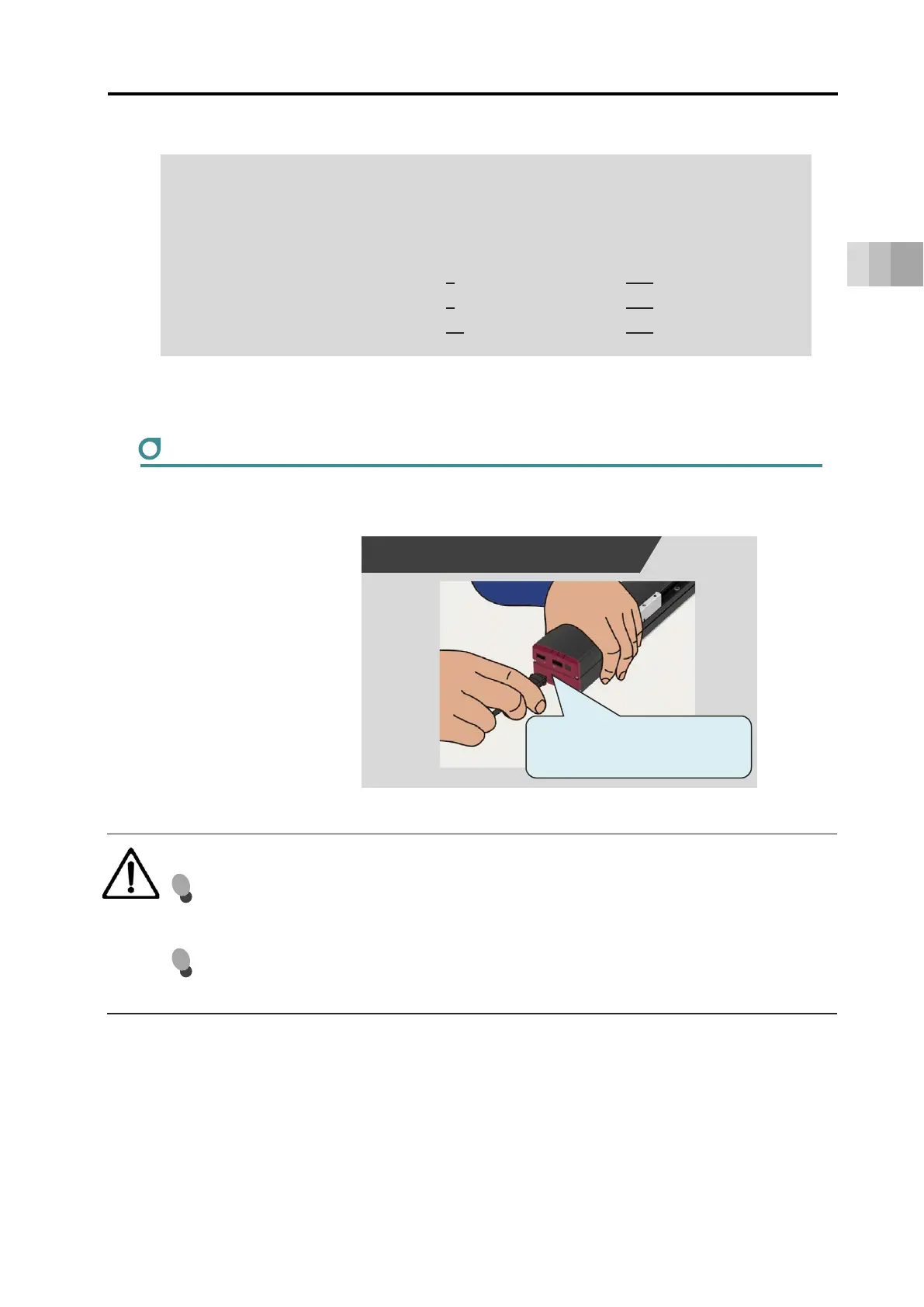

Cable connection diagram
Insert the connector
until you hear the "click".
To Next Page
