IAI ELECYLINDER EC-S13 - DC Power Supply Wiring

3.4 Wiring connections (for connectors)
3-27
3. Wiring
(2) Actuator main unit
Here the wiring connection method with a power I/O connector is introduced.

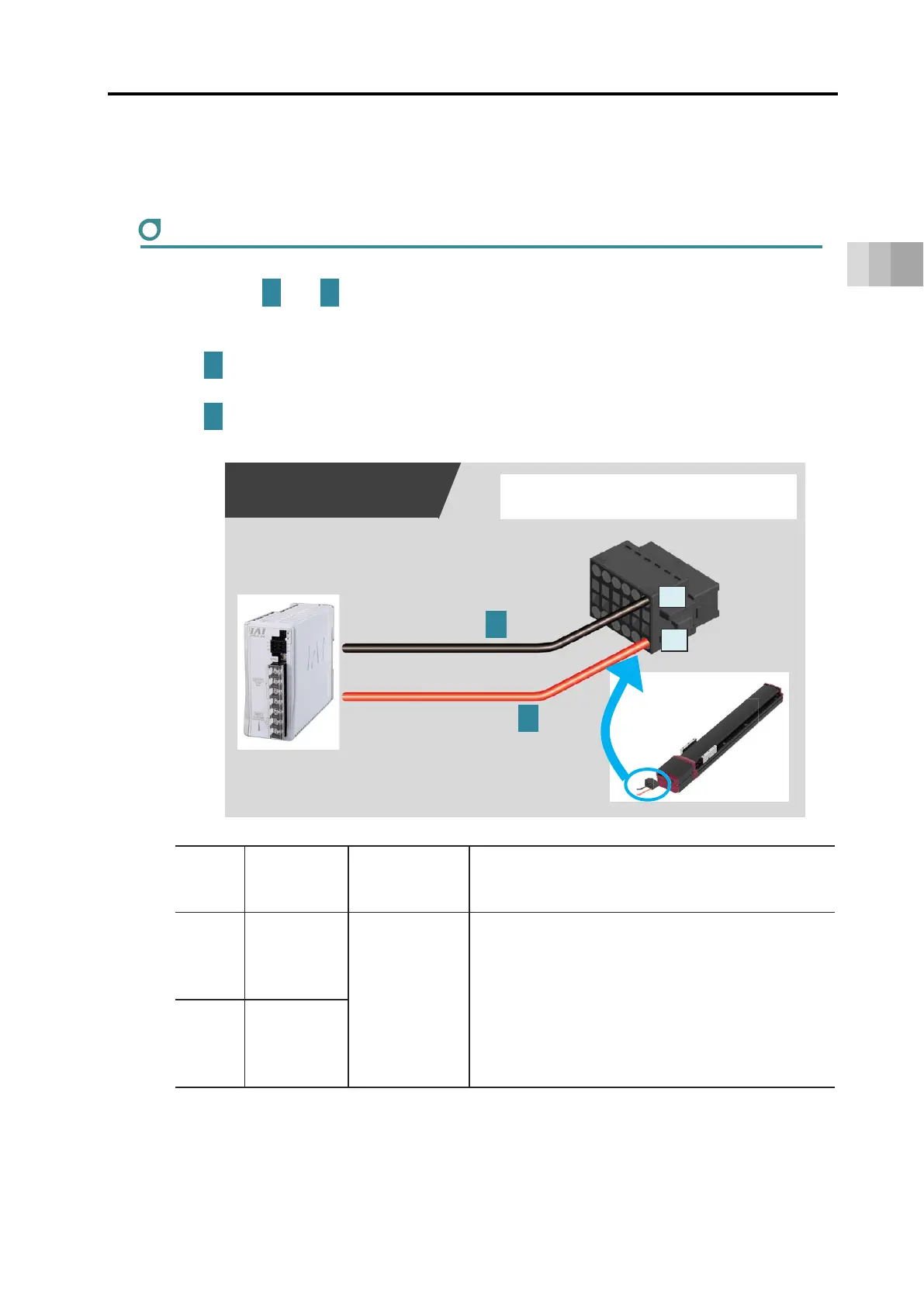

24 V DC power supply wiring
Connect the power wiring to the power I/O connector.
Connect the and wiring to the connector terminal block while referring to the
connection diagram.
Connect the [B1] connector terminal and the +24 V terminal of the 24 V DC power
supply.
Connect the [A1] connector terminal and the 0 V terminal of the 24 V DC power
supply.
Pin
No.
Connector
nameplate
name
Compatible
wire
diameter
Required specifications
B1 24 V
KIV 0.75 mm
2
(AWG18)
Control power voltage: 24 V DC ±10%
Control power capacity: 0.32 A
Brake power supply: 0.875 A
(when in overexcitation)
(Option)
When teaching pendant used:0.15 A
Wiring length: 10 m or less
A1 0 V
1 2
1
2
24 V DC power supply
connection diagram
Before starting connector wiring,
check the details on pages 3-30 to 31
0 V
Power I/O connector
1
2
+24 V
A1
B1
