1.5 Accessories
1-32
1. Specifications

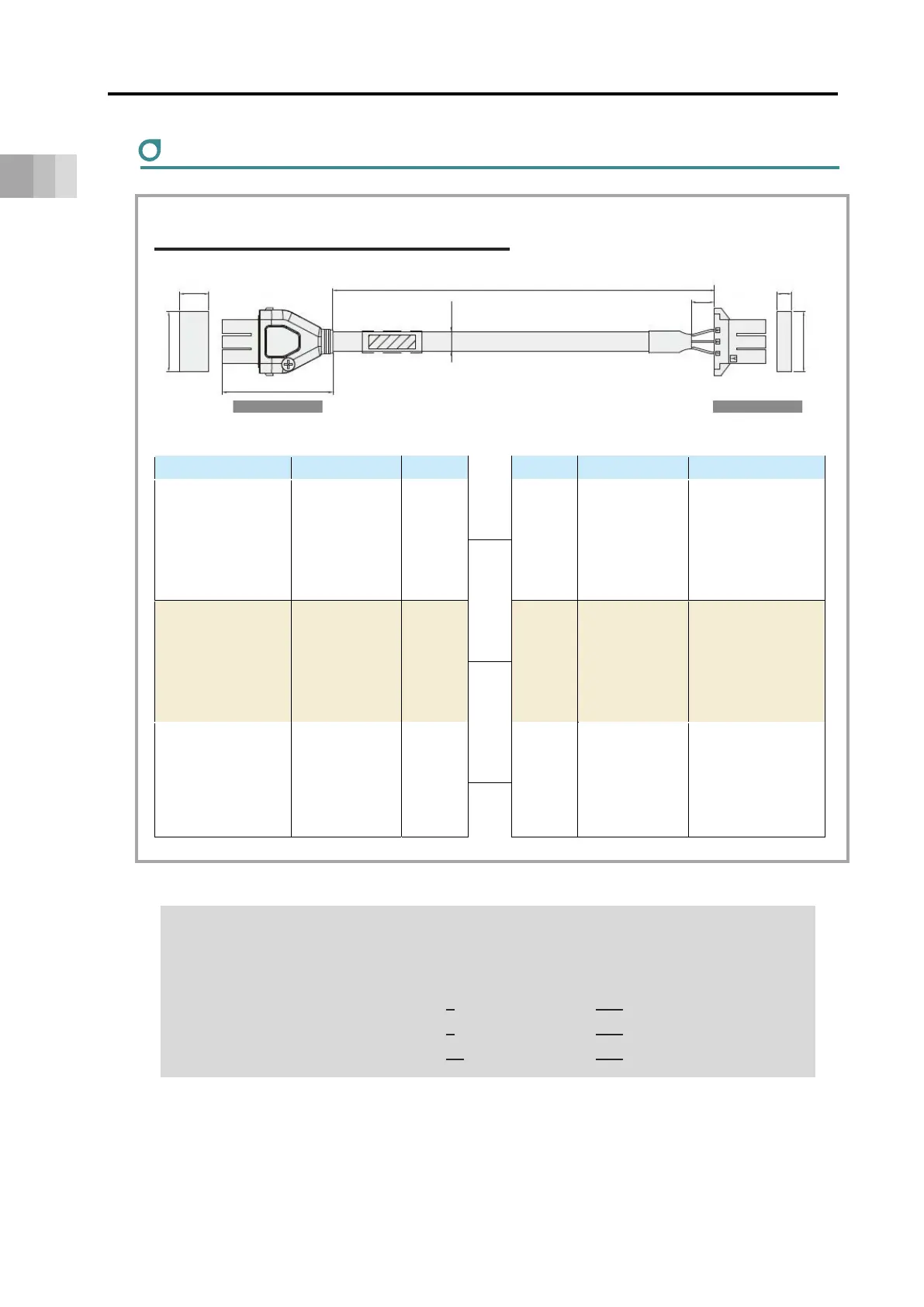

Motor power supply cable
Model:
EC-PW□□□-RB
Color Signal name Pin No.
Pin No. Signal name Color
Red (AWG18) MP 1 1 MP Red (AWG18)
Black (AWG18) MN 2 2 MN Black (AWG18)
Green/Yellow
(AWG18)
PE 3 3 PE
Green/Yellow
(AWG18)
● The cable length is available from 1 m to 10 m.
Specify the length in increments of 1 m.
● The following shows a sample model number.
Cable length 1 m → CB-EC-PW010-RB
Cable length 3 m → CB-EC-PW030-RB
Cable length 10 m → CB-EC-PW100-RB
Minimum bending radius r = 40 mm or more (for movable use)
* Robot cable is standard for this model.
Actuator side
(29.2)
(φ6.6)
(29.2)
L
(14)
15
(7.2)
CN2CN1
PSA-200 side
(55.7)
