3.4 Wiring connections (for connectors)
3-22
3. Wiring
3.4 Wiring connections (for connectors)
(1) motor drive DC power supply PSA-200
Power supply connector
Follow the processes below to set up a connectivity of power supply cables for 100 V AC or
200 V AC.
1) Loosen the terminal screw with using such as a slotted screwdriver to open up the inlet.
2) Reveal the sheath for 7 mm on the cable tip that satisfies the cable diameter complies the
specification shown in the table below and put it in the inlet.
3) Tighten the terminal screw with using such as a slotted screwdriver. The inlet closes and affixes
the wire.
4) Connect all the wires in the same manner and insert the enclosed connector to the power
supply connector.
Pin
No.
Connector
labeled name
Contents Applicable cable diameter
1 L1
Motor AC power input
KIV 2.0 mm
2
(AWG14)
2 L2
3 L1C
Control AC power input
KIV 0.75 mm
2
(AWG18)
4 L2C
5 NC Unconnected
6 PE Protective ground line
KIV 2.0 mm
2
(AWG14)

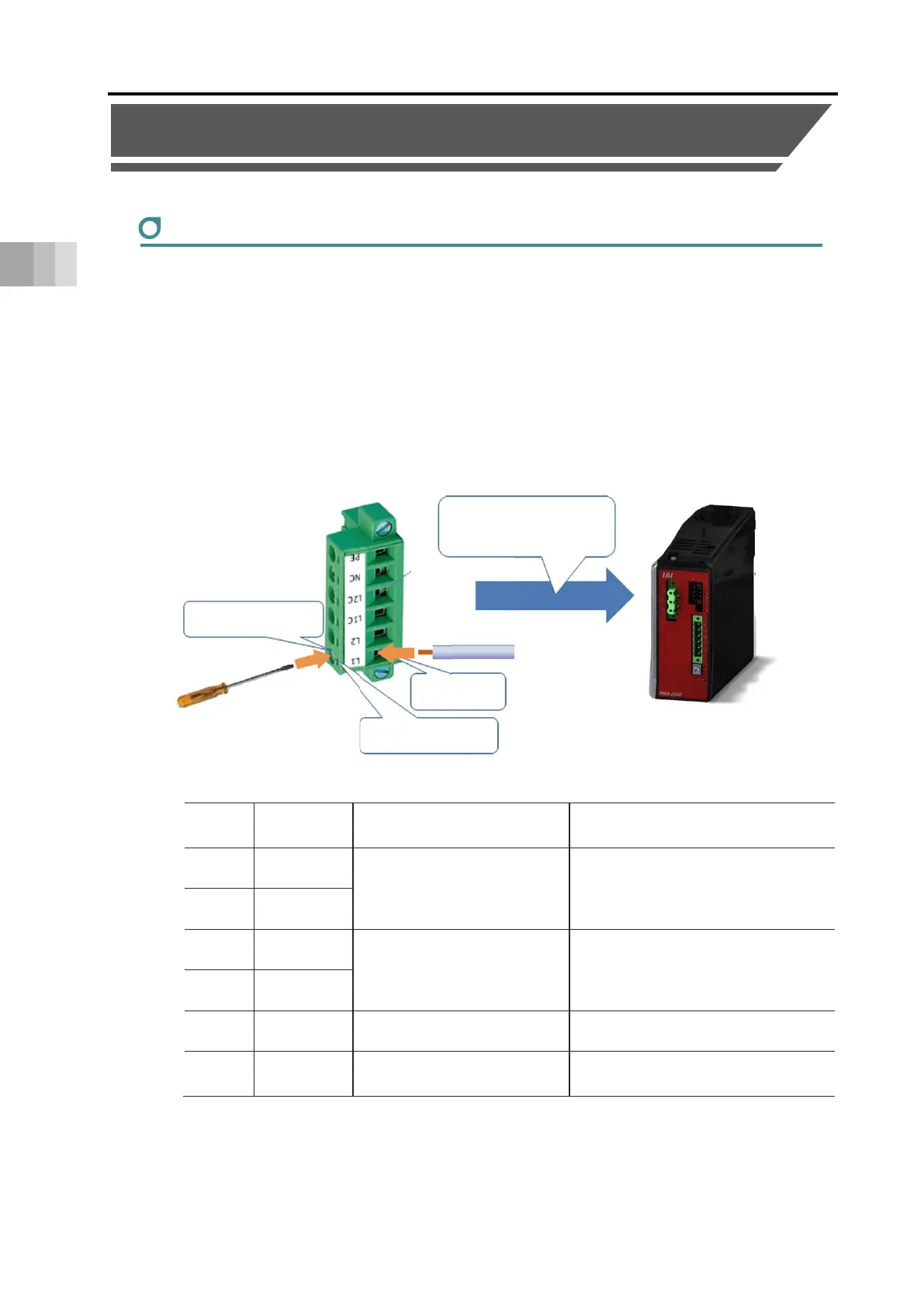

1) Loosen the screw
with a slotted screwdriver
2) Insert wire
Wire inlet
3) Tighten the screw with
a slotted screwdriver
4) Plug in the enclosed connector to
the power connector on the
controller side
