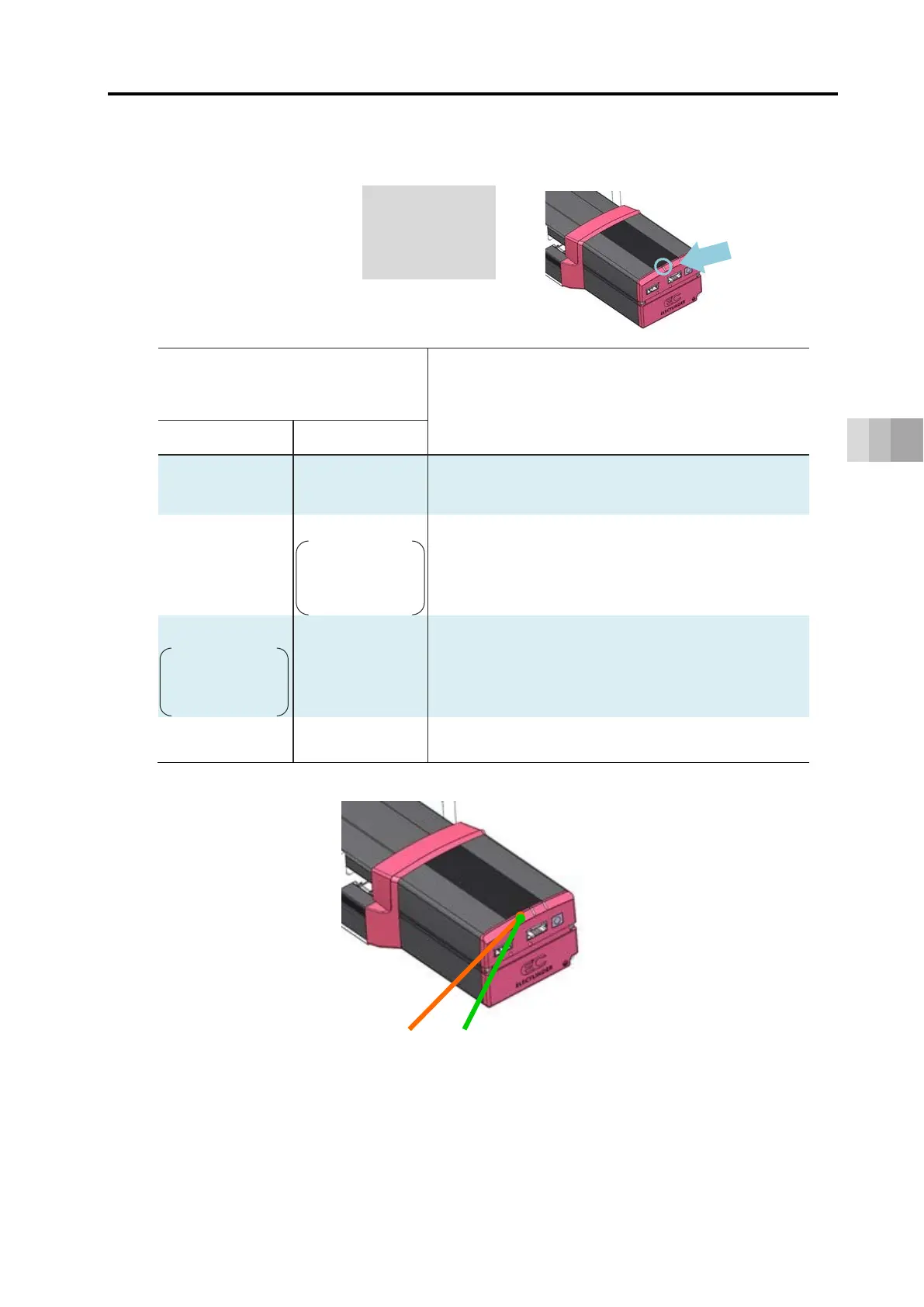

7.1 Troubleshooting confirmations

7-3

7. Troubleshooting

(3) Check in status LED (Wireless status LED) on ELECYLINDER unit

○

: Light ON

: Light OFF

★

: Blinking

Wireless status LED

(Left side as seen from the

motor side)

Wireless status

Green Red

× ×

Wireless not connected (transmitting monitor data)

Connecting from wired teaching pendant

★

ON 200 ms /

OFF 200 ms

alternate blinking

Wireless hardware error

★

ON 150 ms /

OFF 150 ms

alternate blinking

× Connecting through wireless

○

○ Initializing when power comes ON

Left side as seen from the motor side

Green Red
