8.5 Greasing method
8-15
8. Maintenance and Inspection

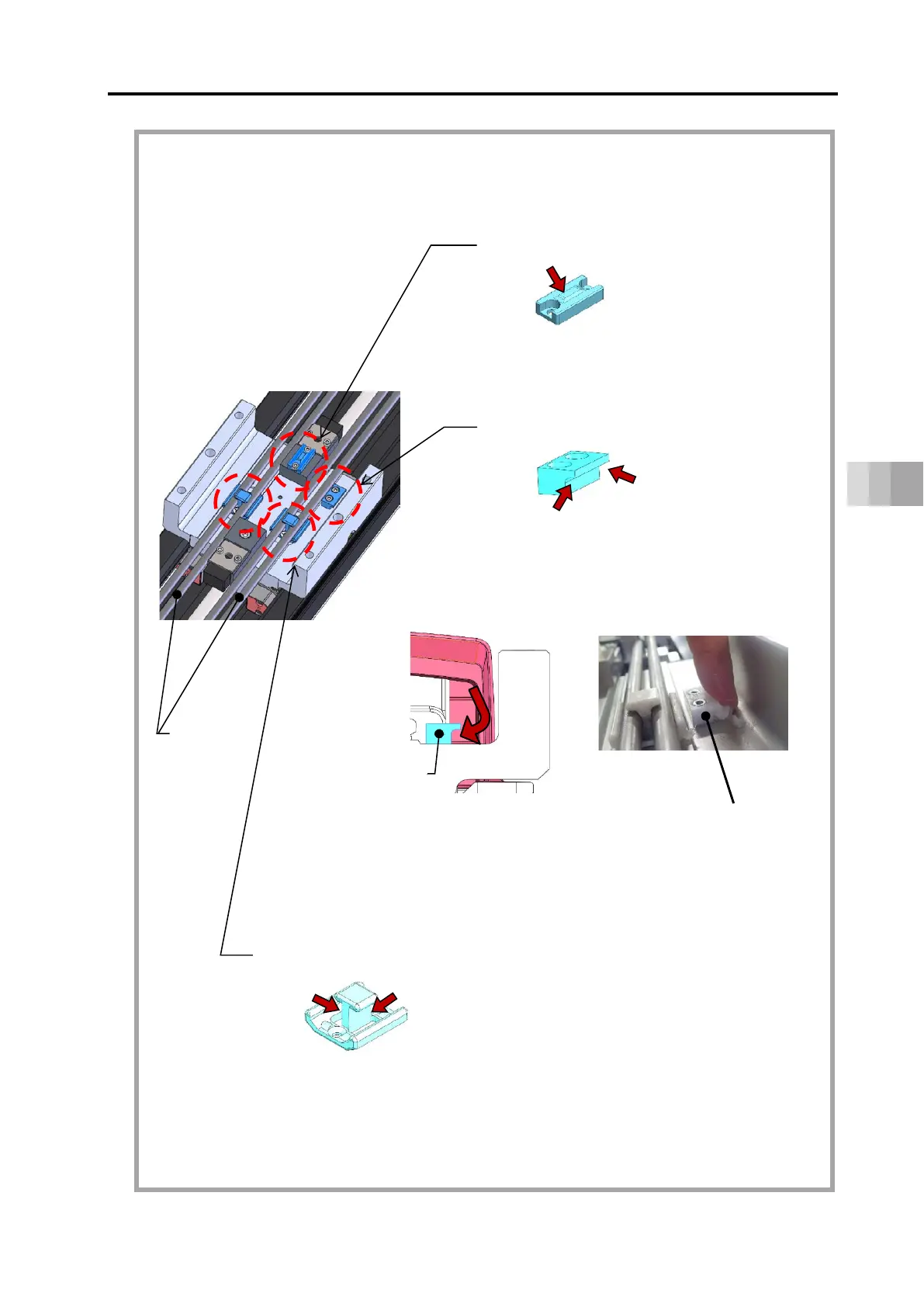

<S13X and S15X> Screw cover support : 1 Place
Pipe support : 2 Places
Screw cover support B : 1 Place
Apply grease on the top of the
screw cover support.
[Reference for supply: 1 cc]
Apply grease on the corner at the back.
Apply grease as you squeeze it on
from both ends.
[Reference for supply: 1 cc]
Apply grease on the sliding part with the link bar.
[Reference for supply: 1 cc (2 Places)]
Screw cover support (1 Place)
Screw cover support B (1 Place)
Pipe support (2 Places)
Link bar
Supply grease on the back side
of the convex.
Apply grease as you squeeze it
on the surface.
[Reference for supply: 1 cc]
Screw cover support B
Screw cover
support B
To Next Page
