8.5 Greasing method
8-17
8. Maintenance and Inspection

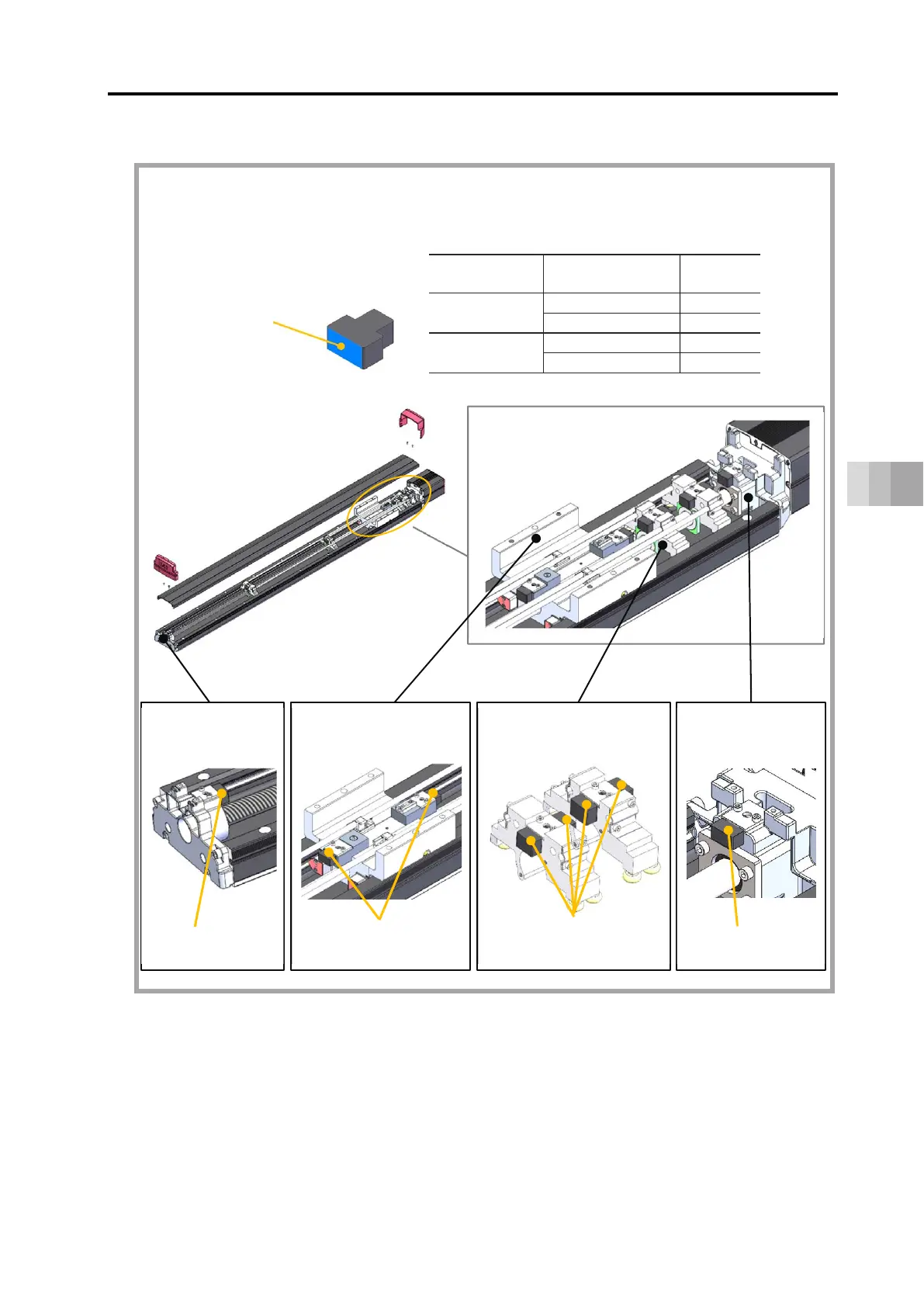

[5] Greasing method: Cushion
For S13X and S15X, clean the shock absorbing surface on the intermediate support
cushion, and then apply grease thinly on the surface with hand.
Number of cushions used
Body model Stroke
Body
model
EC-S13X□
800 to 1000 8 pcs
1050 to 2000 12 pcs
EC-S15X□
1000 to 1200 8 pcs
1250 to 2500 12 pcs
[Rear bracket
part]
Cushion
(1 pc)
[Front
bracket part]
Cushion
(1 pc)
[Support bracket
part]
Cushion
(4 or 8 pcs)
[Slider part]
Cushion
(2 pcs)
Shock absorbing
surface on intermediate
su
pp
ort cushion
