8.6 How to replace components

8-43

8. Maintenance and Inspection

3) Put the black connector on the fan unit for replacement to the connector on the top

of the power supply unit.

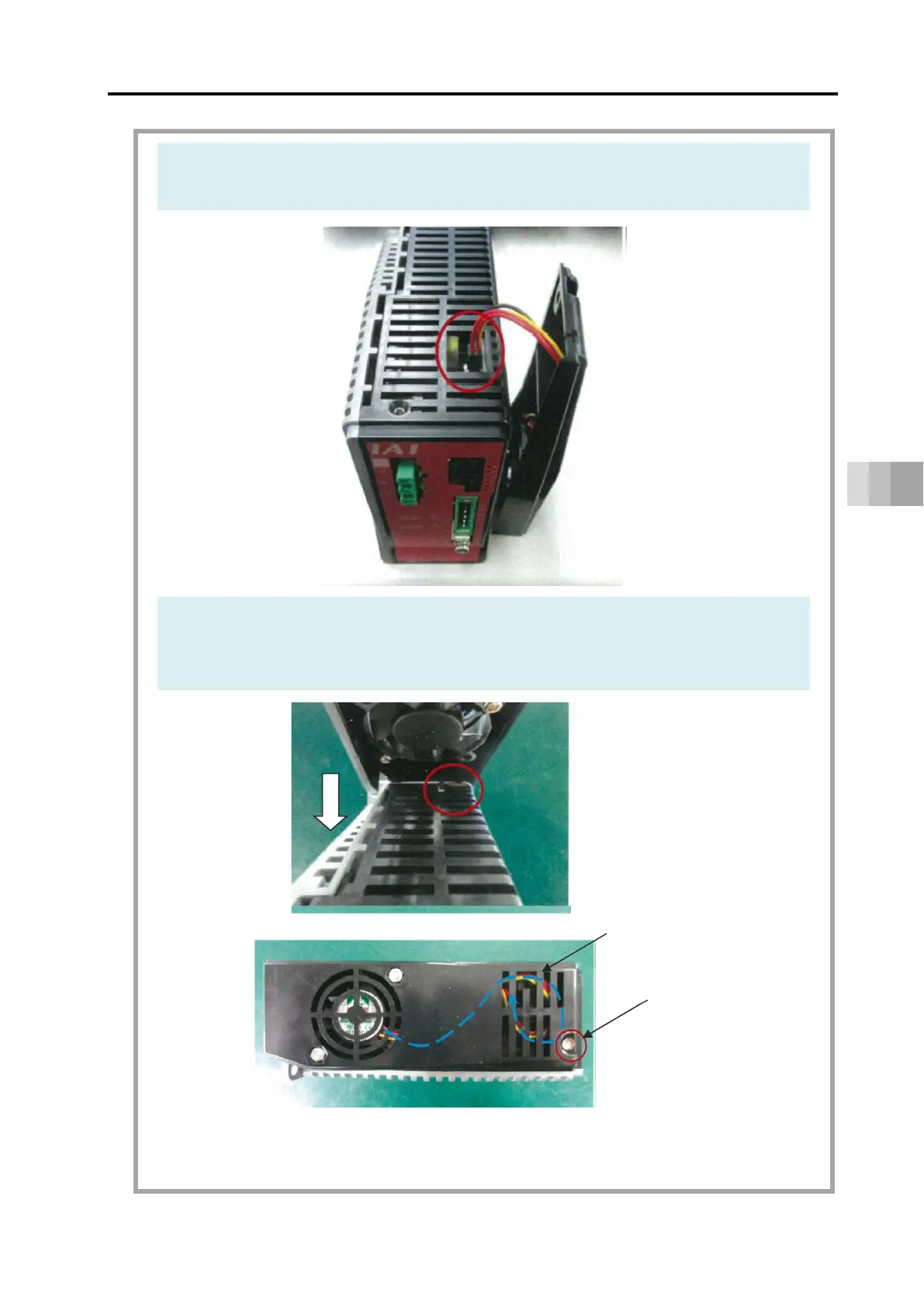

4) Set the fan unit cables referring to the figure below, hook up the flange at the back

to the hole on the power supply unit.

Affix the fan unit with the hex socket head cap screws.

(Note) Make sure that the cables do not come out to the front from the slits on the

fan unit.

Hex socket head

cap screw

Path of cables
